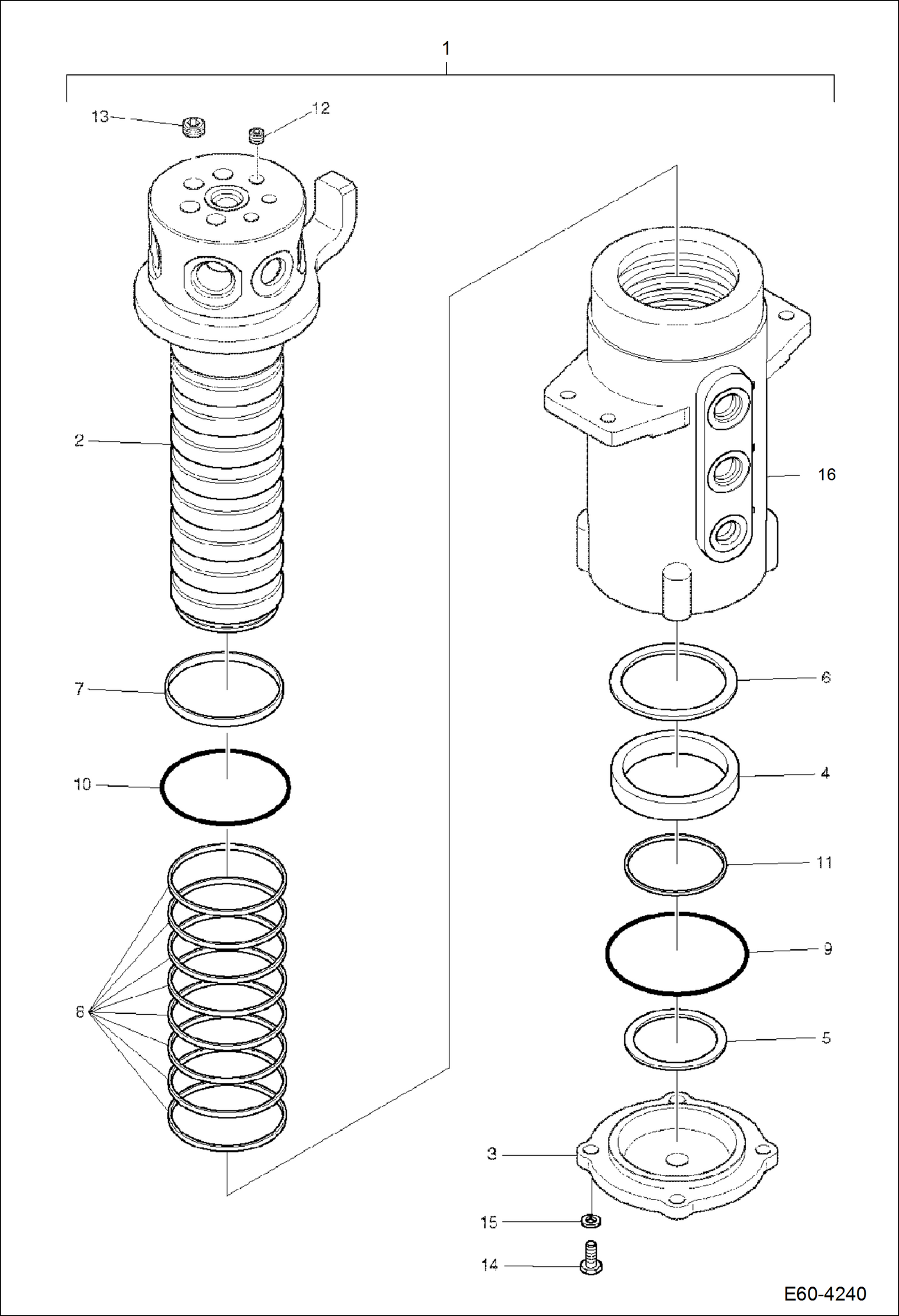

Запчасти Bobcat E60 SWIVEL JOINT HYDRAULIC SYSTEM

1

7006067

SWIVEL, ASSY W/Ref. 2-16

2

SHAFT ASSY NLA - Order Ref. 1

3

COVER NLA - Order Ref. 1

4

SPACER NLA - Order Ref. 1

5

SHIM NLA - Order Ref. 1

6

SHIM NLA - Order Ref. 1

7

DUST, SEAL NLA - Order Ref. 16

8

SEAL, SLIPPER NLA - Order Ref. 16

9

7007943

O-RING

10

7024430

O-RING Was 7007927 - B

11

7007879

RING RETAINER

12

7004673

PLUG

13

7004674

PLUG PT3/8

14

7007629

BOLT

15

7007835

WASHER SPRING

16

FRAME NLA - Order Ref. 1

16

7007413

KIT, SEAL W/Ref. 7-10
