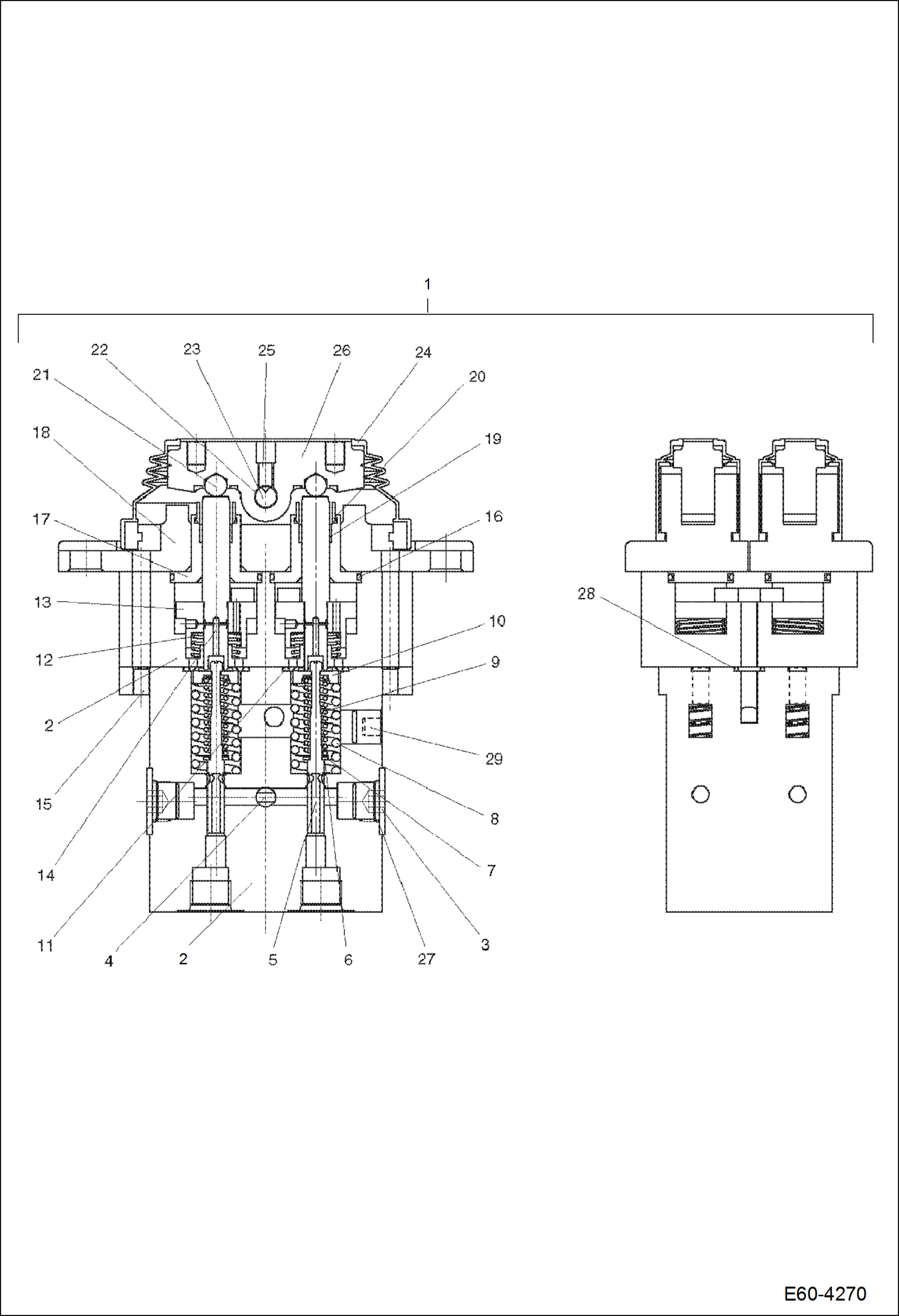

Запчасти Bobcat E60 PEDAL VALVE - TRAVEL HYDRAULIC SYSTEM

1

7008191

VALVE, PEDAL W/Ref. 2-29

2

CASING 1 NLA - lower - Order Ref. 1

2

CASING 2 NLA - upper - Order Ref. 1

3

7004727

PLUG

4

7003955

PLUG

5

7007027

SPOOL

6

7007028

WASHER

7

7007029

WASHER

8

7007030

SPRING

9

7007031

SPRING

10

7007032

SPRING SEAT

11

7007913

O-RING Was 7007912 - B

12

7007033

SPRING

13

7007034

PISTON

14

7007035

ROD PUSH

15

7007730

BOLT SOCKET

16

7004663

O-RING

17

7007036

PLUG

18

7008285

COVER

19

7007038

SEAL

20

7007039

CAP GREASE

21

7007871

BALL STEEL

22

7004457

BUSHING

23

7007040

SHAFT CAM

24

7007041

DIAPHRAGM BELLOWS

25

7007791

BOLT

26

7007042

CAM

27

7007906

O-RING

28

7007903

O-RING

29

7004673

PLUG
