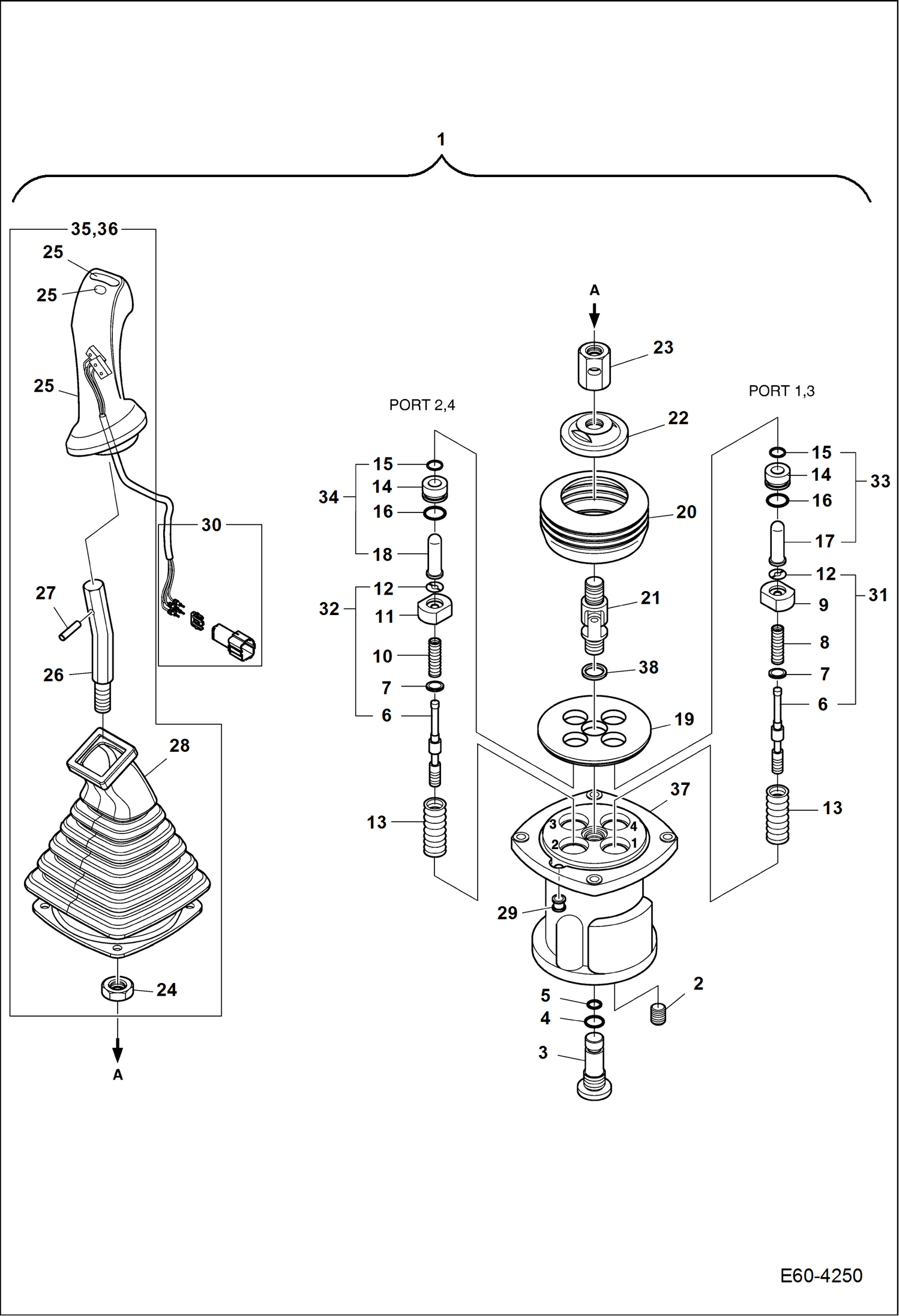

Запчасти Bobcat E60 JOYSTICK (LH - RH) HYDRAULIC SYSTEM

1

7006768

JOYSTICK LH W/Ref. 2-37

1

7006769

JOYSTICK RH W/Ref. 2-37

2

7004671

PLUG PT 1/8

3

7006852

PLUG PF3/8

4

7007909

O-RING

5

7007931

ORING

6

SPOOL NLA - Order Ref. 31 for ports 1 & 3 and Ref. 32 for ports 2 & 4

7

7003716

SHIM

8

SPRING NLA - Order Ref. 31

9

7003837

SEAT SPRING

10

SPRING NLA - Order Ref. 32

11

SEAT, SPRING NLA - Order Ref. 32

12

7003927

STOP

13

7003850

SPRING

14

PLUG NLA - Order Ref. 33 for ports 1 & 3 and Ref. 34 for ports 2 & 4

15

7006819

SEAL ROD

16

7007913

O-RING

17

7003840

ROD PUSH

18

ROD, PUSH NLA - Order Ref. 34

19

7003819

PLATE

20

7003750

BOOT

21

7003749

COUPLER JOINT ASSY

22

7003822

PLATE SWASH

23

7003733

NUT HEX

24

7007800

NUT M14

25

7006820

HANDLE ASSY LH

25

7003752

CAP PEANUT

25

7003751

CAP ROUND

25

7006821

HANDLE ASSY RH

25

7003752

CAP PEANUT

26

7007417

BAR HANDLE

27

7007859

PIN SPRING

28

7006822

BOOT

29

7003711

BUSHING

30

7006823

CONNECTOR ASSY

31

7007016

KIT SPOOL PORT 1 & 3 Ref. 6-9 & 12

32

7007017

KIT SPOOL PORT 2 & 4 Ref. 6-7 & 10-12

33

7007552

PLUG KIT PORT 1 & 3 Ref. 14-17

34

7007553

PLUG KIT PORT 2 & 4 Ref. 14-16 & 18

35

7007554

HANDLE KIT LH Ref. 24-28

36

7007555

HANDLE KIT RH Ref. 24-28

37

CASE NLA - Order Ref. 1
