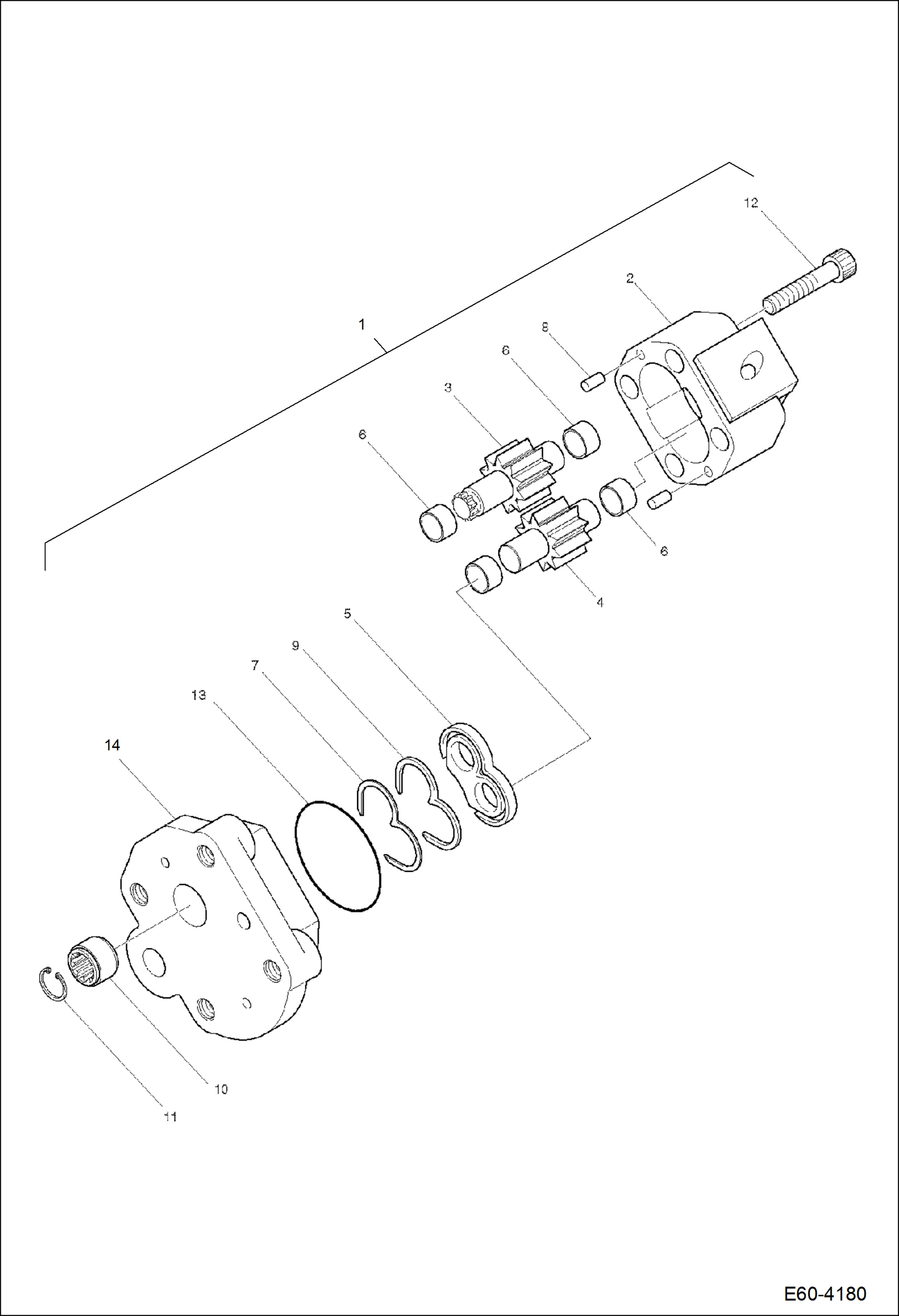

Запчасти Bobcat E60 HYDRAULIC PUMP (Gear Pump 2) HYDRAULIC SYSTEM

1

7004330

PUMP GEAR

2

7004349

HOUSING

3

7004355

GEAR DRIVE

4

7004357

GEAR IDLE

5

7004387

PLATE

6

7004213

BEARING

7

7004239

RING BACK-UP

8

7007849

PIN PARALLEL

9

7004242

RING SQUARE

10

7004393

COUPLER

11

7007881

RING RETAINING

12

7007740

BOLT SOCKET M8X45

13

7004651

O-RING

14

7004447

FRAME
