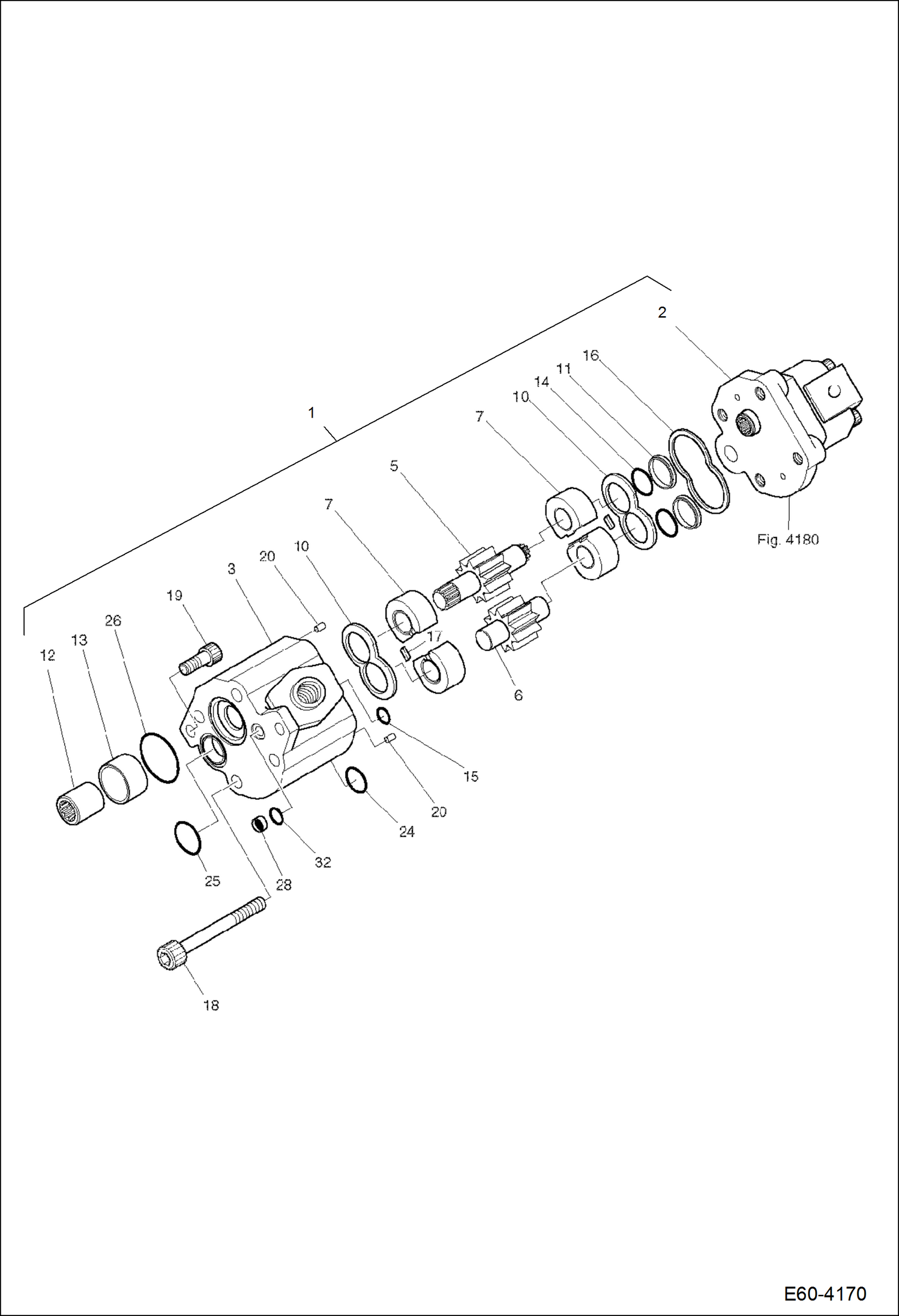

Запчасти Bobcat E60 HYDRAULIC PUMP (Gear Pump 1) HYDRAULIC SYSTEM

1

7006963

PUMP GEAR

2

7004330

PUMP GEAR See Illustration HYDRAULIC PUMP/ E60-4180

3

CASE, GEAR NLA - Order Ref. 1

5

7006955

GEAR DRIVING

6

7006954

GEAR IDLE

7

7006961

PLATE SIDE ASSY

10

7004391

PLATE

11

7004416

GUIDE

12

7004392

COUPLER

13

7004369

BUSHING

14

7004220

O-RING

15

7004644

O-RING

16

7004240

RING COUPLER

17

7004241

RING COUPLER

18

7007756

BOLT M10X90

19

7007747

BOLT HEXSOCKET M10X25

20

7007849

PIN PARALLEL

24

7004647

O-RING

25

7004648

O-RING

26

7004650

O-RING

28

7004443

FILTER

32

7004646

O-RING
