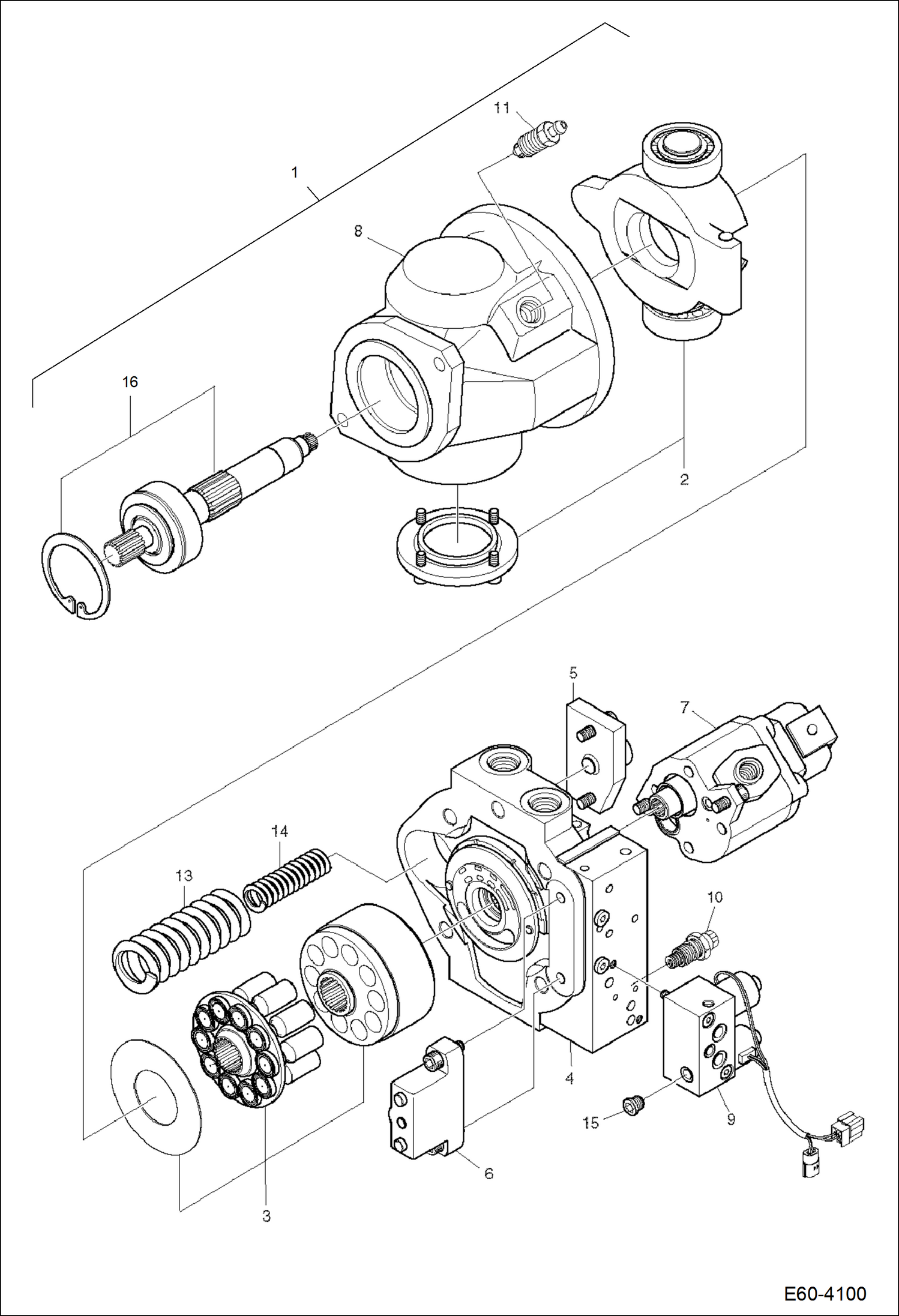

Запчасти Bobcat E60 HYDRAULIC PUMP (Piston Pump) HYDRAULIC SYSTEM

1

7006322

PUMP MAIN W/Ref. 2-16

2

7004385

BRACKET HANGER ASSY See Illustration HYDRAULIC PUMP/ EM9185

3

7006964

ROTATOR ASSY See Illustration HYDRAULIC PUMP/ EM9186

4

7006967

COVER ASSY See Illustration HYDRAULIC PUMP/ E60-4140

5

7007447

SPRING ASSY See Illustration HYDRAULIC PUMP/ E60-4150

6

7007449

PISTON ASSY See Illustration HYDRAULIC PUMP/ E60-4160

7

7006963

PUMP GEAR See Illustration HYDRAULIC PUMP/ E60-4170

8

7004348

HOUSING

9

7006962

SOLENOID VALVE ASSY See Illustration HYDRAULIC PUMP/ E60-4190

10

7006960

VALVE RELIEF

11

7004398

VALVE AIR VENT

13

7007448

SPRING

14

7004197

SPRING

15

7004297

PLUG ASSY PF1/4

16

7006966

SHAFT ASSY See Illustration HYDRAULIC PUMP/ EM9184
