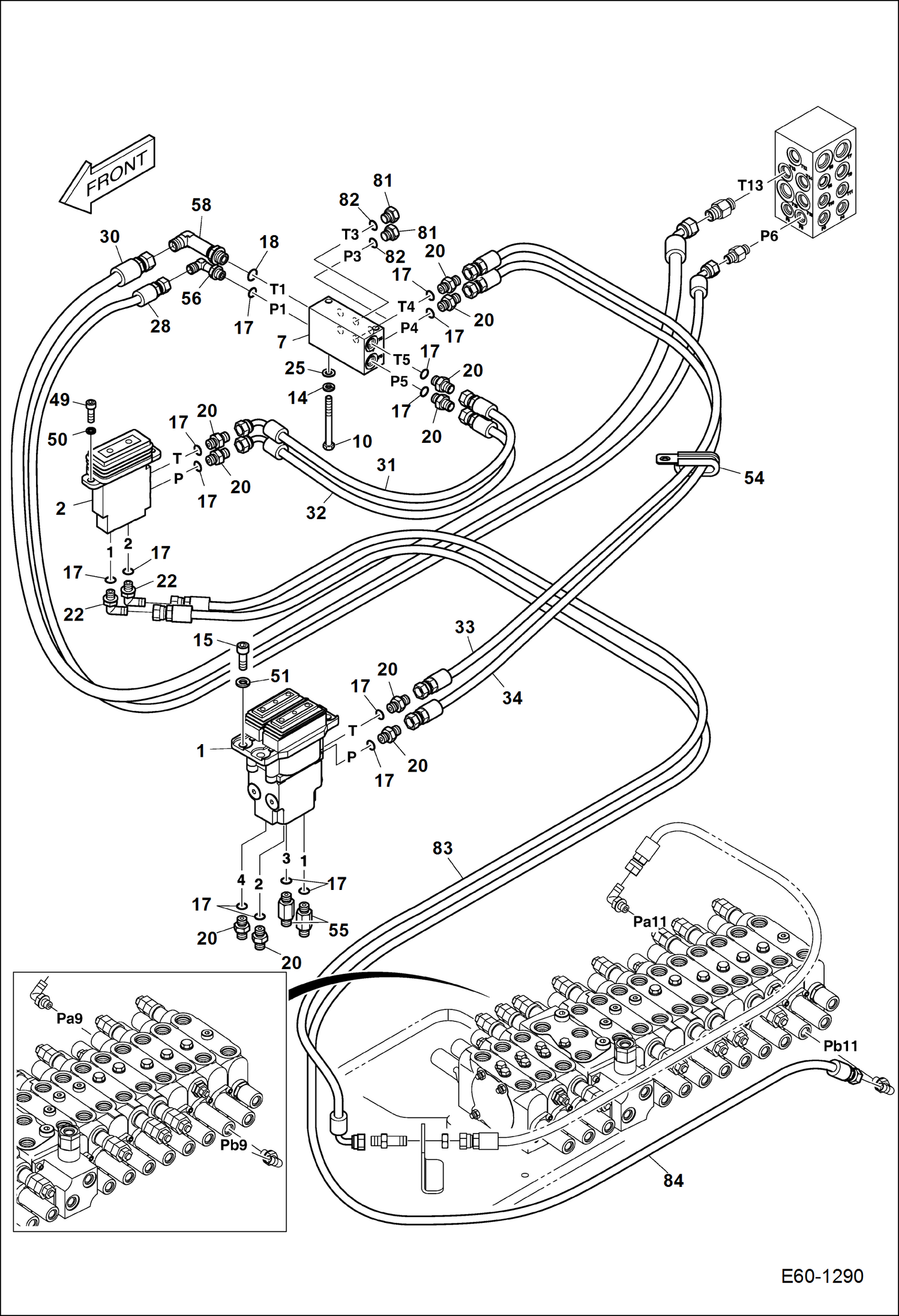

Запчасти Bobcat E60 HYDRAULIC PILOT CIRCUITRY (Pedal) HYDRAULIC SYSTEM

1

7008191

VALVE, PEDAL See Illustration PEDAL VALVE - TRAVEL/ E60-4270

2

7005669

VALVE PEDAL See Illustration PEDAL VALVE/ E60-4280

7

7006428

BLOCK

10

7007667

BOLT

14

7007834

WASHER SPRING

15

7007748

BOLT SOCKET M10X1.5X30

17

7007906

O-RING

18

7007909

O-RING

20

7004683

ADAPTER

22

7004713

ELBOW

25

7007816

WASHER

28

7005274

HOSE PF1/4-1180L

30

7008171

HOSE

31

7005338

HOSE

32

7005338

HOSE

33

7005496

HOSE

34

7005496

HOSE

49

7007737

BOLT

50

7007842

WASHER SPRING

51

7007835

WASHER SPRING

54

7003904

CLIP

55

7004702

ADAPTER

56

7004721

ELBOW

58

7004722

ELBOW

81

7004732

PLUG

82

7007906

O-RING

83

7005313

HOSE PF1/4-1300L

84

7005485

HOSE
