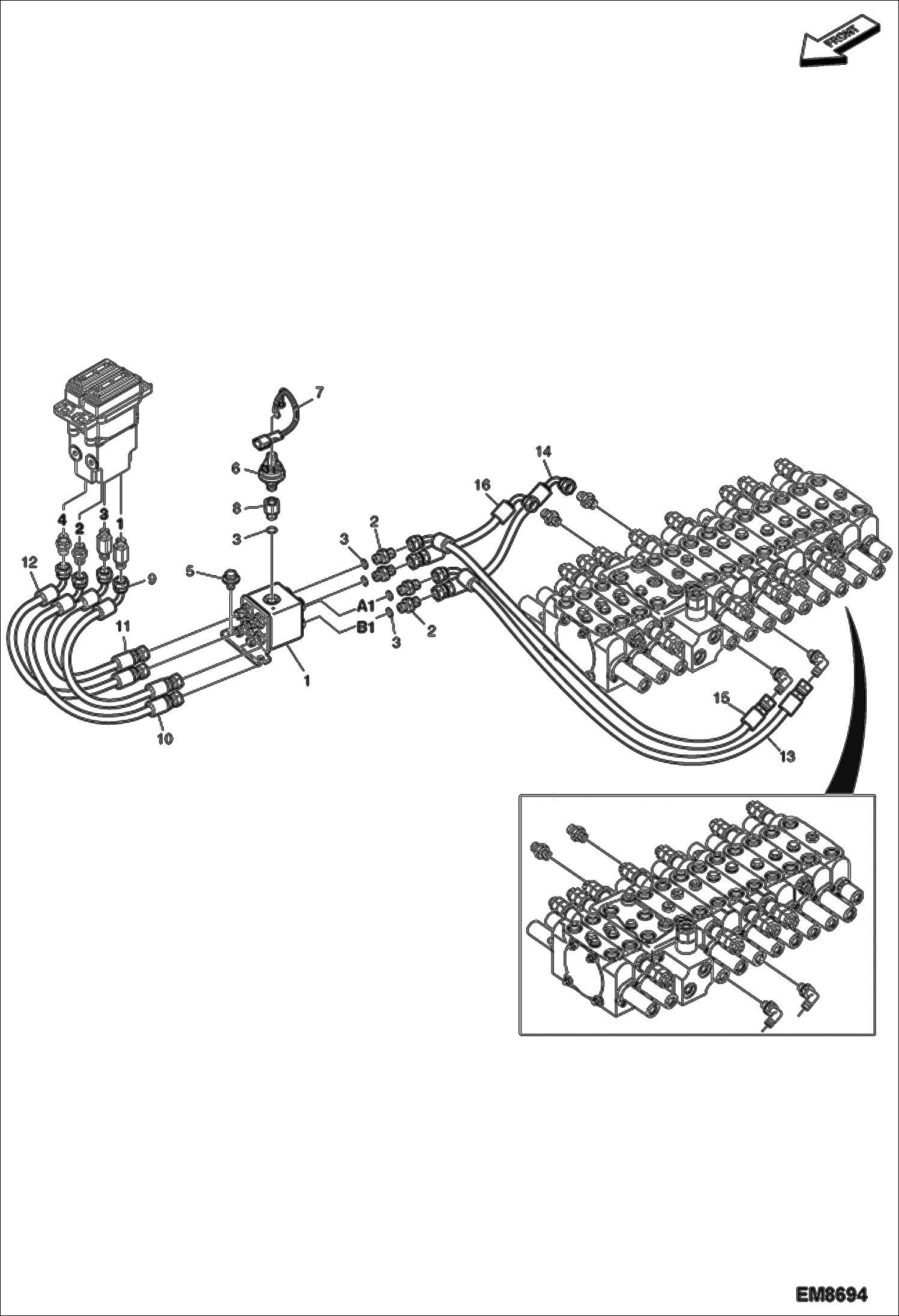

Запчасти Bobcat E60 HYDRAULIC PILOT CIRCUITRY (Travel W/Motion Alarm) (Optional) HYDRAULIC SYSTEM

1

7008274

VALVE, SHUTTLE

2

7004683

ADAPTER

3

7007906

O-RING

5

7005129

BOLT, SET

6

7023332

SWITCH, PRESS Was 7005031 - B

7

7005012

HARNESS JOINT

8

7005555

REDUCER

9

7005349

HOSE 380L

10

7005336

HOSE 400L

11

7005349

HOSE 380L

12

7005336

HOSE 400L

13

7005315

HOSE, PF1/4-620L

13

7021851

HOSE HYDRAULIC ASSY

14

7005358

HOSE PF1/4-330L

14

7005305

HOSE

15

7005373

HOSE 590L

15

7005315

HOSE, PF1/4-620L

16

7005448

HOSE 245L

16

7021850

HOSE HYDRAULIC ASSY
