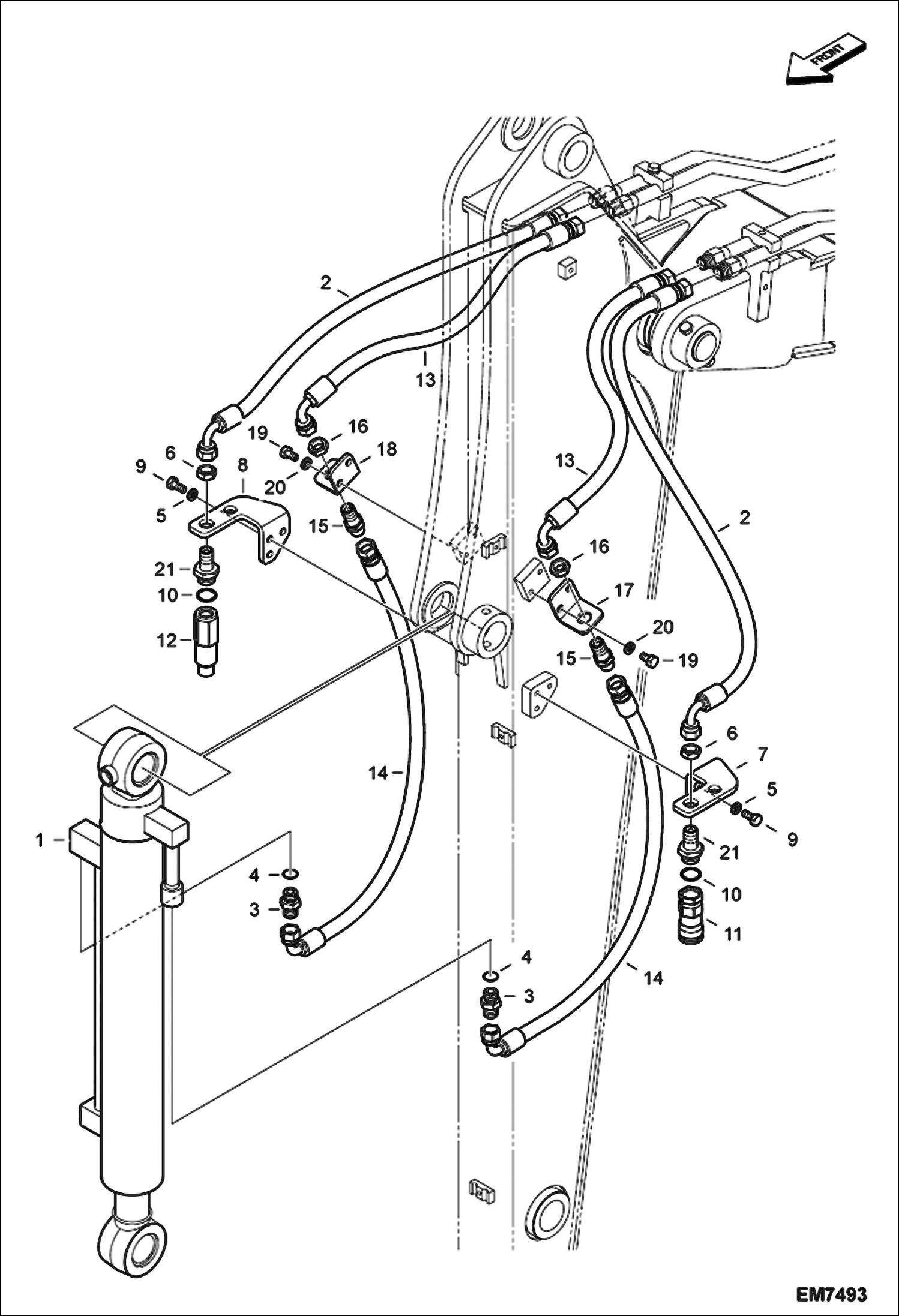

Запчасти Bobcat E55W HYDRAULIC CIRCUITRY (Arm 1.9 m) HYDRAULIC SYSTEM

1

7019008

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ EX006144 Was 7005718 - D

2

7010182

HOSE

3

7004699

ADAPTER

4

7007911

O-RING

5

7007835

WASHER SPRING

6

7003876

NUT

7

7010177

BRACKET

8

7010178

BRACKET

9

7007628

BOLT

10

7009947

O-RING

11

6672960

COUPLER, FF FEMALE

12

6674688

COUPLER, FF MALE

13

7010565

HOSE

14

7010183

HOSE

15

7005566

ADAPTER

16

7003876

NUT

17

7005925

BRACKET LH

18

7005926

BRACKET RH

19

7007626

BOLT

20

7007835

WASHER SPRING

21

7010173

ADAPTER
