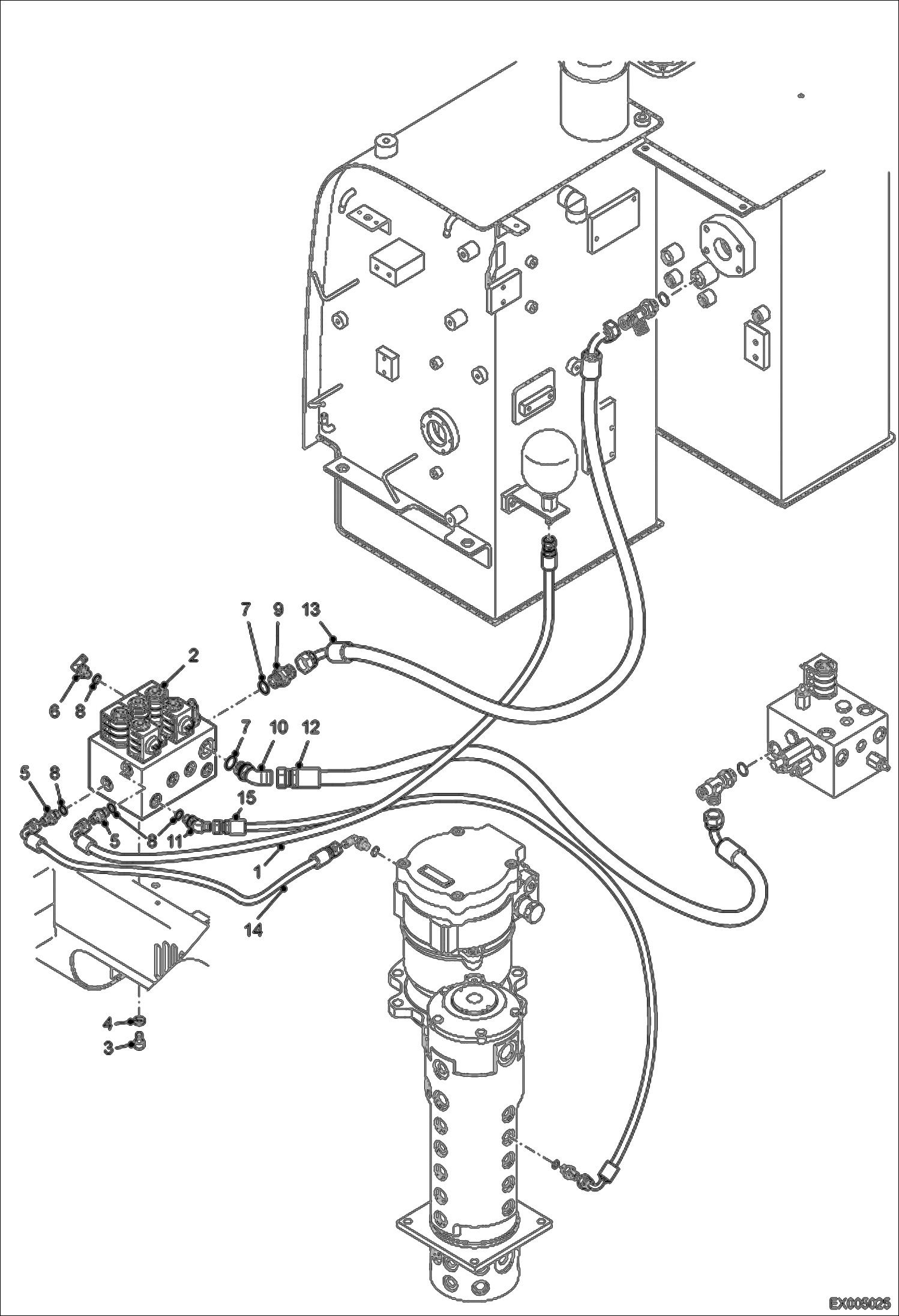

Запчасти Bobcat E55W HYDRAULIC CIRCUITRY (Brake Piping Part 3) HYDRAULIC SYSTEM

1

7005296

HOSE

2

7005931

VALVE PILOT SUPPLY See Illustration PILOT SUPPLY VALVE/ EX006140

3

7007744

BOLT

4

7007835

WASHER SPRING

5

7004683

ADAPTER

6

7004713

ELBOW

7

7007911

O-RING

8

7007906

O-RING

9

7004699

ADAPTER

10

7004757

ELBOW

11

7004759

ELBOW

12

7005409

HOSE

13

7005255

HOSE

14

7005359

HOSE PF1/4-700L

15

7005328

HOSE PF1/4-980L
