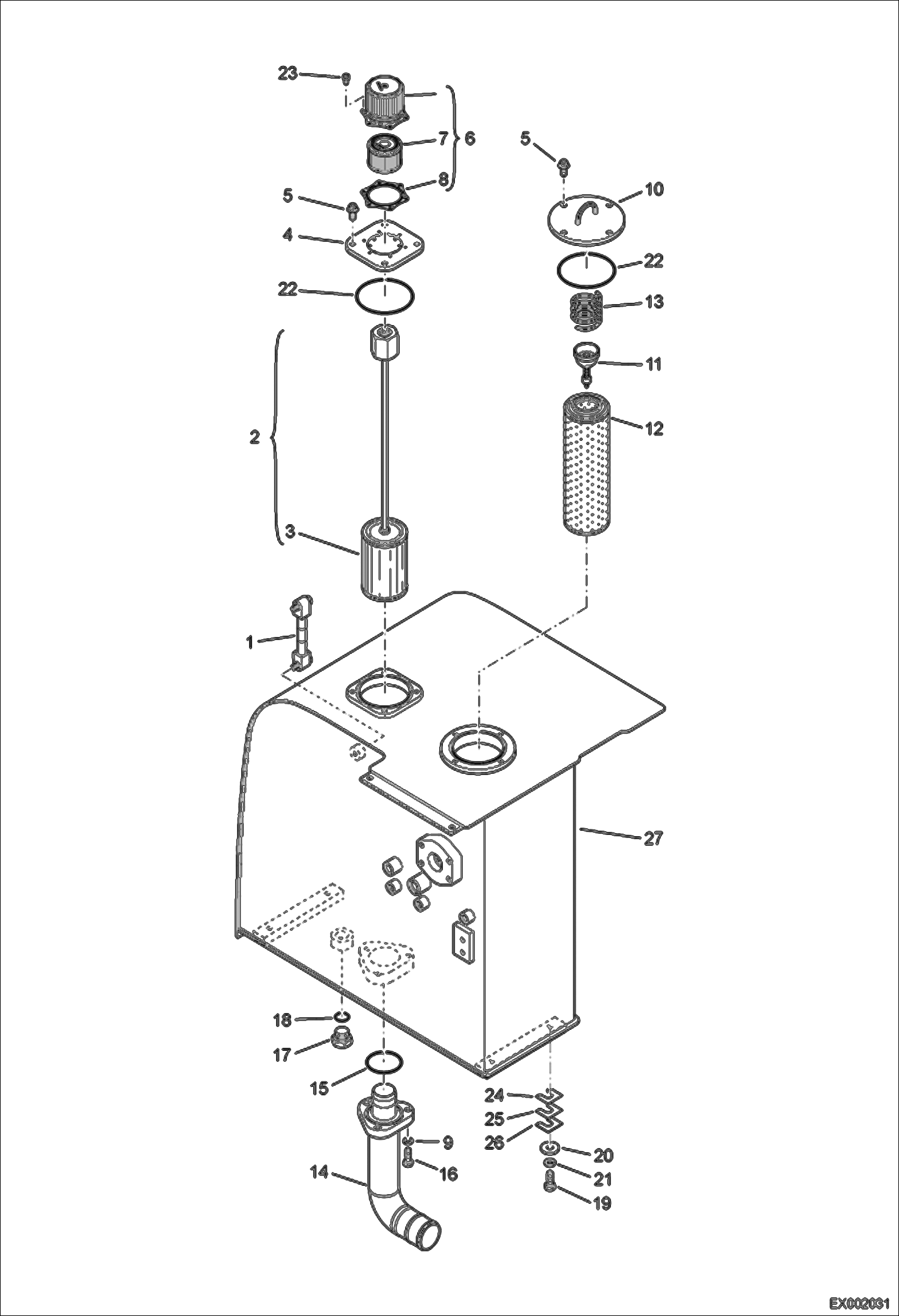

Запчасти Bobcat E55W HYDRAULIC CIRCUITRY (Oil Tank) HYDRAULIC SYSTEM

1

7003868

GAUGE LEVEL

2

7005889

FILTER SUCTION W/Ref. 3

3

7004866

FILTER STRAINER SUCTION

4

7004999

COVER TANK

5

7005652

BOLT M10X1.5X22

6

7006509

FILTER BREATHER AIR W/Ref. 7-8

7

7006806

FILTER, AIR BREATHER

8

7006946

GASKET

9

7007835

WASHER SPRING

10

7004998

COVER TANK

11

7004861

VALVE BYPASS

12

7004883

FILTER RETURN

13

7004594

SPRING

14

7005875

TUBELINE SUCTION

15

7004635

O-RING

16

7007669

BOLT Was 7007668 - A

17

7004733

PLUG

18

7007916

O-RING

19

7007640

BOLT

20

7004473

WASHER M12

21

7007836

WASHER SPRING M12

22

7007950

O-RING

23

7004545

BOLT

24

7004504

SHIM T=1.0 1,0 mm

25

7004505

SHIM T=0.6 0,6 mm

26

7004506

SHIM

27

7005788

TANK OIL
