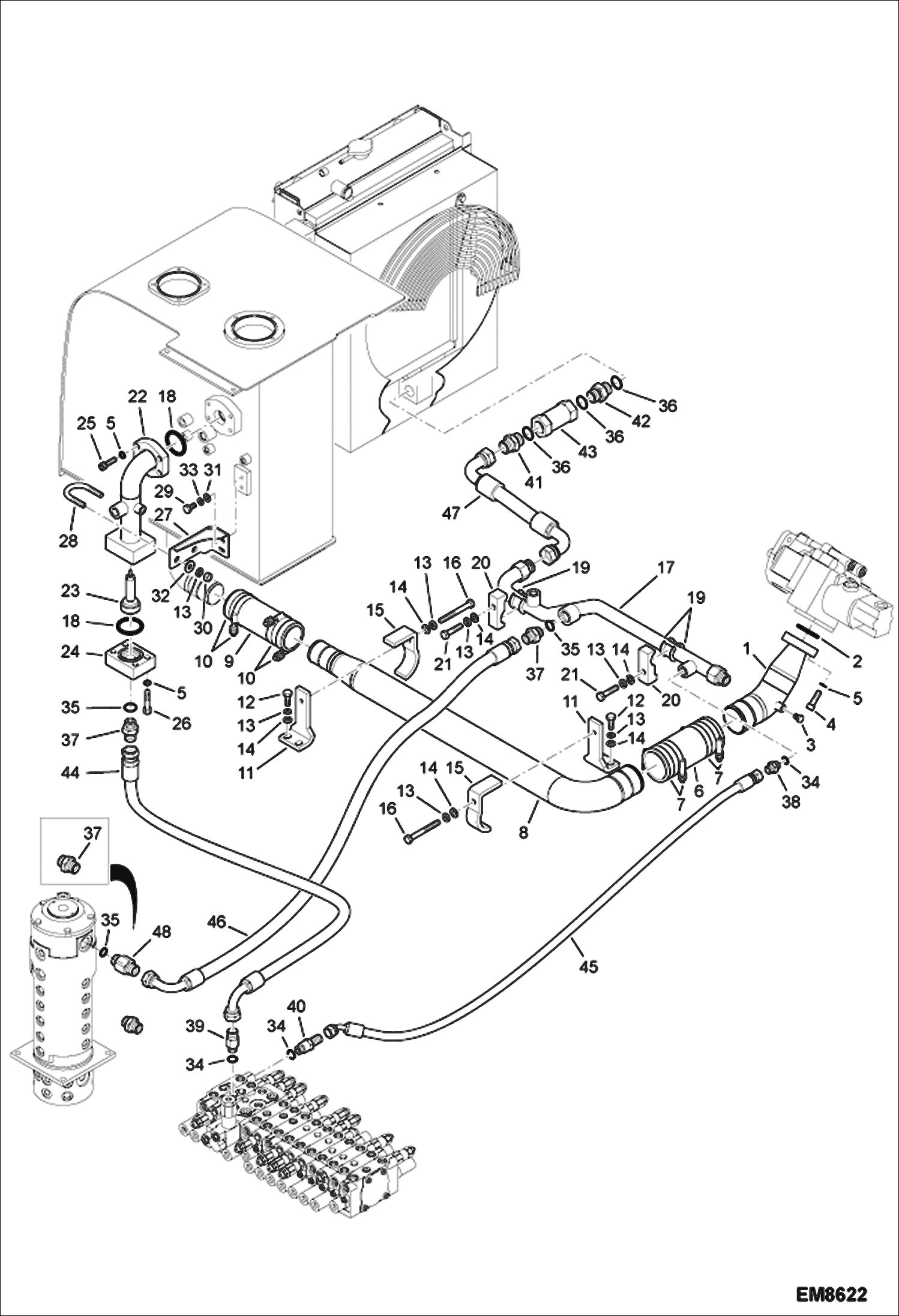

Запчасти Bobcat E55W HYDRAULIC CIRCUITRY (Supply & Return) HYDRAULIC SYSTEM

1

7005835

TUBELINE SUCTION

2

7004634

O-RING

3

7004747

PLUG

4

7007762

BOLT SOCKET M12X1.75X40

5

7007845

WASHER SPRING

6

7004798

HOSE RUBBER

7

7007986

CLAMP HOSE

8

7005836

TUBELINE SUCTION

9

7004800

HOSE RUBBER

10

7007985

CLAMP HOSE

11

7005838

BRACKET

12

7007640

BOLT

13

7007836

WASHER SPRING M12

14

7007820

WASHER SPRING

15

7004586

CLAMP

16

7007692

BOLT

17

7005837

TUBELINE

18

7004633

O-RING

19

7003926

PAD

20

7003909

CLAMP

21

7007686

BOLT Was 7007685 - D

22

7005866

TUBELINE

23

7004859

VALVE BYPASS

24

7005872

BLOCK

25

7007761

BOLT M12X1.75X35

26

7007764

BOLT SOCKET

27

7005873

BRACKET

28

7004528

U-BOLT

29

7007626

BOLT

30

7007799

NUT

31

7004472

WASHER

32

7004471

WASHER

33

7007835

WASHER SPRING

34

7007911

O-RING

35

7007917

O-RING

36

7007920

O-RING

37

7004676

ADAPTER

37

7004676

ADAPTER

38

7004699

ADAPTER

39

7005549

ADAPTER

40

7004749

ADAPTER

41

7005560

ELBOW Was 7004687 - A

42

7005550

ADAPTER

43

7004966

VALVE BYPASS

44

7004780

HOSE 1300L

45

7004782

HOSE 680L

46

7005183

HOSE 745L

47

7005211

HOSE

48

7004679

ADAPTER
