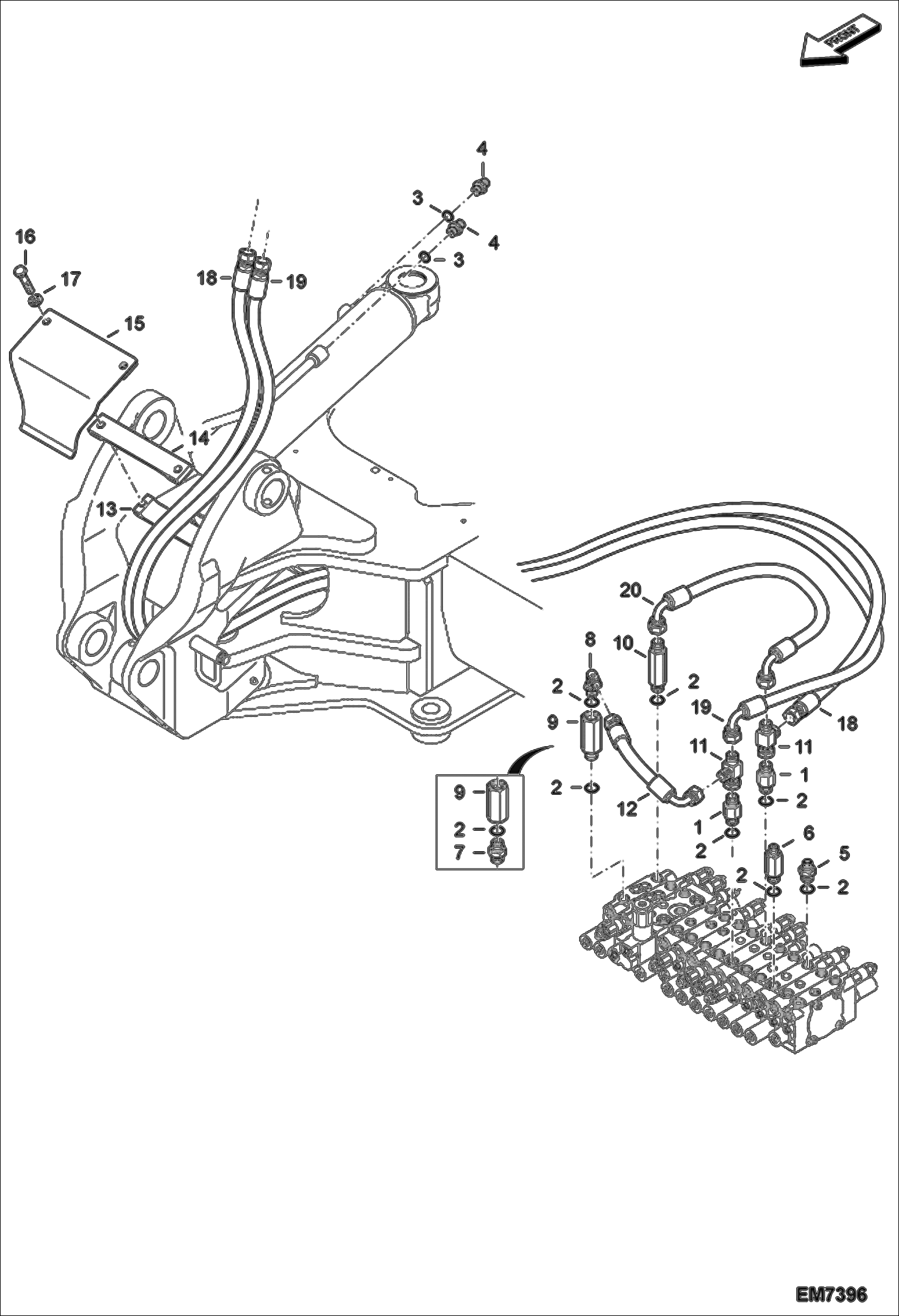

Запчасти Bobcat E55W HYDRAULIC CIRCUITRY (Work Hoses) (Arm) HYDRAULIC SYSTEM

1

7004691

ADAPTER

2

7007911

O-RING

2

7007911

O-RING

3

7007909

O-RING

4

7004696

ADAPTER

5

7004685

ADAPTER

6

7004701

ADAPTER

7

7004731

ADAPTER

8

7004710

ELBOW

9

VALVE, CHECK NLA Was 7004979 - A

9

7015589

VALVE, CHECK

10

7004681

ADAPTER

11

7003957

TEE UNION

12

7005410

HOSE

13

7006710

CLAMP HOSE

14

7006711

CLAMP HOSE

15

7006712

COVER

16

7007686

BOLT

17

7007820

WASHER SPRING

18

7005509

HOSE

19

7005405

HOSE

20

7005246

HOSE
