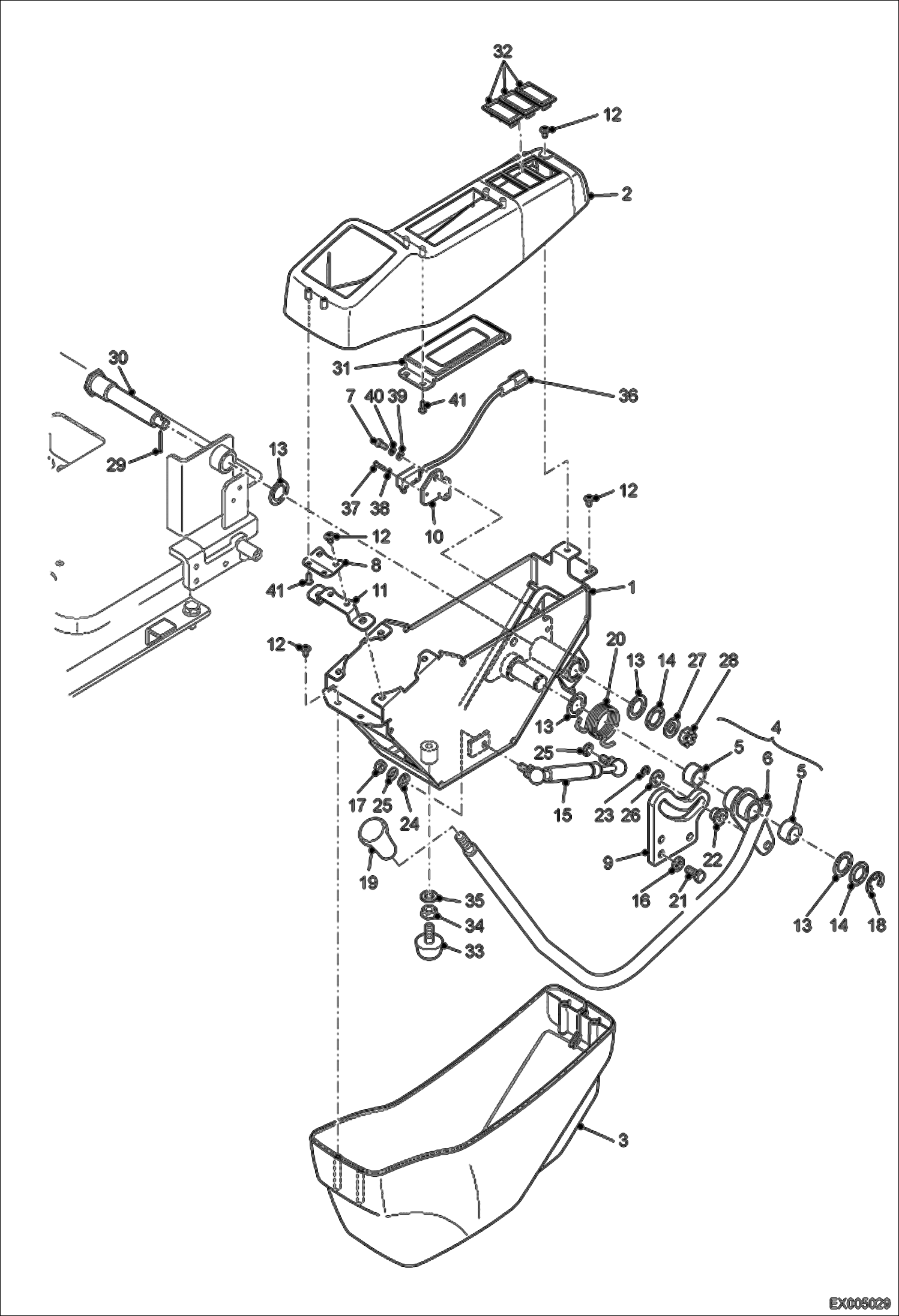

Запчасти Bobcat E55W LH CONTROL CONTROLS

1

7018638

BRACKET, STAND RH Was 7008189 - A

2

7005772

HOUSING UPPER LH

3

7005773

HOUSING LOWER

4

7005915

LEVER SAFETY W/Ref. 5-6

5

7004459

BUSHING

6

LEVER, SAFETY NLA - Order Ref. 4

7

7008294

BOLT, M5X0.8X12

8

7005893

PLATE

9

7005914

PLATE GUIDE

10

7008186

PLATE

11

7005894

PLATE

12

7004548

BOLT

13

7005659

SHIM

14

7004523

WASHER

15

7005143

CYLINDER GAS

16

7004515

WASHER

17

7004562

NUT

18

7005662

RING

19

7005674

HANDLE GRIP

20

7006010

SPRING COIL

21

7004546

BOLT

22

7005661

ROLLER

23

7005663

RING

24

7004511

WASHER

25

7004521

WASHER, SPRING

26

7004512

WASHER, PLAIN

27

7007812

WASHER

28

7007807

NUT

29

7007853

PIN SNAP

30

7006116

PIN TILT STAND

31

7005947

COVER STAND RH

32

7004930

COVER

33

7003928

STOP, SLIDE DOOR

34

7004563

NUT

35

7004512

WASHER, PLAIN

36

7008282

SWITCH, PILOT CUTOFF

37

7008298

SCREW, M3X16

38

7008300

WASHER, PLAIN

39

7007810

WASHER

40

7007832

WASHER SPRING

41

7007789

BOLT
