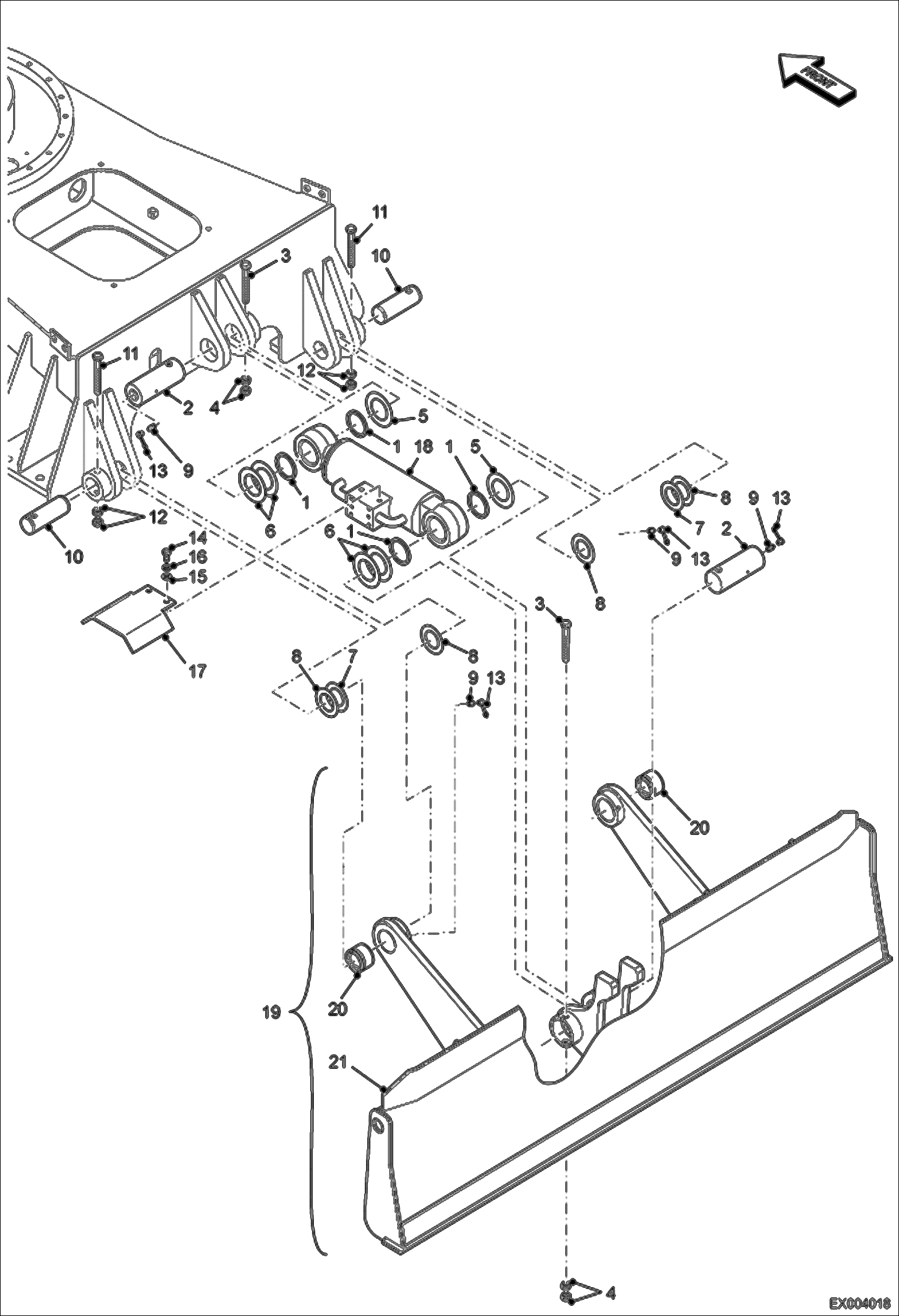

Запчасти Bobcat E55W BLADE WORK EQUIPMENT

1

7005580

SEAL DUST

2

PIN NLA Was 7004579 - A

2

7022898

PIN

3

7007699

BOLT

4

7007800

NUT M14

5

7004490

SHIM

6

7004492

SHIM

7

7004500

SHIM

8

7004499

SHIM

9

6694227

FITTING, GREASE Was 7010246 - C

10

PIN NLA Was 7003880 - A

10

7022899

PIN

11

7007692

BOLT

12

7007799

NUT

13

7003923

CAP GREASE NIPPLE

14

7007637

BOLT

15

7007819

WASHER, PLAIN

16

7007836

WASHER SPRING M12

17

7006714

BRACKET

18

7005687

CYLINDER DOZER See Illustration BLADE CYLINDER/ EX006146

19

BLADE, ASSY NLA - W/Ref. 20-21 Was 7005707 - A

19

7010131

BLADE, DOZER 1920 W/Ref. 20-21

20

7004463

BUSHING

21

BLADE NLA - Order Ref. 19
