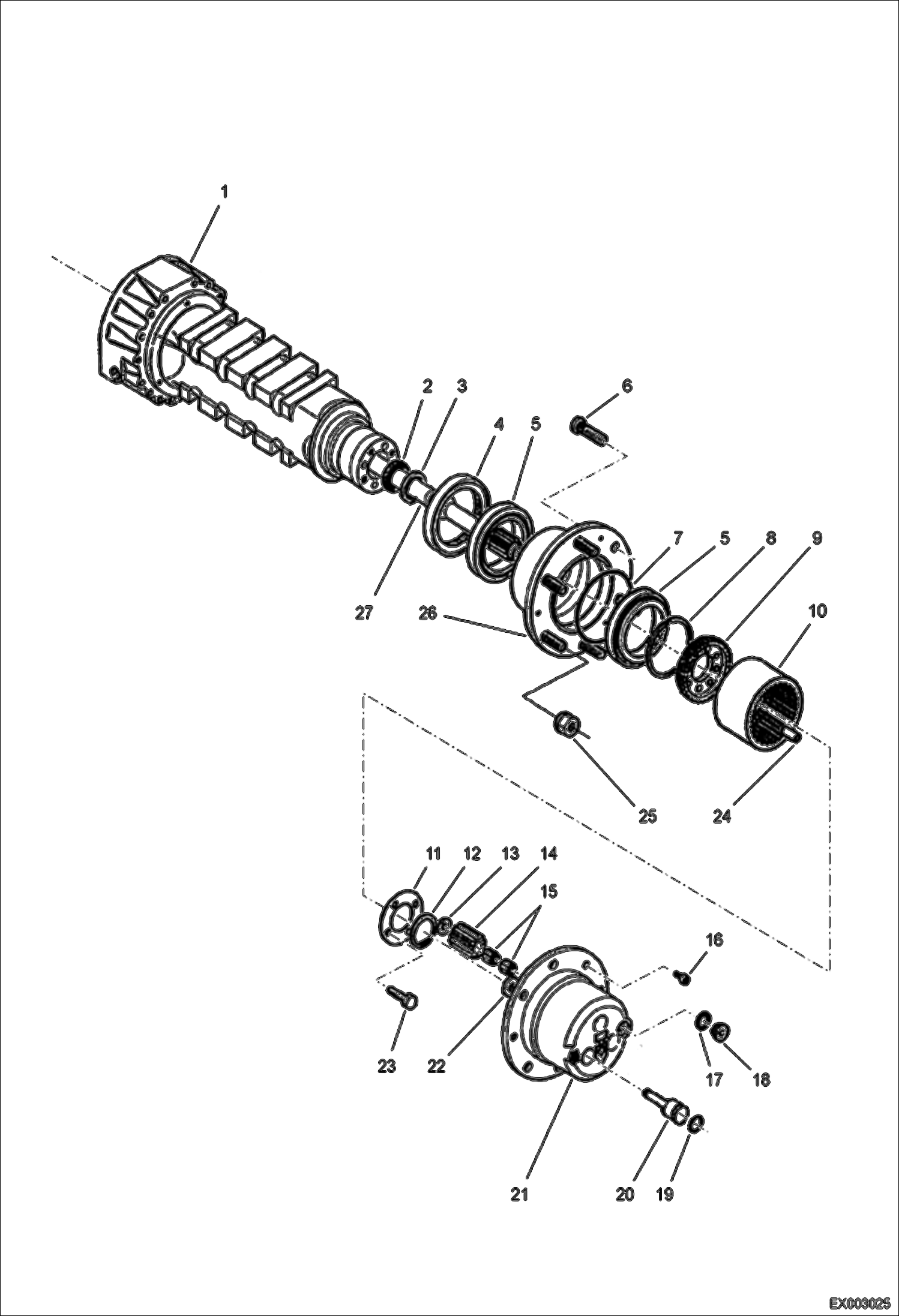

Запчасти Bobcat E55W HUB REDUCTION (Rear Axle) UNDERCARRIAGE

1

7004187

HOUSING AXLE

2

7004065

RING

3

7004071

RING CENTERING

4

7004258

SEAL

5

7003991

BEARING

6

7007315

STUD WHEEL

7

7004248

RING Was 7024410 - B

8

7004068

RING

9

7004319

SUPPORT RING GEAR

10

7004363

GEAR RING

11

7004389

PLATE LOCKING

12

7004067

RING

13

7004045

SPACER

14

7004362

GEAR PLANET

15

7003993

BEARING NEEDLE

16

7007306

BOLT CYLINDER

17

7004021

WASHER SEAL

18

7004289

PLUG

19

7004246

O-RING

20

7004172

PIN

21

7007311

CARRIER PLANET GEAR

22

7004014

WASHER FRICTION

23

7004102

BOLT HEX

24

7004174

PIN DOWEL

25

7024417

NUT Was 7004157 - B

26

7004321

HUB WHEEL

27

7004365

SHAFT HALF
