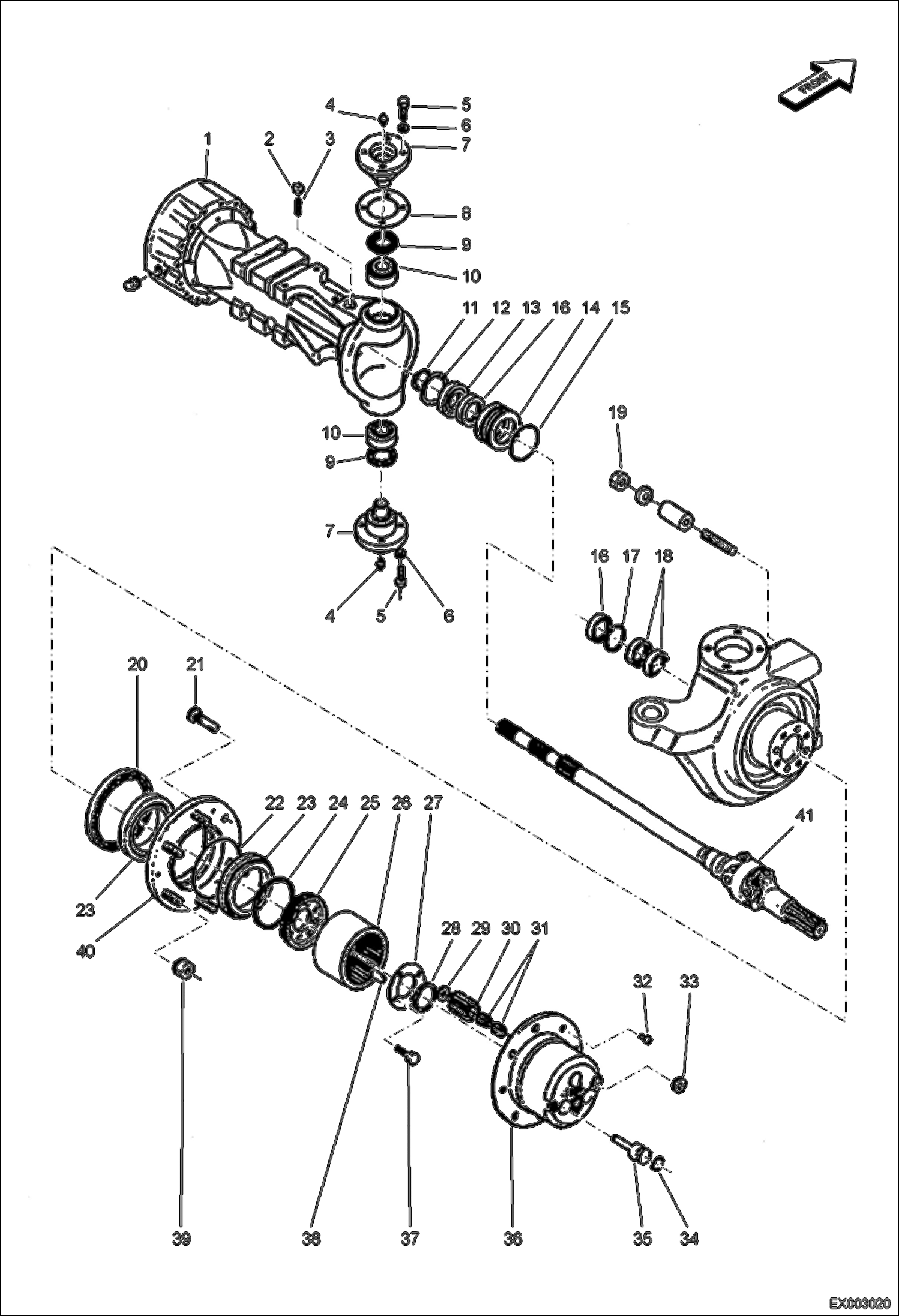

Запчасти Bobcat E55W HUB REDUCTION (Front Axle) UNDERCARRIAGE

1

7004188

HOUSING AXLE

2

7004154

NUT

3

7004118

BOLT GRUB

4

7004279

FITTING GREASE

5

7004125

BOLT HEX

6

7004023

WASHER SPRING

7

7004173

PIN PIVOT

8

7004042

SHIM

8

7004040

SHIM

8

7004041

SHIM

9

7004260

SEAL

10

7003989

BEARING

11

7004072

CLIP CIRCLIP

12

7004066

RING SYNCRONIZER

13

7003988

BEARING

14

7004001

BUSHING REDUCTION

15

7004247

O-RING

16

7004259

SEAL

17

7004069

RING

18

7003994

BEARING NEEDLE

19

7004156

NUT

20

7007313

SEAL

21

7007315

STUD WHEEL

22

7004248

RING Was 7024410 - B

23

7003991

BEARING

24

7004068

RING

25

7004319

SUPPORT RING GEAR

26

7004363

GEAR RING

27

7004389

PLATE LOCKING

28

7004067

RING

29

7004045

SPACER

30

7004362

GEAR PLANET

31

7003993

BEARING NEEDLE

32

7007306

BOLT CYLINDER

33

7004289

PLUG

34

7004246

O-RING

35

7004172

PIN

36

7007311

CARRIER PLANET GEAR

37

7004102

BOLT HEX

38

7004174

PIN DOWEL

39

7024417

NUT Was 7004157 - B

40

7007312

HUB WHEEL

41

7004205

COUPLER JOINT
