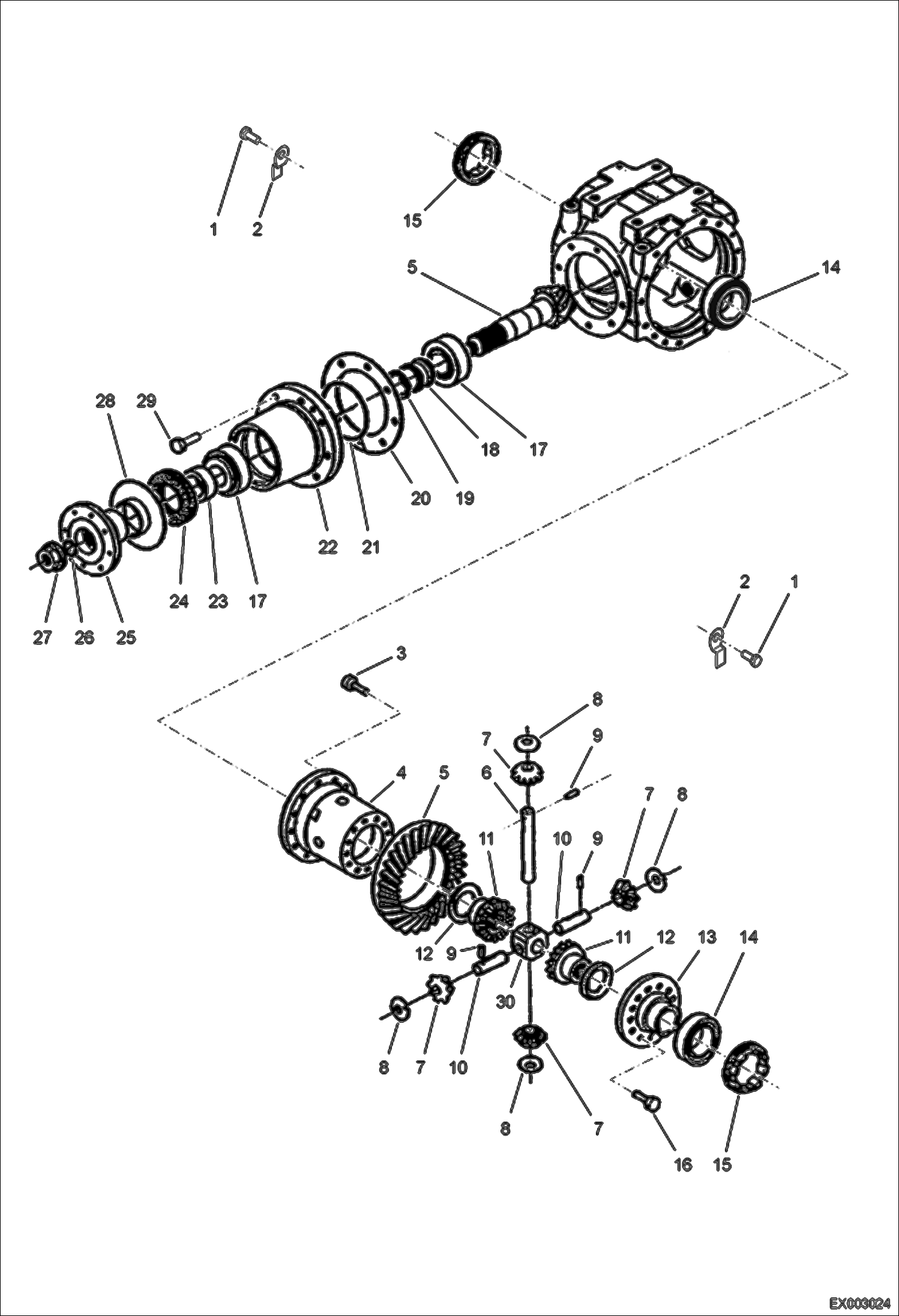

Запчасти Bobcat E55W DIFFERENTIAL (Rear Axle) UNDERCARRIAGE

1

7004126

BOLT HEX

2

7004388

PLATE LOCKING

3

7004119

BOLT

4

7007308

CARRIER DIFFERENTIAL

5

7007310

GEAR BEVEL SET

6

7004170

PIN

7

7003979

PINION DIFFERENTIAL

8

7004050

WASHER FRICTION

9

7004175

PIN DOWEL

10

7004171

PIN

11

7004359

GEAR DIFFERENTIAL SIDE

12

7004049

WASHER FRICTION

13

7004433

COVER

14

7003995

BEARING TAPER ROLLER

15

7007309

NUT RING

16

7007305

BOLT HEX

17

7003990

BEARING

18

7004043

SPACER

19

7004029

SHIM

19

7004033

SHIM

19

7004035

SHIM

19

7004028

SHIM

20

7004036

SHIM

20

7004037

SHIM

20

7004038

SHIM

20

7004039

SHIM

21

7004251

O-RING

22

7004432

COVER

23

7004044

SPACER

24

7004228

SEAL

25

7004306

FLANGE

26

7004243

O-RING

27

7004158

NUT

28

7004382

PLATE COVER

29

7004111

BOLT

30

7004064

RETAINER SHAFT
