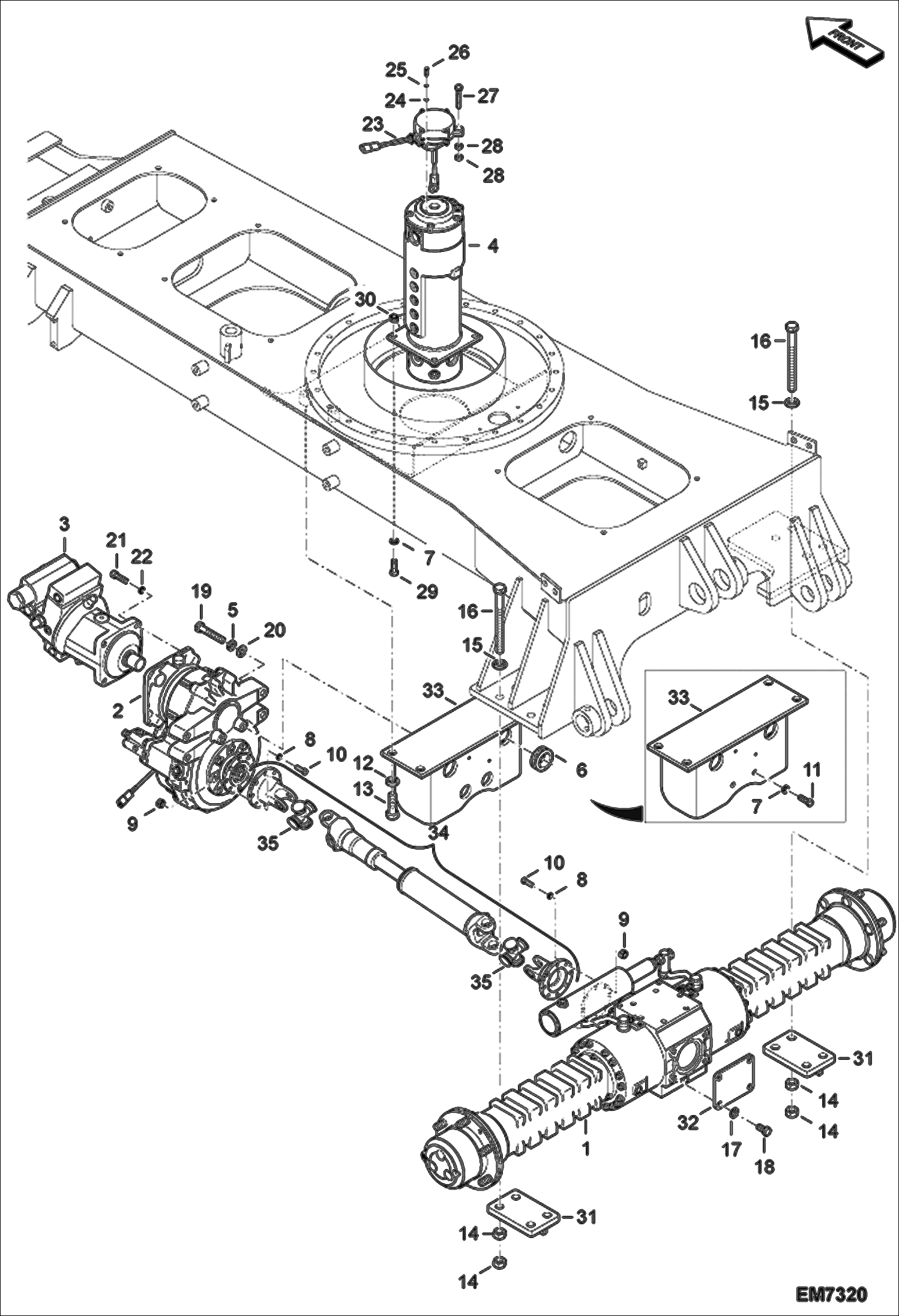

Запчасти Bobcat E55W POWER TRAIN (Rear) UNDERCARRIAGE

1

7004839

AXLE REAR See Illustration HOUSING/ EX003023

2

7005736

TRANSMISSION See Illustration GEARBOX/ EX003017

3

MOTOR, DRIVE See Illustration DRIVE MOTOR/ EX006135 NLA Was 7004962 - A

3

7023671

MOTOR, DRIVE See Illustration DRIVE MOTOR/ EX006135

4

JOINT, SWIVEL See Illustration SWIVEL JOINT/ EX006148 NLA Was 7008052 - A

4

7023672

JOINT, SWIVEL See Illustration SWIVEL JOINT/ EX006148

5

7007839

WASHER SPRING

6

7005593

BUSHING

7

7007836

WASHER SPRING M12

7

7007836

WASHER SPRING M12

8

7007844

WASHER

9

7004560

NUT

10

7005649

BOLT

11

7007641

BOLT

12

7007840

WASHER

13

7007715

BOLT

14

7008299

NUT, M20X2.5

15

7004524

WASHER HARDEN

16

7003869

BOLT

17

7007821

WASHER

18

7007644

BOLT

19

7007706

BOLT

20

7004507

WASHER PLAIN

21

7007763

BOLT

22

7007845

WASHER SPRING

23

7005741

RING SLIP

24

7007810

WASHER

25

7007827

WASHER SPRING

26

7007601

BOLT

27

7007634

BOLT

27

7007755

BOLT SOCKET

28

7007798

NUT, M1X1.5

29

7007682

BOLT

30

7004567

NUT, LOCK

31

7005038

PLATE

32

7005702

COVER

33

BRACKET NLA Was 7005704 - A

33

7012757

BRACKET

34

7005832

SHAFT PROPELLER REAR W/Ref. 35

35

7007251

YOKE UNIVERSAL JOINT
