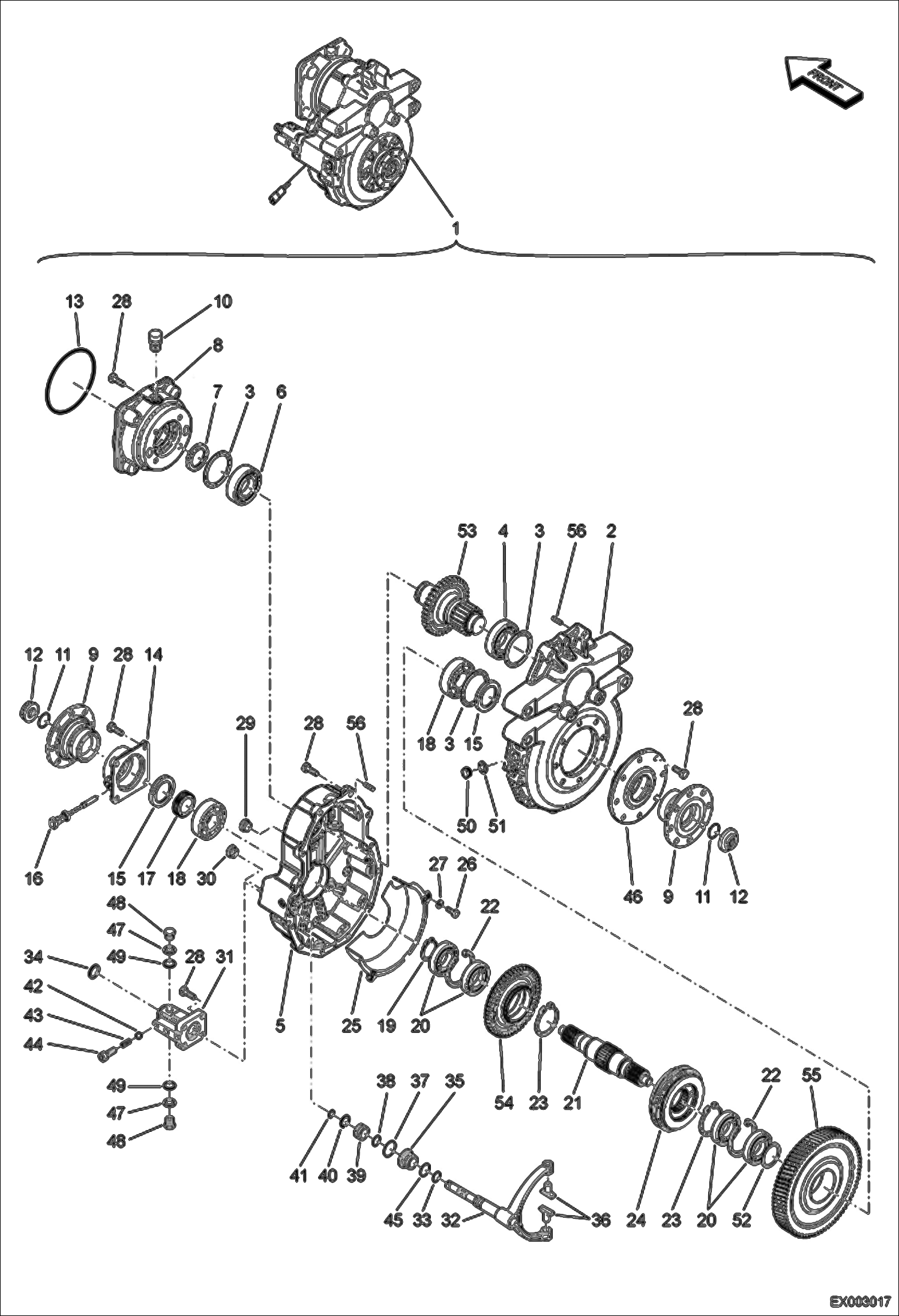

Запчасти Bobcat E55W GEARBOX UNDERCARRIAGE

1

7005736

TRANSMISSION W/Ref. 2-56

2

7007077

HOUSING

3

7004024

SHIM

3

7004025

SHIM

3

7004026

SHIM

3

7004027

SHIM

3

7004034

SHIM

4

7007068

BEARING BALL

5

7007078

COVER

6

7003985

BEARING BALL

7

7004257

SEAL

8

7004434

COVER

9

7004305

FLANGE

10

7004402

FILTER BREATHER AIR

11

7004244

O-RING

12

7004145

NUT

13

7004253

O-RING

14

7007084

COVER

15

7004229

SEAL

16

7007088

SENSOR ELECTRONIC

17

7007085

GEAR

18

7003992

BEARING BALL

19

7004185

RING SNAP

20

7007067

BEARING BALL

21

7007079

SHAFT OUTPUT

22

7007066

RING SNAP

23

7007065

RING SNAP

24

7007087

TOOL SYNCHRONIZER

25

7007076

PLATE SHEET

26

7004123

BOLT HEX.

27

7007069

WASHER LOCK

28

7004124

BOLT HEX.

29

7004281

PLUG

30

7004301

PLUG MAGNET

31

7007083

CYLINDER

32

7007089

SHAFT SELECTOR

33

7007059

ORING

34

7007063

SEAL

35

7007082

BUSHING REDUCTION

36

7007075

PIN SLIDING

37

7007058

ORING

38

7007061

ORING

39

7007081

PISTON

40

7007064

RING SNAP

41

7007060

ORING

42

7007072

BALL

43

7007090

SPRING

44

7007073

BOLT SOCKET

45

7007062

ORING

46

7004435

COVER

47

7007070

WASHER

48

7007074

PLUG

49

7007071

WASHER SEAL

50

7004115

BOLT

51

7004048

WASHER

52

7004004

SHIM

52

7004005

SHIM

52

7004006

SHIM

52

7004007

SHIM

53

7004366

SHAFT INPUT

54

7007080

GEAR

55

7007086

GEAR

56

7004176

PIN
