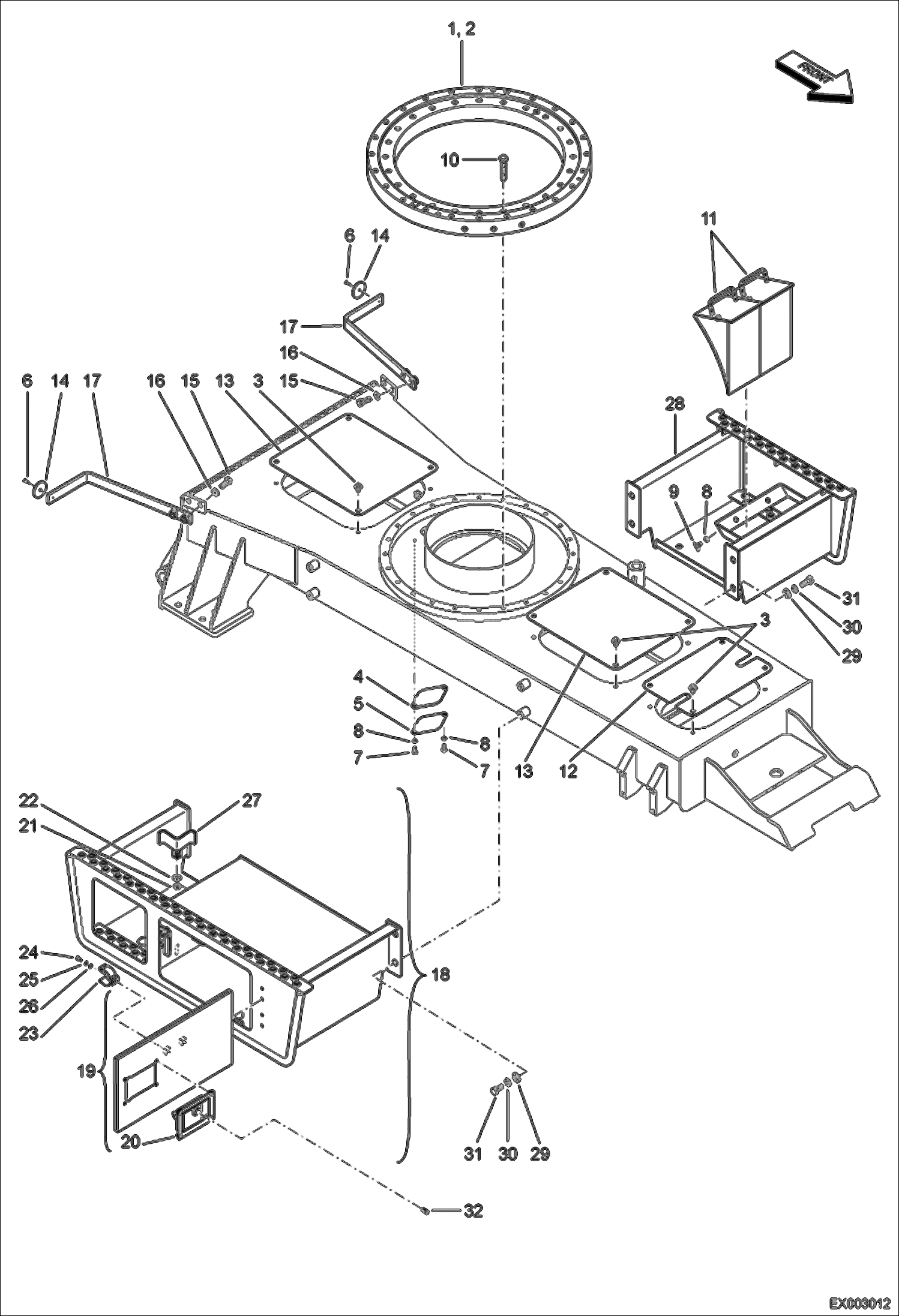

Запчасти Bobcat E55W UNDERCARRIAGE (Components) UNDERCARRIAGE

1

BEARING, SWING NLA - W/Ref. 2 Was 7004455 - A

1

7024759

BEARING, SWING W/Ref. 2

2

7003946

SEAL

2

7024778

SEAL

3

7005121

BOLT, SET

4

7004643

SEAL

5

7004926

COVER GREASE

6

7007782

BOLT

7

7007626

BOLT

8

7007835

WASHER SPRING

9

7007776

BOLT WING

10

7007705

BOLT

11

7005699

STABILIZER WHEEL

12

7005697

COVER

13

7005696

COVER

14

7003966

DEFLECTOR REFLECTOR

15

7007648

BOLT

16

7007839

WASHER SPRING

17

7005743

PLATE

18

7005728

STEP RH W/Ref. 19-27

19

7008182

DOOR, TOOL BOX W/Ref. 20

20

7006267

CATCH DOOR

21

7007798

NUT, M1X1.5

22

7004467

WASHER PLAIN

23

7005744

CLAMP

24

7007615

BOLT

25

7007834

WASHER SPRING

26

7007815

WASHER PLAIN

27

7005628

BRACKET

28

7005729

STEP LH

29

7004468

WASHER

30

7007839

WASHER SPRING

31

7007647

BOLT, M16X2.0X35

32

7005642

CYLINDER KEY
