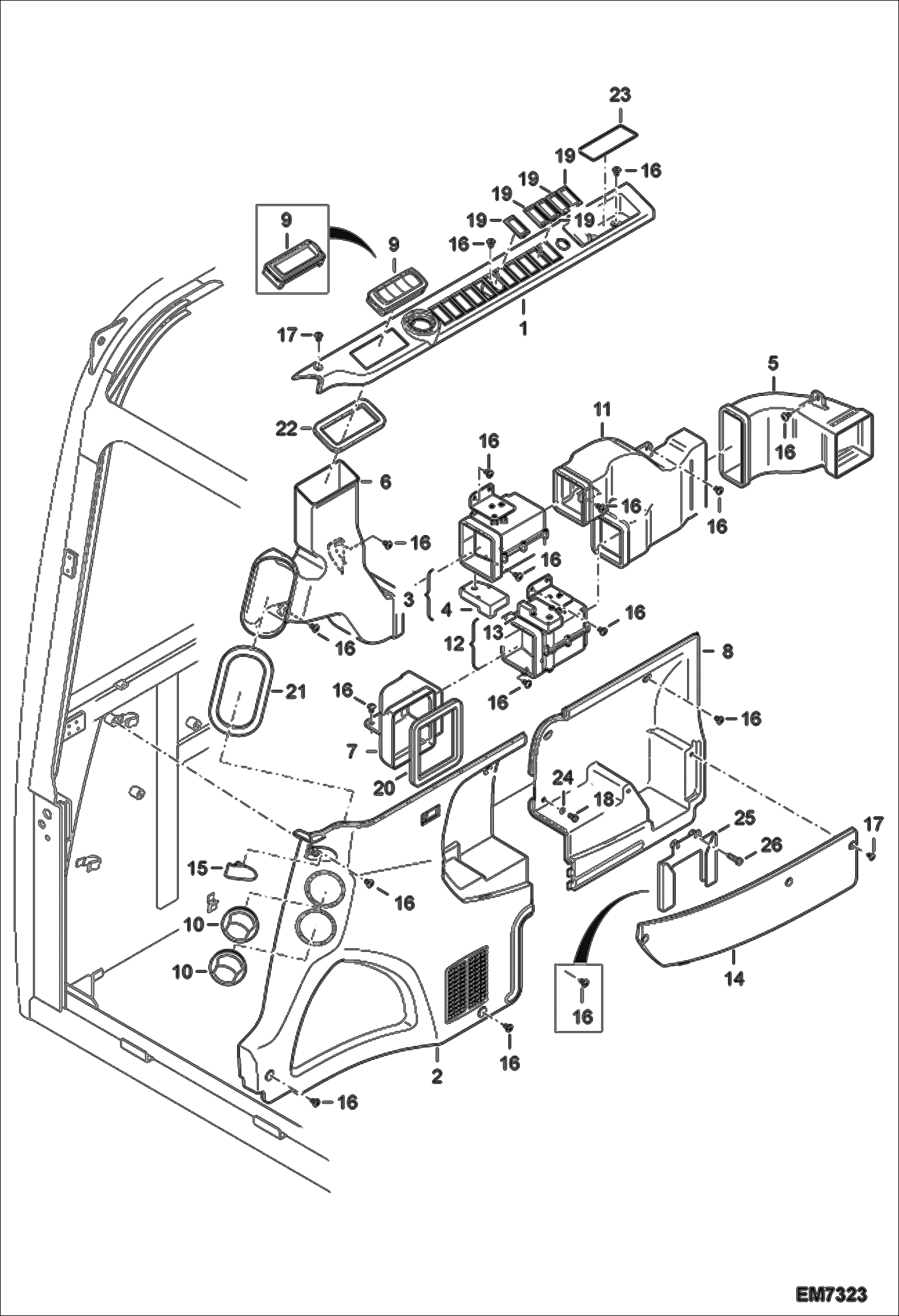

Запчасти Bobcat E55W AIR CONDITIONING (Side Covers & Ducts) MAIN FRAME

1

COVER, SWITCH NLA Was 7008231 - A

1

7015584

COVER, SWITCH

2

7005784

COVER, SIDE FRONT

3

DUCT, CONTROL NLA - W/Ref. 4 Was 7005780 - A

3

7015585

DUCT,CONTROL W/Ref. 4

4

7006530

MOTOR, MIX

5

7005781

DUCT, REAR

6

7005782

DUCT, FACE

7

7005783

DUCT, DEF

8

7006374

COVER, SIDE REAR

9

7015588

NOZZLE, DUCT

10

7005643

NOZZLE

11

7005881

DUCT, REAR

12

DUCT, CONTROL NLA - W/Ref. 13 Was 7005902 - A

12

7015586

DUCT, CONTROL W/Ref. 13

13

7006530

MOTOR, MIX

14

7005948

COVER, POCKET

15

7005953

COVER, HOLE

16

7004547

BOLT

16

7004547

BOLT

17

7004548

BOLT

18

7004538

BOLT

19

7004930

COVER

20

7006113

FOAM, DUCT

21

7006114

FOAM, DUCT

22

7006115

FOAM, DUCT

23

7006256

PAD, RUBBER

24

7004516

WASHER, PLAIN

25

7017366

BRACKET

26

7007609

BOLT
