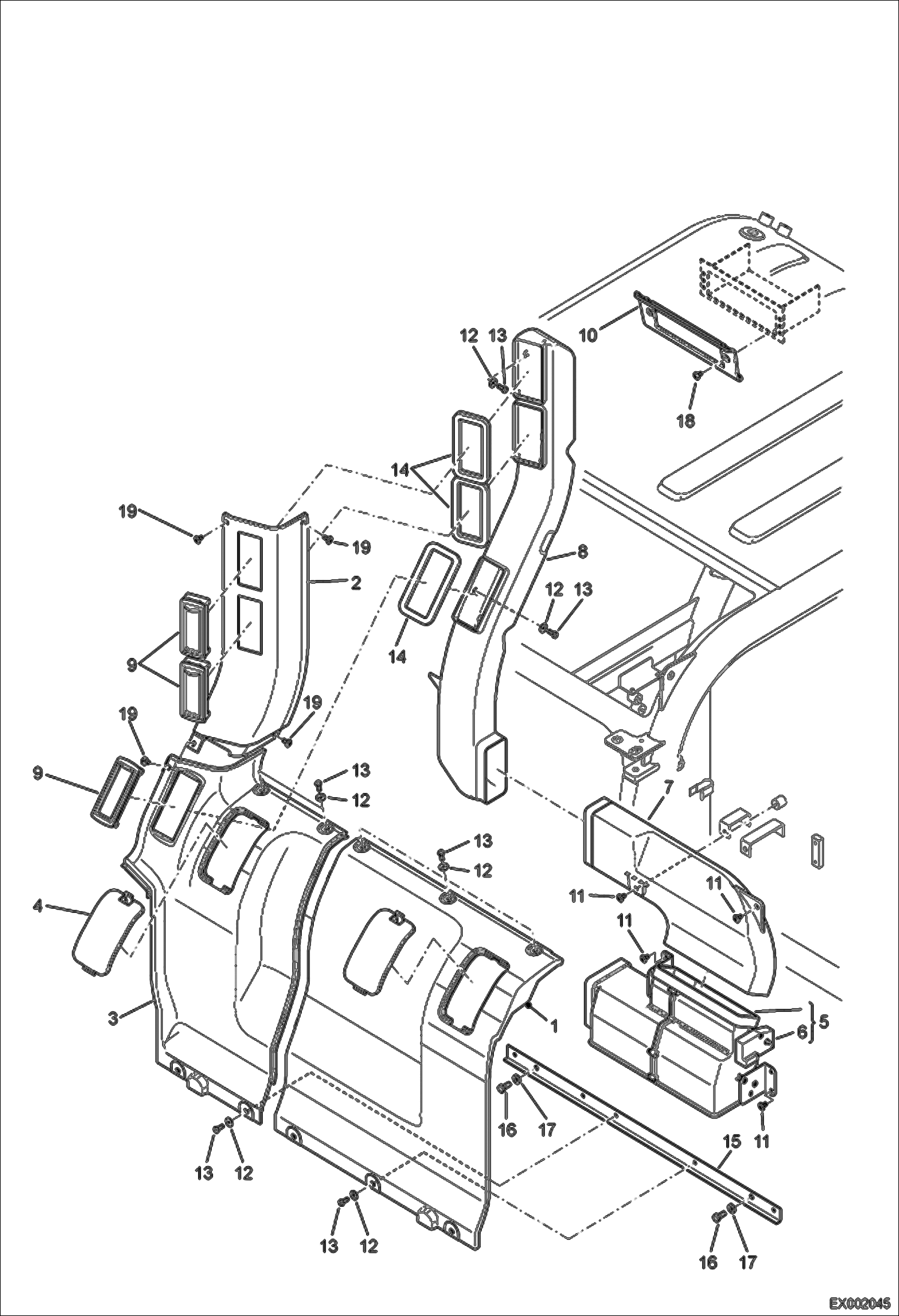

Запчасти Bobcat E55W AIR CONDITIONING (Rear Covers & Ducts) MAIN FRAME

1

7005775

COVER REAR LH

2

7008194

COVER, PILLAR

3

7006378

COVER REAR RH

4

7005912

COVER FUSE BOX

5

DUCT, CONTROL NLA - W/Ref. 6 Was 7005776 - A

5

7017367

DUCT, CONTROL W/Ref. 6

6

7006530

MOTOR, MIX

7

7005777

DUCT, REAR

8

7005778

DUCT PILLAR

9

7015588

NOZZLE, DUCT

10

7005945

COVER, CASSETTE

11

7004547

BOLT

12

7004517

WASHER

13

7004550

BOLT

14

7006115

FOAM, DUCT

15

7006130

PLATE REAR COVER

16

7004546

BOLT

17

7004515

WASHER

18

7004549

BOLT, GREEN

19

7004531

BOLT
