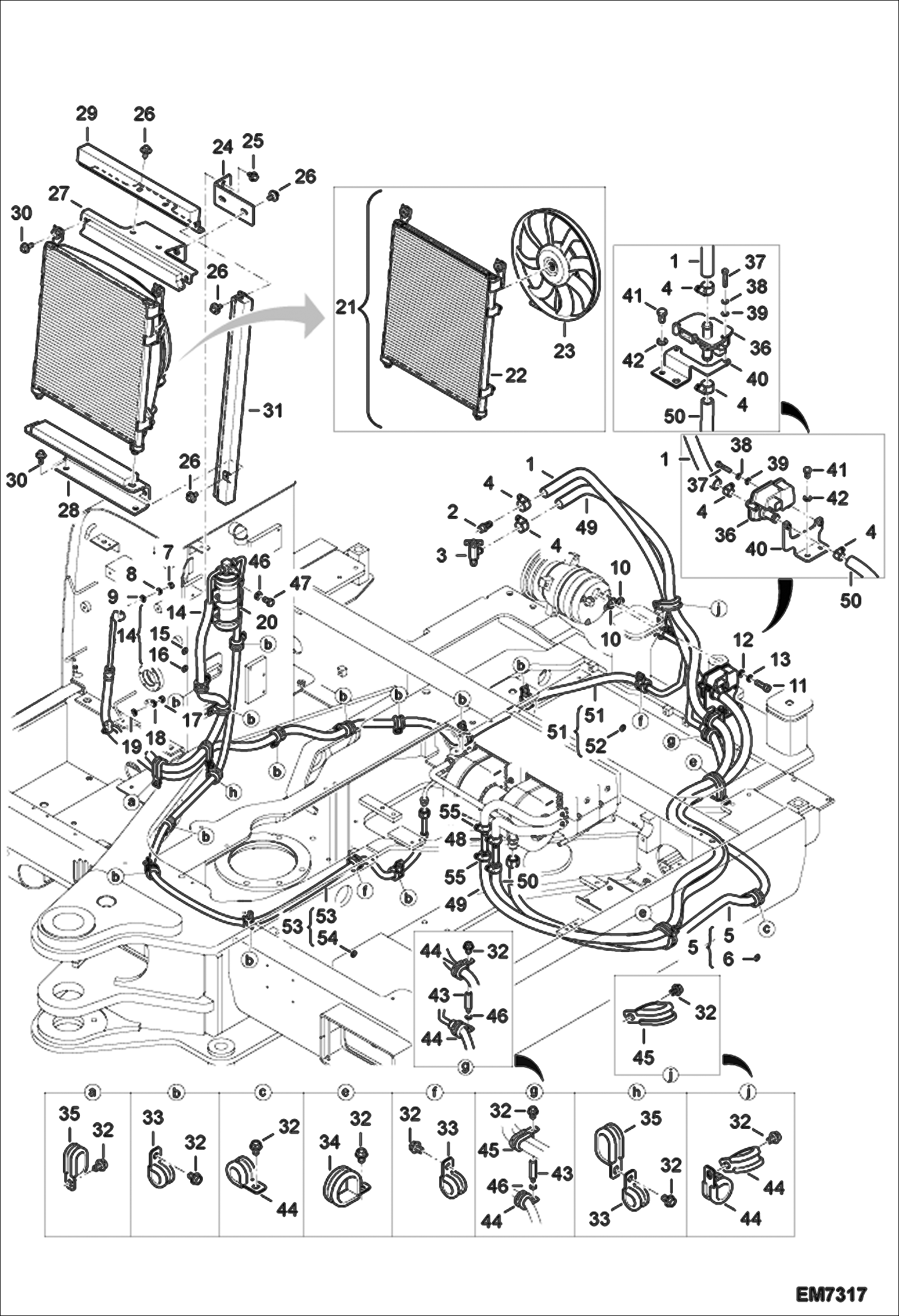

Запчасти Bobcat E55W AIR CONDITIONING (Frame) MAIN FRAME

1

7004794

HOSE RUBBER

1

7004791

HOSE

2

7005556

ADAPTER

3

7005808

VALVE

4

7007975

CLAMP

4

7008303

CLAMP, HOSE

5

7005993

HOSE DISCHARGE W/Ref. 6

6

7005656

O-RING

7

7007795

NUT

8

7007828

WASHER SPRING

9

7007811

WASHER PLAIN

10

7004664

WASHER, SEAL

11

7007750

BOLT, SOCKET M10X1.5X35

12

7013265

WASHER, PLAIN Was 7007825 - A

13

7007843

WASHER, SPRING

14

7005982

HOSE LIQUID 1 W/Ref. 15-16

14

7015614

HOSE, LIQUID W/Ref. 15-16

15

7005657

O-RING

16

7006238

O-RING

16

7005657

O-RING

17

7007795

NUT

18

7007828

WASHER SPRING

19

7007811

WASHER PLAIN

20

7004841

RECEIVER, DRIER

21

7005804

CONDENSER A/C W/Ref. 22-23

22

7005805

CONDENSER ASSY

23

7005806

FAN & MOTOR ASSY

24

7005888

BRACKET

25

7005129

BOLT, SET

26

7005128

BOLT, SET

27

7006276

BRACKET

28

7006390

BRACKET

29

7006248

BRACKET

30

7005132

BOLT SET

31

7006273

BRACKET

32

7005629

BOLT

33

7003895

CLIP

34

7003899

CLIP

35

7003902

CLIP

36

7012255

VALVE, WATER HEATER Was 7006247 - A

37

7007611

BOLT

38

7007828

WASHER SPRING

39

7007811

WASHER PLAIN

40

7006383

BRACKET

40

7018655

BRACKET, WATER VALVE Was 7012256 - A

41

7007614

BOLT

41

7007614

BOLT

42

7007834

WASHER SPRING

42

7007834

WASHER SPRING

43

7004554

BOLT STUD

44

7003896

CLIP

44

7003896

CLIP

45

7003905

CLIP

46

7007834

WASHER SPRING

47

7007617

BOLT

48

7005949

COUPLER, JOINT HOSE

49

7004793

HOSE, RUBBER

50

7008147

HOSE, RUBBER

51

7005981

HOSE SUCTION W/Ref. 52

52

7006239

O-RING

53

7005983

HOSE LIQUID 2 W/Ref. 54

54

7006238

O-RING

55

7007974

CLAMP
