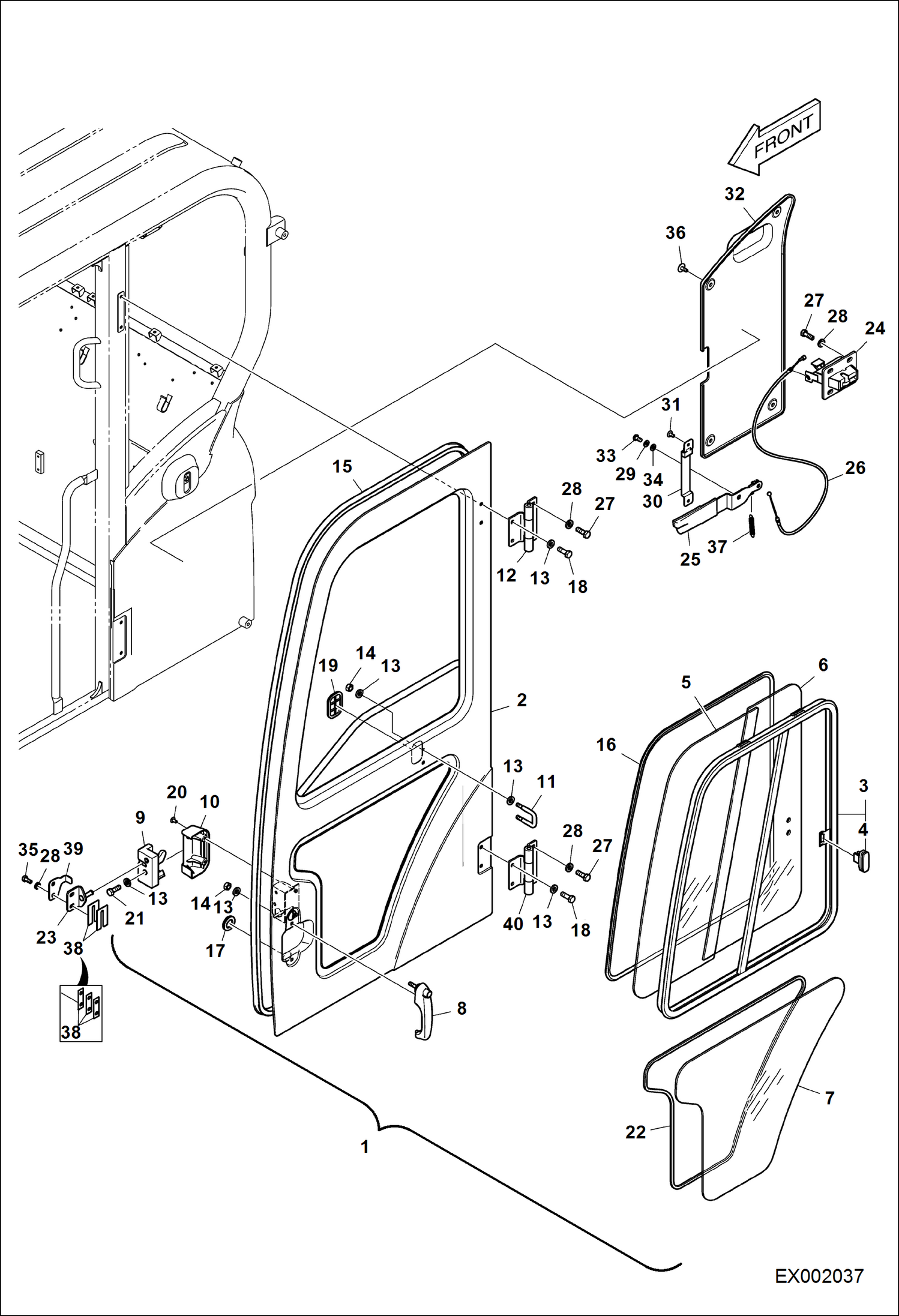

Запчасти Bobcat E55W OPERATOR CAB (Door & Windows) MAIN FRAME

1

DOOR ASSY NLA - W/Ref. 2-22 Was 7008185 - A

1

DOOR ASSY NLA - W/Ref. 2-22 Was 7021807 - A

1

7031252

DOOR ASSY W/Ref. 2-22 & 40 Was 7024763 - B

2

BODY, DOOR NLA - Order Ref. 1

3

7005755

FRAME SASH W/Ref. 4

4

7004584

LOCK

5

7005756

GLASS SASH FRONT

6

7005757

GLASS SASH REAR

7

7008051

GLASS, DOOR LOWER

8

7028230

HANDLE DOOR Was 7006460 - B

8

7006802

KEY, SWITCH STARTER

9

7006740

CATCH, DOOR INNER

10

7005795

COVER, CATCH

11

7005816

HOOK CATCH DOOR

12

HINGE NLA Was 7005817 - A

12

7024764

HINGE

13

7004515

WASHER

14

7007796

NUT

15

7005813

SEAL, EXTRUSION

16

7005818

EDGE

17

7004617

BUSHING, RUBBER

18

7004533

BOLT

19

7005830

COVER

20

7004548

BOLT

21

7004551

BOLT

22

7005850

DAMPER

23

7029427

STRIKER Was 7006289 - B

24

7004591

LOCK, BACK

25

7005807

LEVER BACK LOCK

26

7004592

CABLE BACK LOCK

27

7004533

BOLT

28

7004515

WASHER

29

7007833

WASHER, SPRING

30

7005840

BRACKET

31

7004548

BOLT

32

7005846

PAD

33

7007785

SCREW, M6X1.0X12

34

7007814

WASHER

35

7004546

BOLT

36

7005648

RIVET

37

7004595

SPRING

38

7005992

PLATE

39

7006290

PLATE

40

7024765

HINGE
