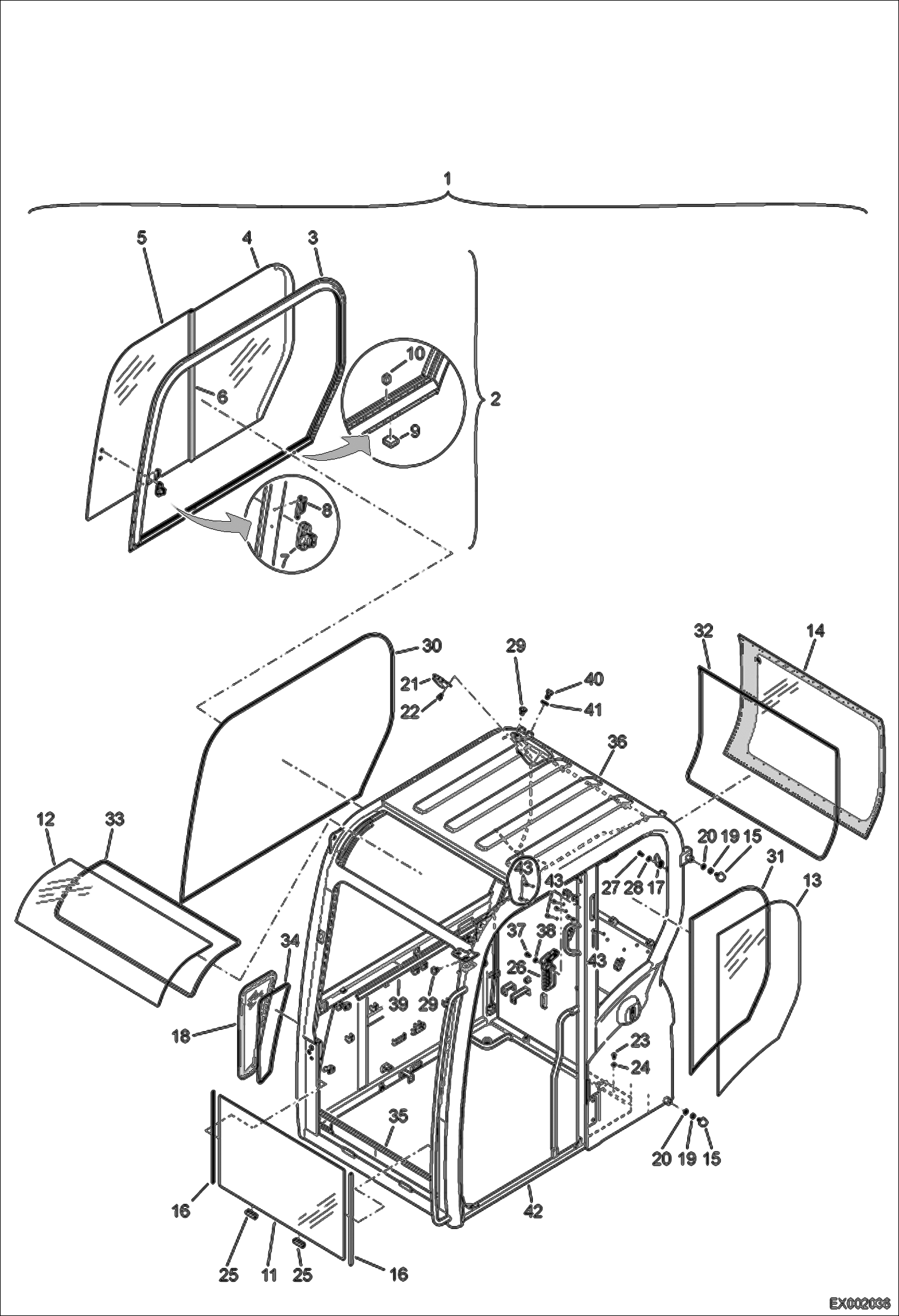

Запчасти Bobcat E55W OPERATOR CAB (Windows) MAIN FRAME

1

CAB ASSY NLA - W/Ref. 2-42 Was 7008202 - A

1

CAB ASSY NLA - W/Ref. 2-42 Was 7020670 - A

1

7024760

CAB ASSY W/Ref. 2-43

2

7005759

FRAME SASH ASSY RH W/Ref. 3-10

3

FRAME, SASH NLA - Order Ref. 2

4

7006559

GLASS REAR

5

7006558

GLASS FRONT

6

7006655

BAR

7

7004584

LOCK

8

7003867

LOCK, STOP

9

7005046

STOP, RUBBER

10

7004627

STOP, GLASS

11

7005760

GLASS LOWER

12

7005761

GLASS

13

7005762

GLASS REAR LH

14

7005763

GLASS REAR

15

7003928

STOP, SLIDE DOOR

16

7005764

EDGE RUBBER

17

7005676

HOOK, COAT

18

7005801

GLASS LOWER RH

19

7004563

NUT

20

7004512

WASHER, PLAIN

21

7006214

ANTENNA MODULE ASSY

22

7003873

BOLT

23

7007785

SCREW, M6X1.0X12

24

7007814

WASHER

25

7004624

STOP, RUBBER

26

7004838

TOOL HAMMER

27

7004552

BOLT

28

7004516

WASHER, PLAIN

29

7004620

BUSHING, RUBBER

30

7005851

DAMPER

31

7005852

DAMPER

32

7005853

DAMPER

33

7005854

DAMPER

34

7005856

DAMPER

35

7005857

SEAL, EXTRUSION

36

HARNESS, CAB NLA Was 7006219 - A

36

7024761

HARNESS, CAB

37

7004543

BOLT

38

7007808

WASHER

39

7006246

FOAM, POLYURETHANE

40

7004544

BOLT

41

7004509

WASHER

42

BODY, CAB NLA - Order Ref. 1

43

7024762

BOLT
