SPECIAL APPLICATION KIT (FOGS + Roof Guard)

Запчасти Bobcat E55W SPECIAL APPLICATION KIT (FOGS + Roof Guard) ACCESSORIES & OPTIONS

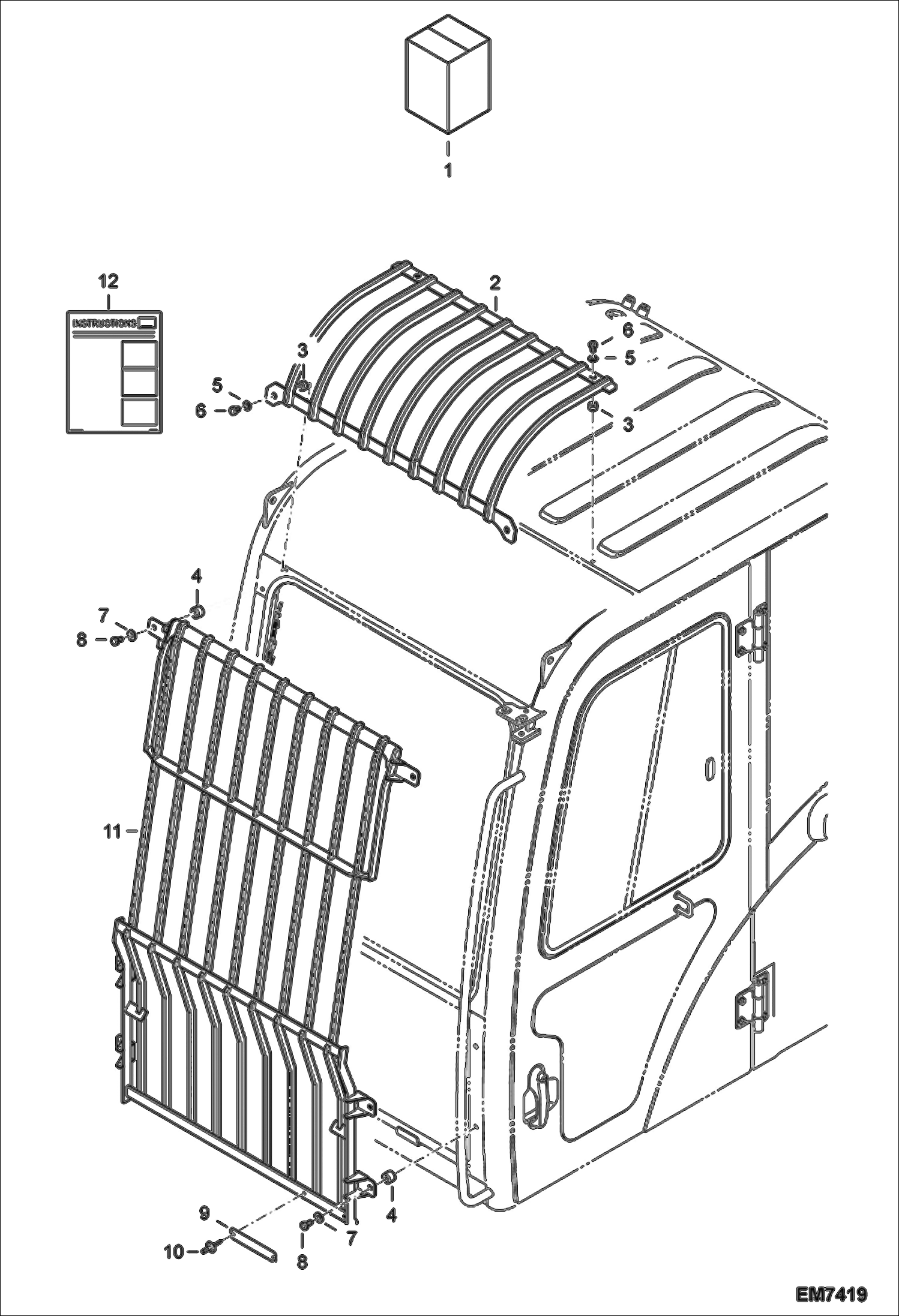

Схема запчастей Bobcat E55W - SPECIAL APPLICATION KIT (FOGS + Roof Guard) ACCESSORIES & OPTIONS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7176908

KIT, SPECIAL APPLICATION (FOGS) Ref. 1-12

2

7010560

GUARD, ROOF

3

7010561

SCREW, SEAT

4

7010324

BUSHING

5

7004512

WASHER, PLAIN

6

7010562

BOLT

7

7004509

WASHER

8

7004544

BOLT

9

7010563

PLATE

10

7010326

RIVET NSS

11

7010559

GUARD, FRONT

12

6987454

INSTRUCTIONS, INSTALLATION
