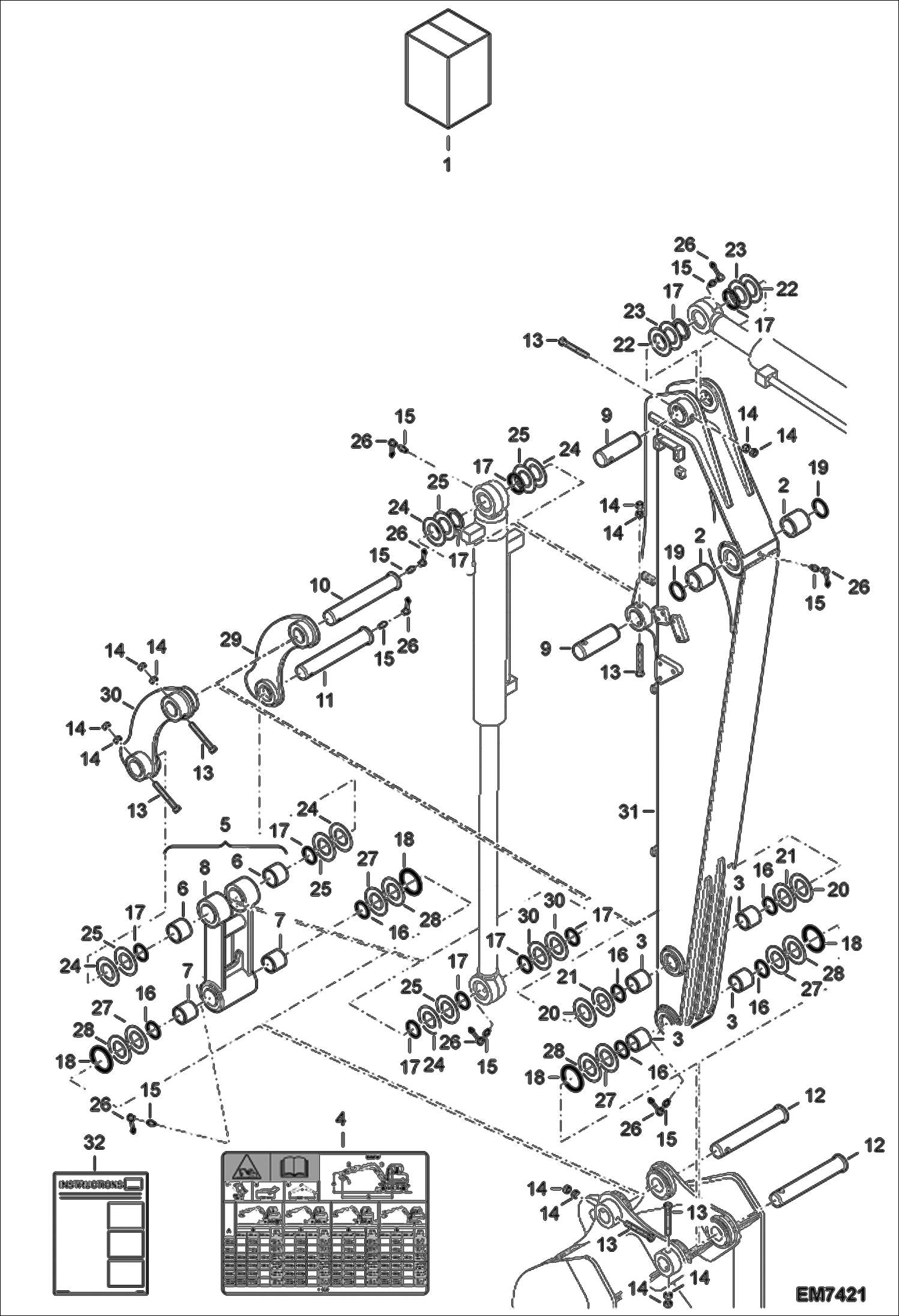

Запчасти Bobcat E55W ARM KIT (Long) ACCESSORIES & OPTIONS

1

7177183

KIT, ARM long - Ref. 2-32

2

7005747

BUSHING

3

7005748

BUSHING

4

7169017

DECAL, CAPACITY

5

7005723

LINK PUSH W/Ref. 6-8

6

7005749

BUSHING

7

7005748

BUSHING

8

LINK, PUSH NLA - Order Ref. 5

9

7004572

PIN

10

7006242

PIN

11

7006243

PIN

12

7018644

PIN Was 7004578 - A

13

7007692

BOLT

14

7007799

NUT

15

6694227

FITTING, GREASE Was 7010247 - C

16

7004637

SEAL DUST

17

7004638

SEAL DUST

18

7003939

O-RING

19

7004636

SEAL DUST

20

7005604

SHIM 1.0T 1,0 mm

21

7005605

SHIM 1.6T 1,6 mm

22

7005606

SHIM 1.0T 1,0 mm

23

7005607

SHIM 1.6T 1,6 mm

24

7005610

SHIM 1.0T 1,0 mm

25

7005611

SHIM 1.6T 1,6 mm

26

7003923

CAP GREASE NIPPLE

27

7004482

SHIM

28

7004483

SHIM

29

7003917

LINK GUIDE RH

30

7003918

LINK GUIDE LH

31

7010175

ARM 1.9 m - W/Ref. 2-3 Was 7006785 - D

32

6987418

INSTRUCTIONS, INSTALLATION
