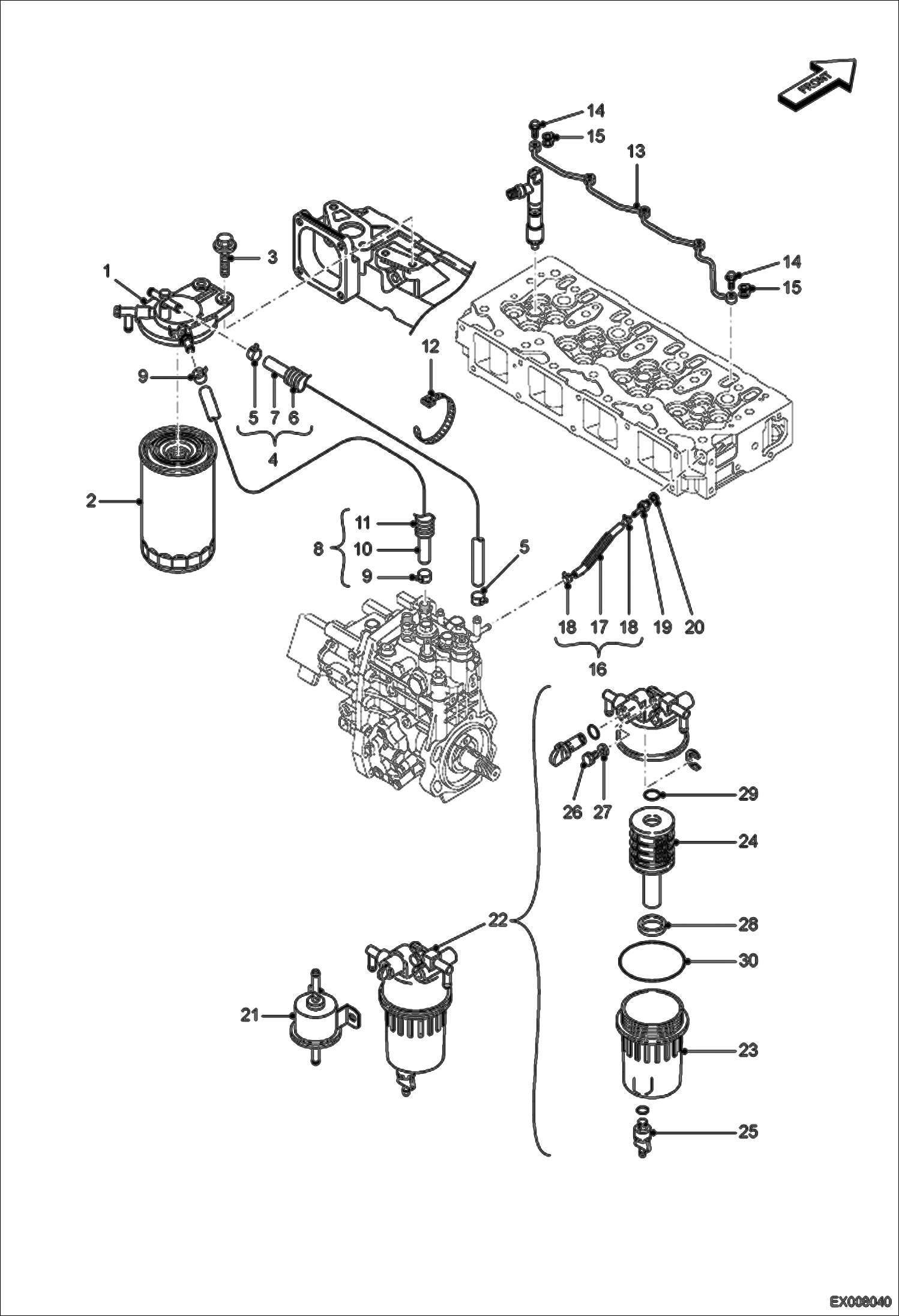

Запчасти Bobcat E55W FUEL SYSTEM (Pump/Filters) POWER UNIT

1

7006897

BRACKET

2

7010351

FILTER, FUEL Was 7006269 - D

3

7004088

BOLT M8X30

4

7004206

TUBELINE FUEL ASSY W/Ref. 5-7

5

7004182

CLAMP

6

7004211

GUARD FUEL TUBELINE

7

7005108

TUBELINE FUEL

8

7007164

TUBELINE ASSY FUEL W/Ref. 9-11

9

7004182

CLAMP

10

7007098

TUBELINE FUEL

11

7004312

TUBELINE

12

7005079

CLAMP

13

7004207

TUBELINE ASSY RETURN

14

7004334

BOLT

15

7004278

SEAL

16

7007131

TUBELINE FUEL RETURN W/Ref. 17-18

17

7007100

TUBELINE

18

7004186

CLAMP

19

7004335

HOSE W/Ref. 20

20

7004019

WASHER SEAL

21

7006899

PUMP FUEL FEED

22

7023335

SEPARATOR W/Ref. 23-30 Was 7007241 - B

23

7007242

CUP ASSY

24

7013148

FILTER Was 7005081 - A

25

7005082

PLUG DRAIN

26

7005083

PLUG BREATHER

27

7005084

SEAL BREATHER

28

7005085

SEAL SPACER

29

7007910

O-RING

30

7005086

ORING
