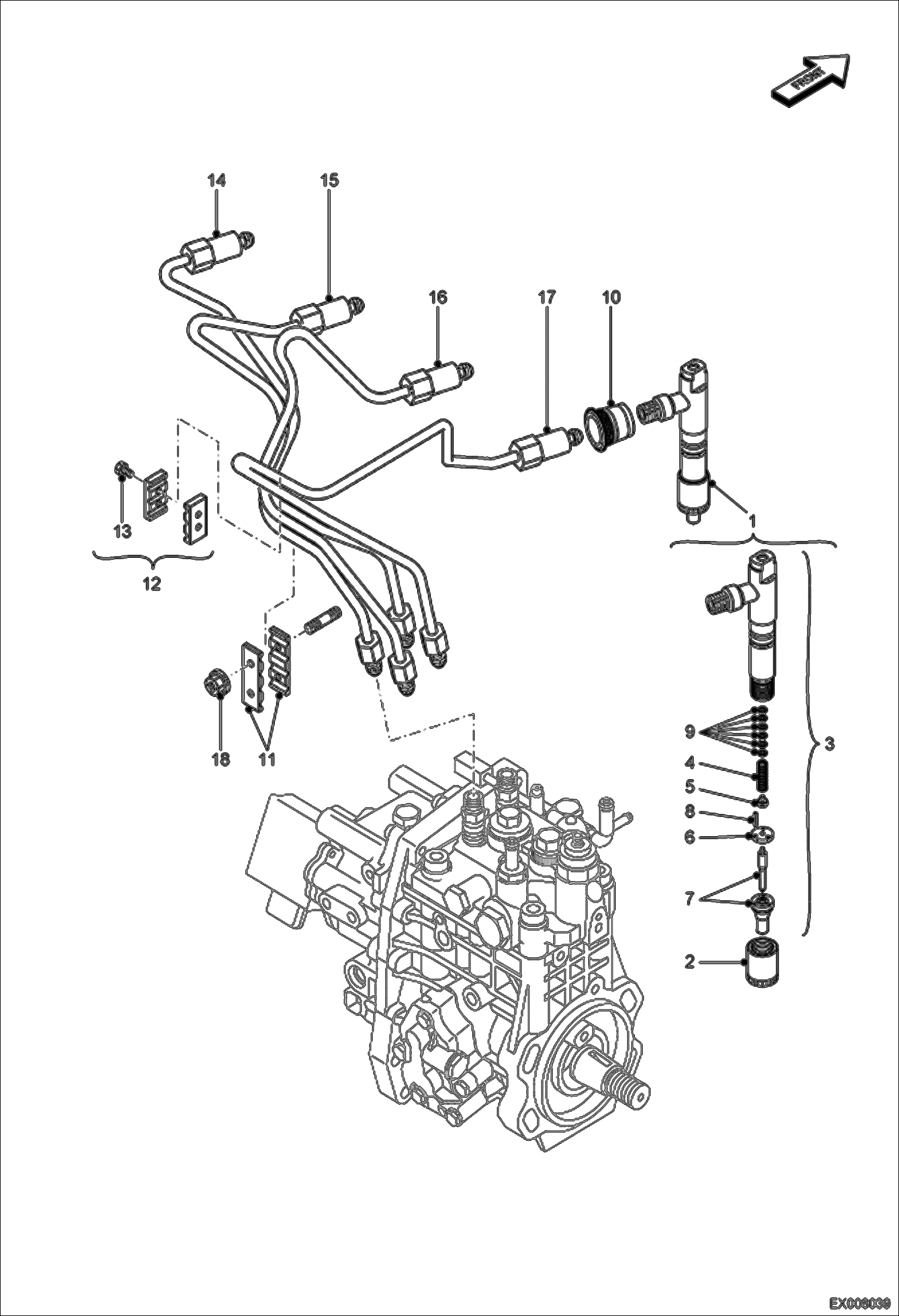

Запчасти Bobcat E55W FUEL & INJECTION PIPE & NOZZLES POWER UNIT

1

7007328

INJECTOR ASSY W/Ref. 2-9

2

7004147

NUT

3

7007129

NOZZLE HOLDER ASSY W/Ref. 4-9

4

7004195

SPRING

5

7004408

SEAT

6

7004384

PLATE STOP

7

7007329

NOZZLE ASSY

8

7004164

PIN

9

7013266

SHIM ASSY Was 7004227 - A

10

7004277

SEAL TUBELINE

11

7007097

BRACKET

12

7006898

CLAMP TUBELINE W/Ref. 13

13

7004081

BOLT M4X14

14

7007132

TUBELINE INJECTION ASSY

15

7007133

TUBELINE INJECTION ASSY

16

7007134

TUBELINE INJECTION ASSY

17

7007135

TUBELINE INJECTION ASSY

18

7004148

NUT M6
