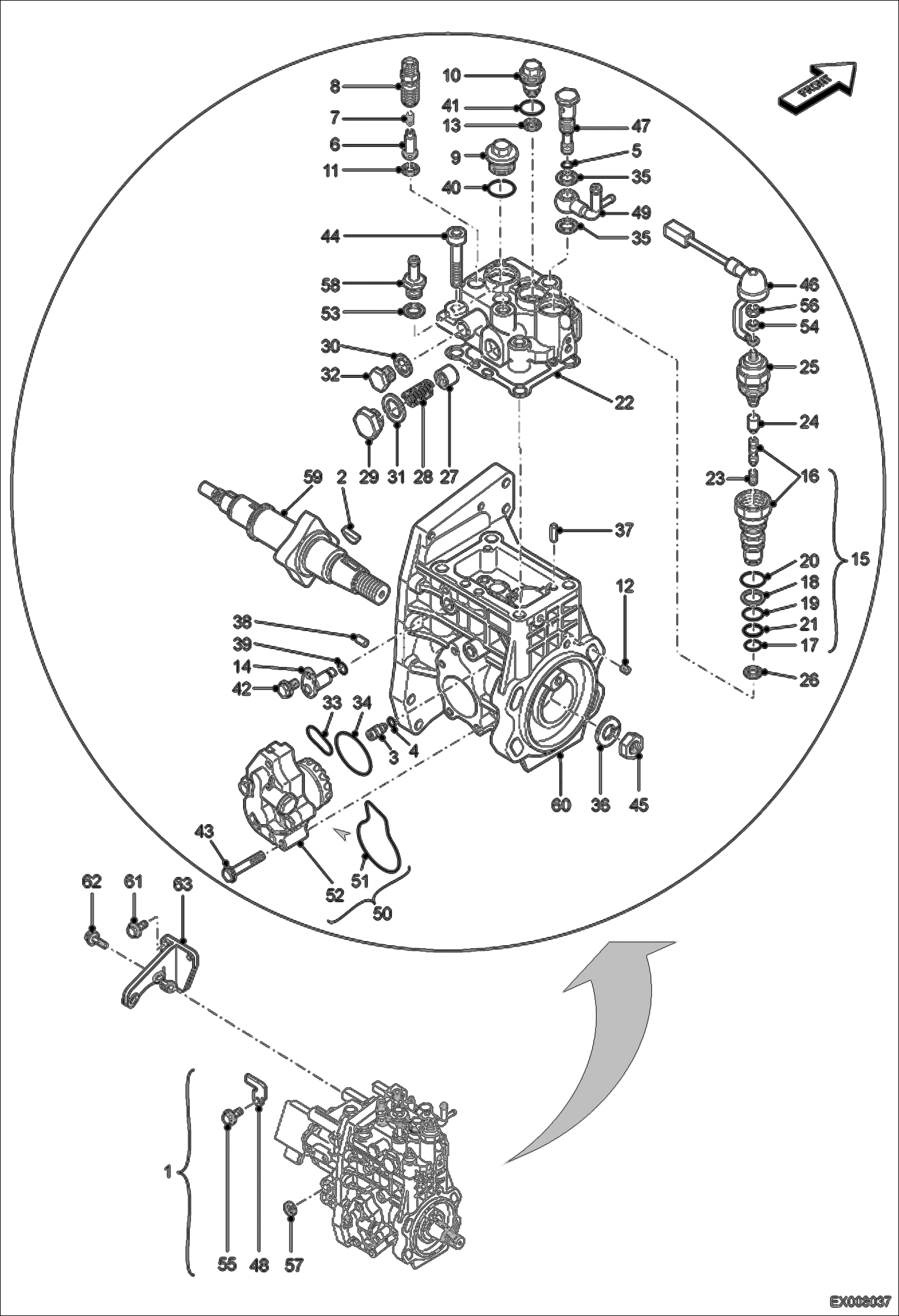

Запчасти Bobcat E55W SPEED CONTROL PLATE POWER UNIT

1

7007327

PUMP INJECTION ASSY W/Ref. 2-59

2

KEY NSS Was 7007165 - D

3

STOP NSS Was 7006912 - D

4

O-RING NSS Was 7006910 - D

5

O-RING NSS Was 7006910 - D

6

VALVE ASSY, DELIVERY NSS Was 7007125 - D

7

SPRING NSS

8

HOLDER, DELIVERY NSS

9

PLUG NSS

10

PLUG NSS

11

WASHER NSS

12

PLUG NSS

13

SEAL, PLUG NSS

14

FILTER NSS

15

TIMER, SET NSS - W/Ref. 16-21

16

TIMER ASSY NSS

17

O-RING NSS

18

RING, BACKUP NSS

19

O-RING NSS

20

SEAL NSS

21

RING, BACKUP NSS

22

SEAL, HEAD NSS

23

SPRING, TIMER NSS

24

CAP, TIMER NSS

25

VALVE, SOLENOID NSS

26

SEAL, TIMER NSS

27

PISTON NSS

28

SPRING NSS

29

PLUG NSS

30

SEAL, WASHER NSS

31

SEAL, WASHER NSS

32

PLUG NSS

33

O-RING NSS

34

O-RING NSS

35

SEAL, WASHER NSS

36

WASHER, SPRING NSS

37

PIN, PARALLEL NSS

38

PIN, PARALLEL NSS Was 7006919 - D

39

O-RING NSS

40

SEAL NSS

41

O-RING NSS

42

BOLT NSS

43

BOLT NSS

44

BOLT NSS

45

NUT, LOCK NSS

46

HARNESS NSS

47

COUPLER, JOINT NSS

48

BRACKET NSS

49

COUPLER, JOINT NSS

50

PUMP ASSY, FUEL FEED NSS - W/Ref. 51-52

51

O-RING NSS

52

PUMP, FUEL FEED NLA - Order Ref. 50

53

SEAL, WASHER NSS

54

WASHER NSS

55

BOLT NSS

56

NUT NSS

57

PLUG NSS

58

COUPLER JOINT, TUBELINE NSS

59

CAMSHAFT, FUEL NSS

60

HOUSING, PUMP NSS

61

7004087

BOLT PLATED M8X20

62

7004088

BOLT M8X30

63

7007124

BRACKET
