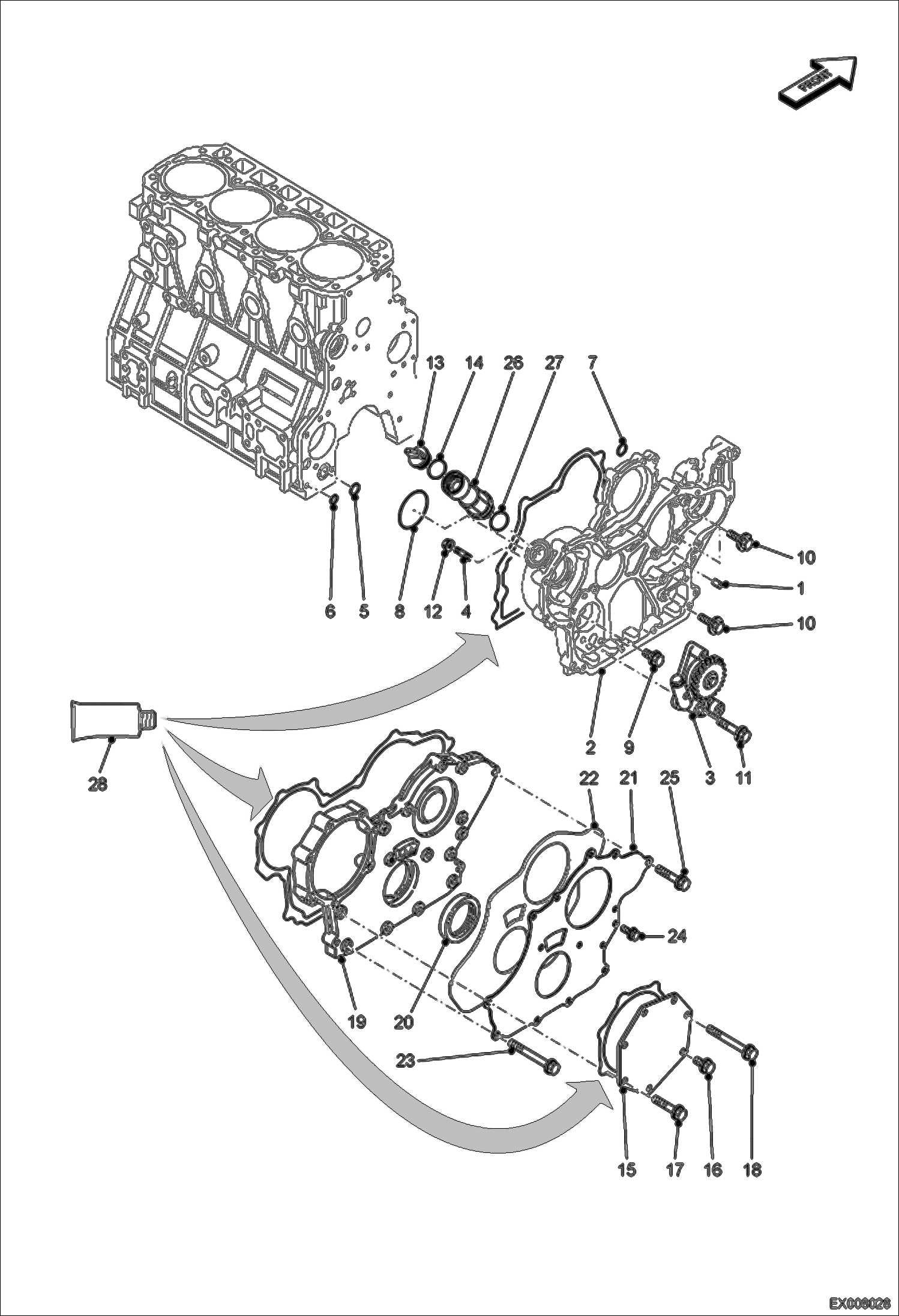

Запчасти Bobcat E55W GEARCASE POWER UNIT

1

7007851

PIN PARALLEL

2

7007163

HOUSING GEAR

3

7005075

PUMP OIL ASSY

4

7004104

BOLT STUD

5

7007913

O-RING Was 7007912 - B

6

7007909

O-RING

7

O-RING NSS

8

7004275

SEAL

9

7004086

BOLT PLATED M8X16

10

7004087

BOLT PLATED M8X20

11

7004080

BOLT PLATED M8X45

12

7004161

NUT

13

7005107

CAP LUB OIL

14

7007921

O-RING

15

7004422

COVER

16

7004087

BOLT PLATED M8X20

17

7004080

BOLT PLATED M8X45

18

7007186

BOLT M8X75 PLATED

19

7004404

HOUSING GEAR W/Ref. 20

20

7004274

SEAL OIL

21

7004332

COVER ASSY W/Ref. 22

22

7004212

FOAM

23

7004090

BOLT PLATED M8X70

24

7004086

BOLT PLATED M8X16

25

7004089

BOLT PLATED M8X40

26

7005109

TUBELINE

27

7007921

O-RING

28

7006924

GASKET LIQUID
