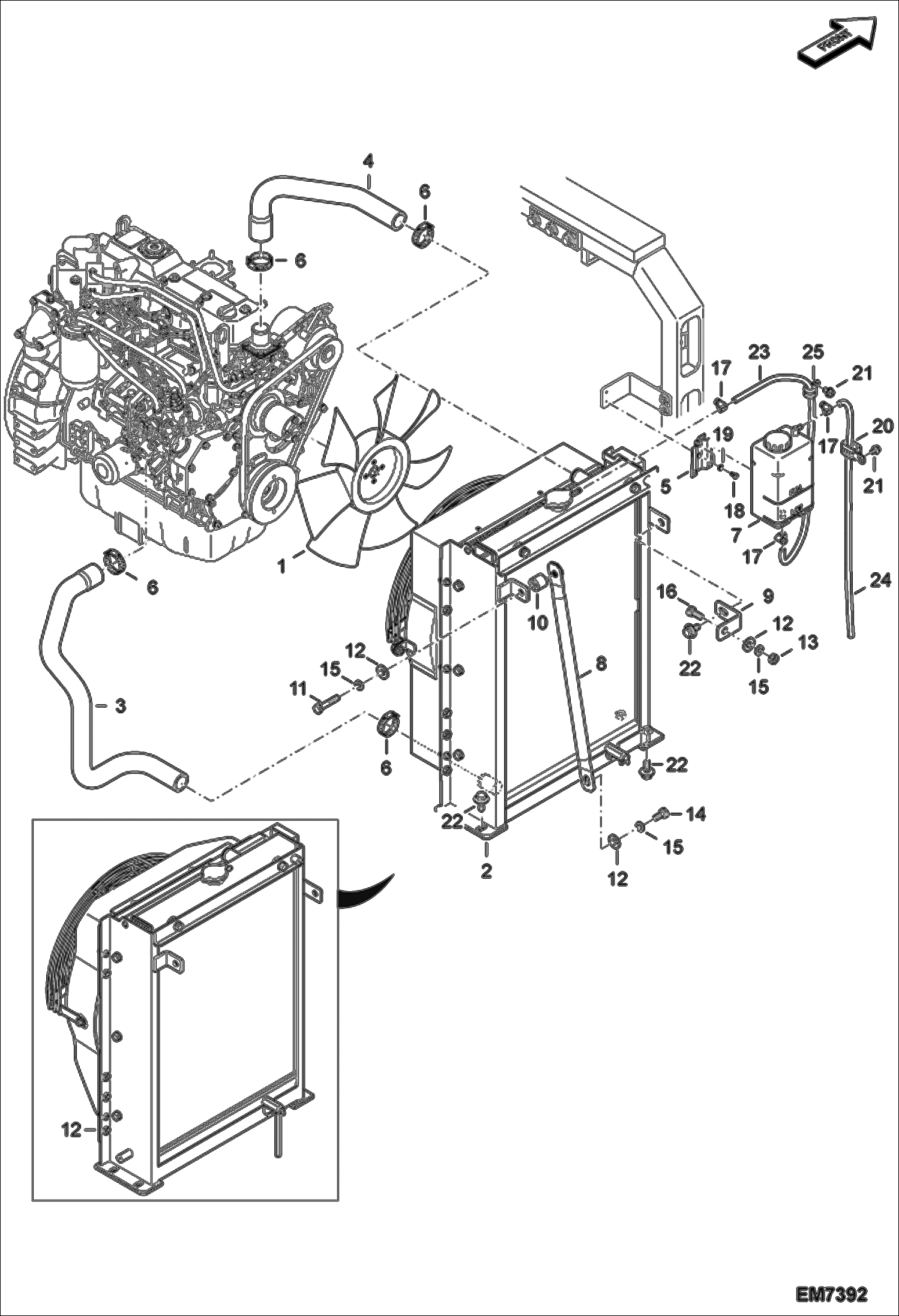

Запчасти Bobcat E55W ENGINE & ATTACHING PARTS (Radiator Mounting) POWER UNIT

1

7005878

FAN COOLING

2

7018645

RADIATOR ASSY See Illustration ENGINE & ATTACHING PARTS/ EM7393

2

7018646

RADIATOR ASSY See Illustration ENGINE & ATTACHING PARTS/ EM7393

3

7018647

HOSE, WATER

4

7018648

HOSE, WATER

5

7004823

BRACKET

6

7007977

CLAMP

7

7005637

TANK RESERVE

8

7005883

STRAP

9

7005719

BRACKET

10

7005578

COLLAR

11

7007686

BOLT

12

7004477

WASHER PLAIN

13

7007799

NUT

14

7007636

BOLT

15

7007836

WASHER SPRING M12

16

7007639

BOLT

17

7007973

CLAMP

18

7007603

BOLT

19

7007814

WASHER

20

7003902

CLIP

21

7005629

BOLT

22

7005124

BOLT, SET

23

7005819

HOSE WATER

24

7004795

TUBELINE WATER

25

7003894

CLIP
