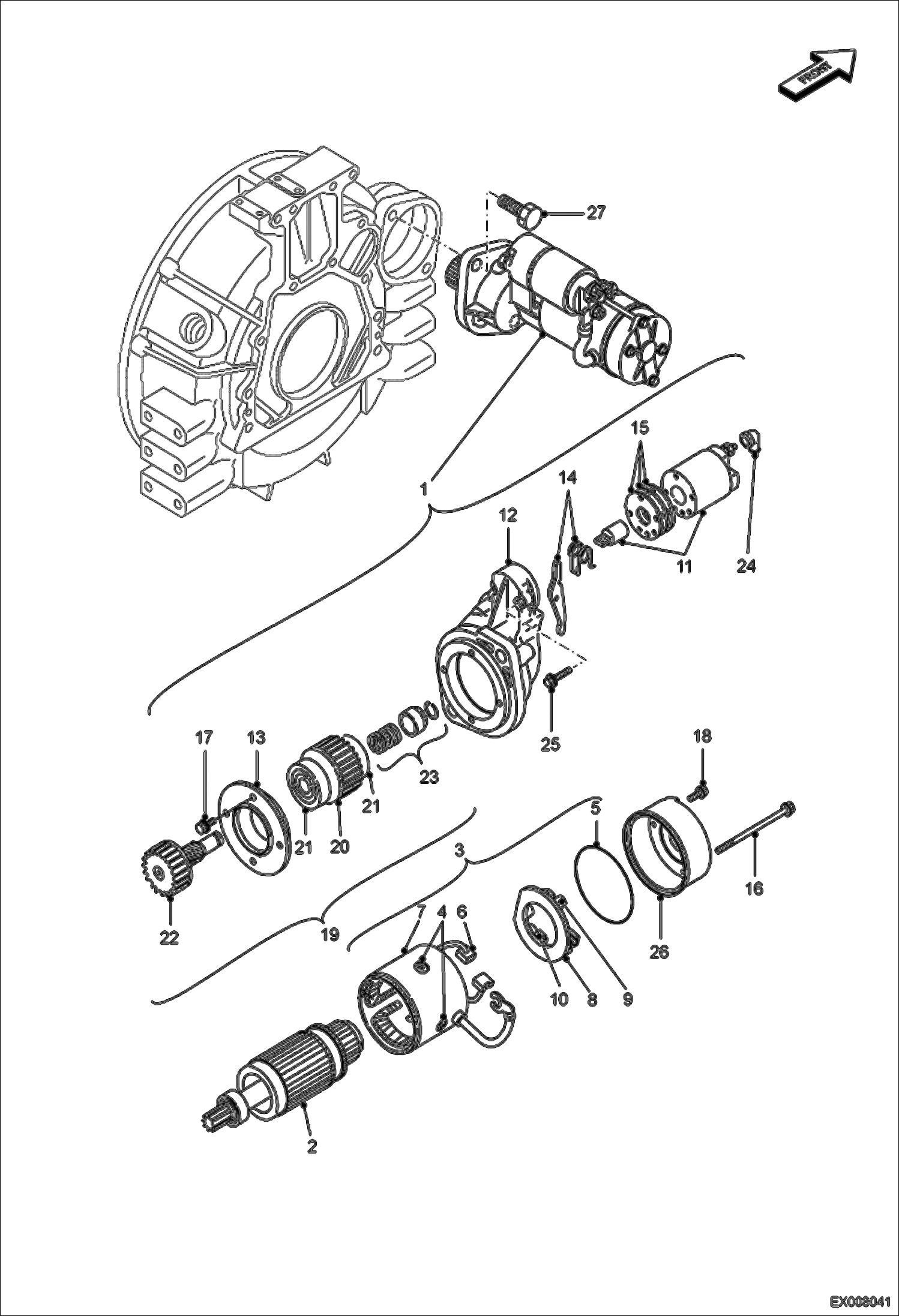

Запчасти Bobcat E55W STARTER ELECTRICAL SYSTEM

1

7007145

STARTER W/Ref. 2-26

2

7007146

ARMATURE ASSY

3

7007147

COIL ASSY FIELD W/Ref. 4-7

4

7007148

BOLT

5

7007149

O-RING

6

7007150

BRUSH positive

7

COIL, FIELD NLA - Order Ref. 3

8

7007152

HOLDER BRUSH W/Ref. 9-10

9

7007153

SPRING BRUSH

10

7007154

BRUSH - negative

11

7007155

SWITCH ASSY MAGNETIC

12

7007156

HOUSING GEAR

13

7007157

RETAINER

14

7007158

KIT SHIFT LEVER

15

7007159

COVER DUST

16

7007160

BOLT THROUGHT

17

7007161

BOLT M6X20

18

7007162

BOLT

19

7003977

PINION ASSY W/Ref. 20-23

20

7004329

CLUTCH ASSY W/Ref. 21

21

7003998

BEARING BALL

22

7004331

SHAFT PINION

23

7004397

KIT PINION STOP

24

7004423

COVER TERMINAL

25

7004082

BOLT

26

7007151

COVER REAR

27

7004083

BOLT M12X25
