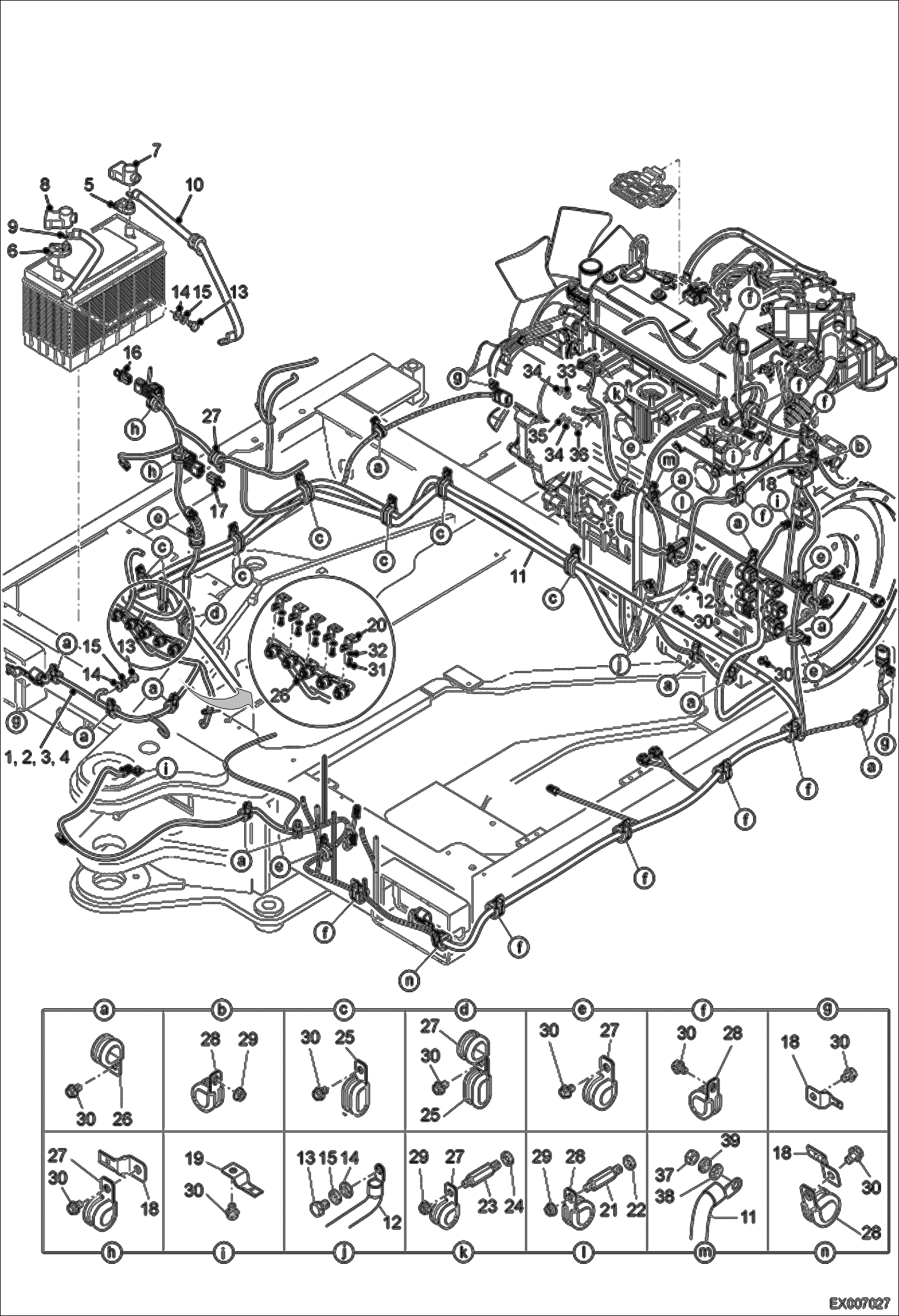

Запчасти Bobcat E55W ELECTRICAL (Engine) ELECTRICAL SYSTEM

1

7006070

HARNESS MAIN W/Ref. 2-4

2

7004913

RESITOR DIODE

3

7005030

RESISTOR DIODE ASSY 3A

4

7005627

RESITOR DIODE

5

7004917

TERMINAL BATTERY + positive

6

7008150

TERMINAL, BATTERY(-) negative

7

7004615

CAP BATT TML + positive

8

7004616

CAP BATT TML - negative

9

7004920

CABLE BATTERY-EARTH

10

7004924

CABLE BATT-BATT RY

11

7004922

CABLE BATT RELAY-STARTER

12

7005036

CABLE E/G EARTH

13

7007623

BOLT

14

7007818

WASHER, PLAIN M10

15

7007835

WASHER SPRING

16

7004896

LINK FUSIBLE

17

7005009

FUSIBLE LINK

18

7004825

BRACKET HOUSING

19

7004826

BRACKET, HOUSING

20

7004824

BRACKET HOUSING

21

7003871

BOLT STUD

22

7007835

WASHER SPRING

23

7003870

BOLT STUD

24

7007834

WASHER SPRING

25

7003902

CLIP

26

7003894

CLIP

27

7003895

CLIP

28

7003896

CLIP

29

7004561

NUT

30

7005629

BOLT

31

7007785

SCREW, M6X1.0X12

32

7007833

WASHER, SPRING

33

7007794

NUT

34

7007827

WASHER SPRING

35

7007810

WASHER

36

7007600

BOLT

37

7007796

NUT

38

7007816

WASHER

39

7007834

WASHER SPRING
