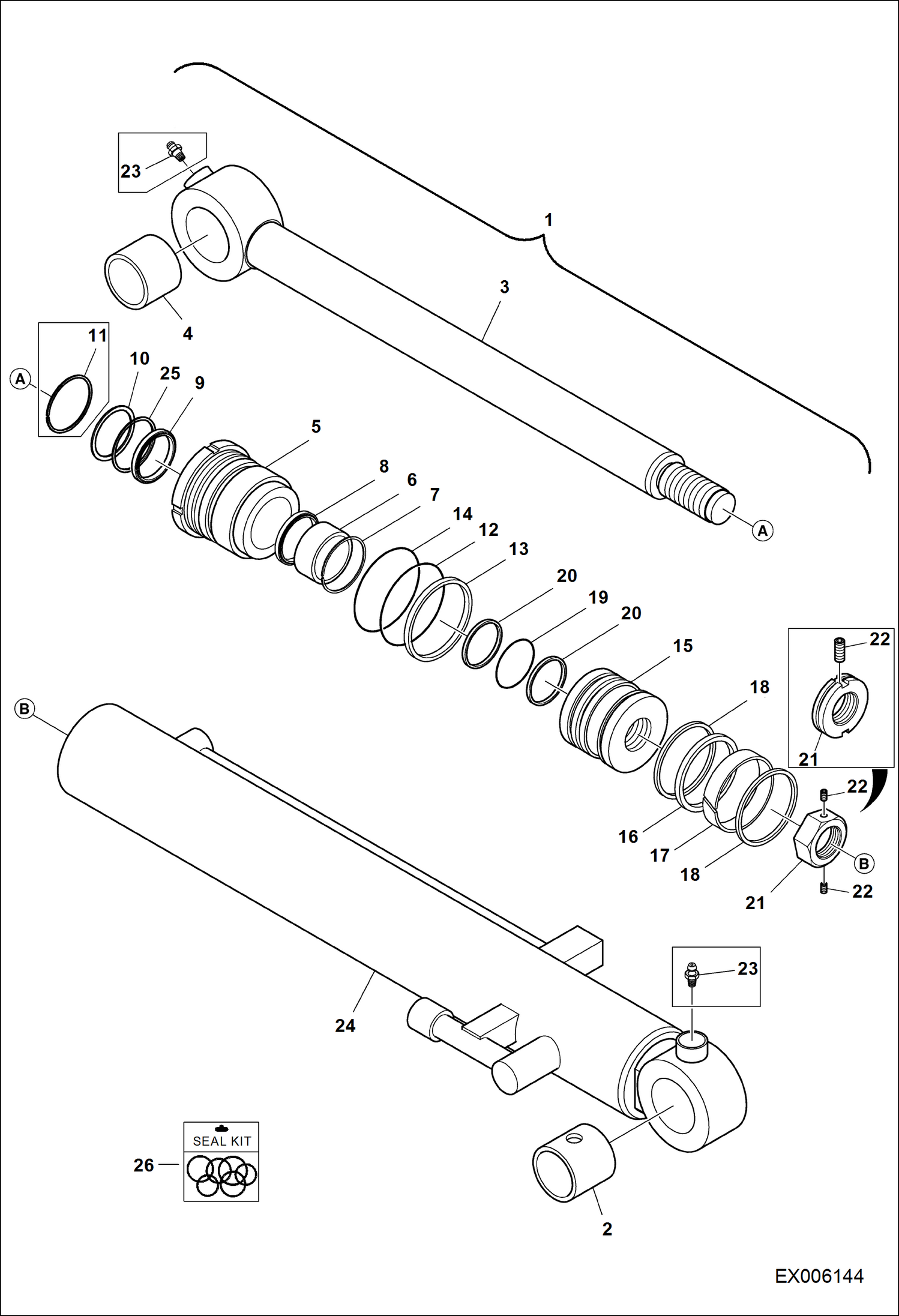

Запчасти Bobcat E55W BUCKET CYLINDER HYDRAULIC SYSTEM

1

7019008

CYLINDER, BUCKET W/Ref. 2-24 Was 7005718 - A

2

7007268

TUBELINE ASSY

3

7007269

ROD ASSY

4

7005752

BUSHING

5

7007270

COVER ROD

6

7004461

BUSHING DU

7

7007256

RING RETAINING

8

7007278

SEAL BUFFER

9

7003760

SEAL

10

7003790

WIPER DUST

11

7003721

RING RETAINING

12

7007938

O-RING

13

7003764

RING BACK-UP

14

7007939

ORING

15

7007271

PISTON

16

7003778

RING GLYD

17

7003782

RING WEAR

18

7003775

RING DUST

19

7007934

O-RING

20

7007969

RING BACK-UP

21

7003739

NUT PISTON

22

7007792

SCREW SET

23

6694227

FITTING, GREASE Was 7010247 - C

24

7005752

BUSHING

25

7007286

KIT, SEAL Ref. 8-10, 12-14 & 16-20
