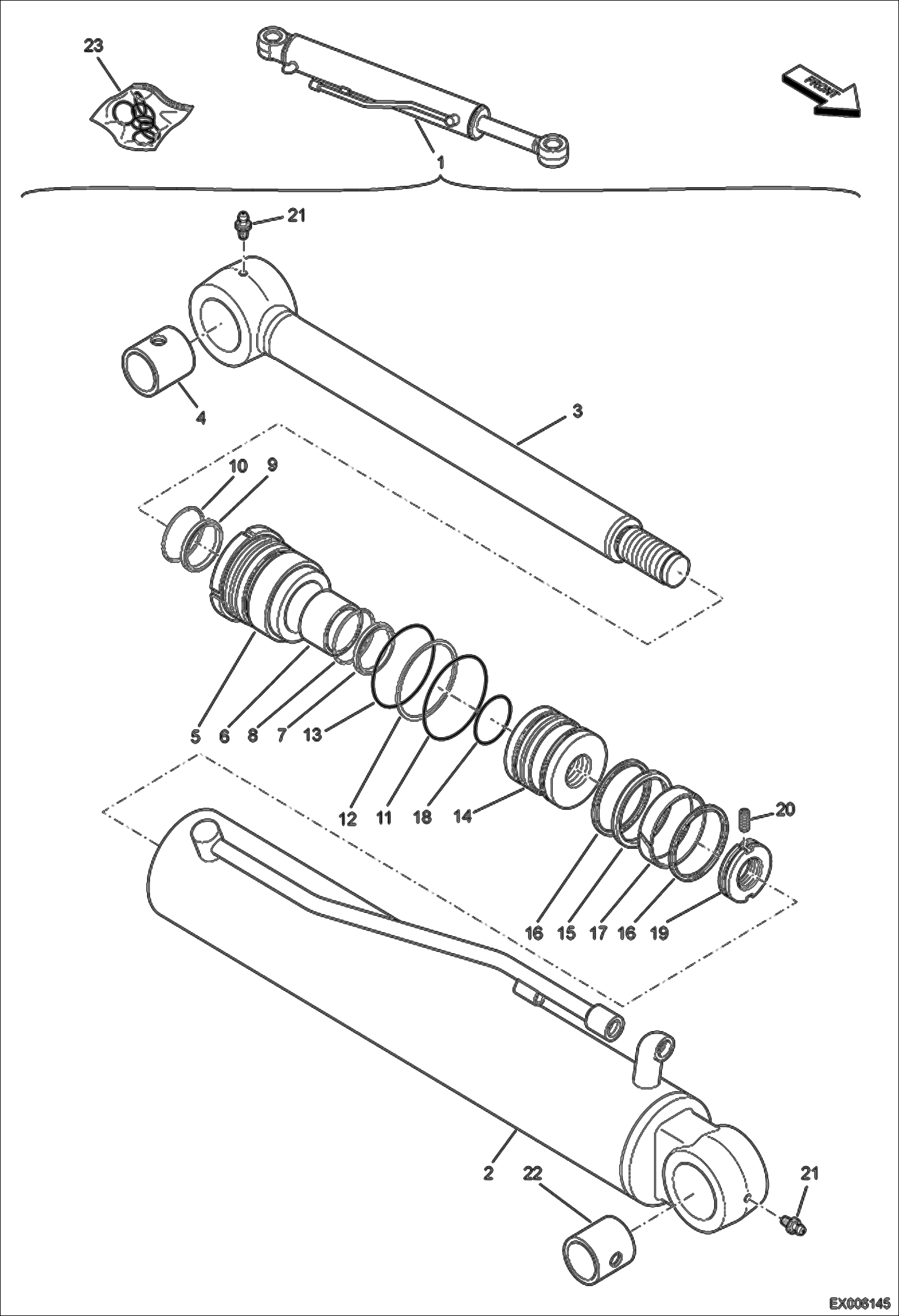

Запчасти Bobcat E55W BOOM SWING CYLINDER HYDRAULIC SYSTEM

1

CYLINDER, BOOM SWING NLA - W/Ref. 2-22 Was 7005725 - A

1

7020674

CYLINDER, BOOM SWING W/Ref. 2-22

2

7007265

TUBELINE ASSY

3

7007266

ROD ASSY

4

BUSHING NLA Was 7005751 - A

4

7005752

BUSHING

5

7007267

COVER ROD

6

7007280

BUSHING DU

7

7003760

SEAL

8

7003768

RING BACK-UP

9

7003790

WIPER DUST

10

7003721

RING RETAINING

11

7007942

O-RING

12

7007279

RING BACK-UP

13

7007944

O-RING

14

7007599

PISTON

15

7007277

RING GLYD

16

7007255

RING DUST

17

7007257

RING WEAR

18

7003757

O-RING

19

7003738

NUT PISTON

20

7007792

SCREW SET

21

6694227

FITTING, GREASE Was 7010247 - C

22

BUSHING NLA Was 7005751 - A

22

7005752

BUSHING

23

7007284

KIT SEAL
