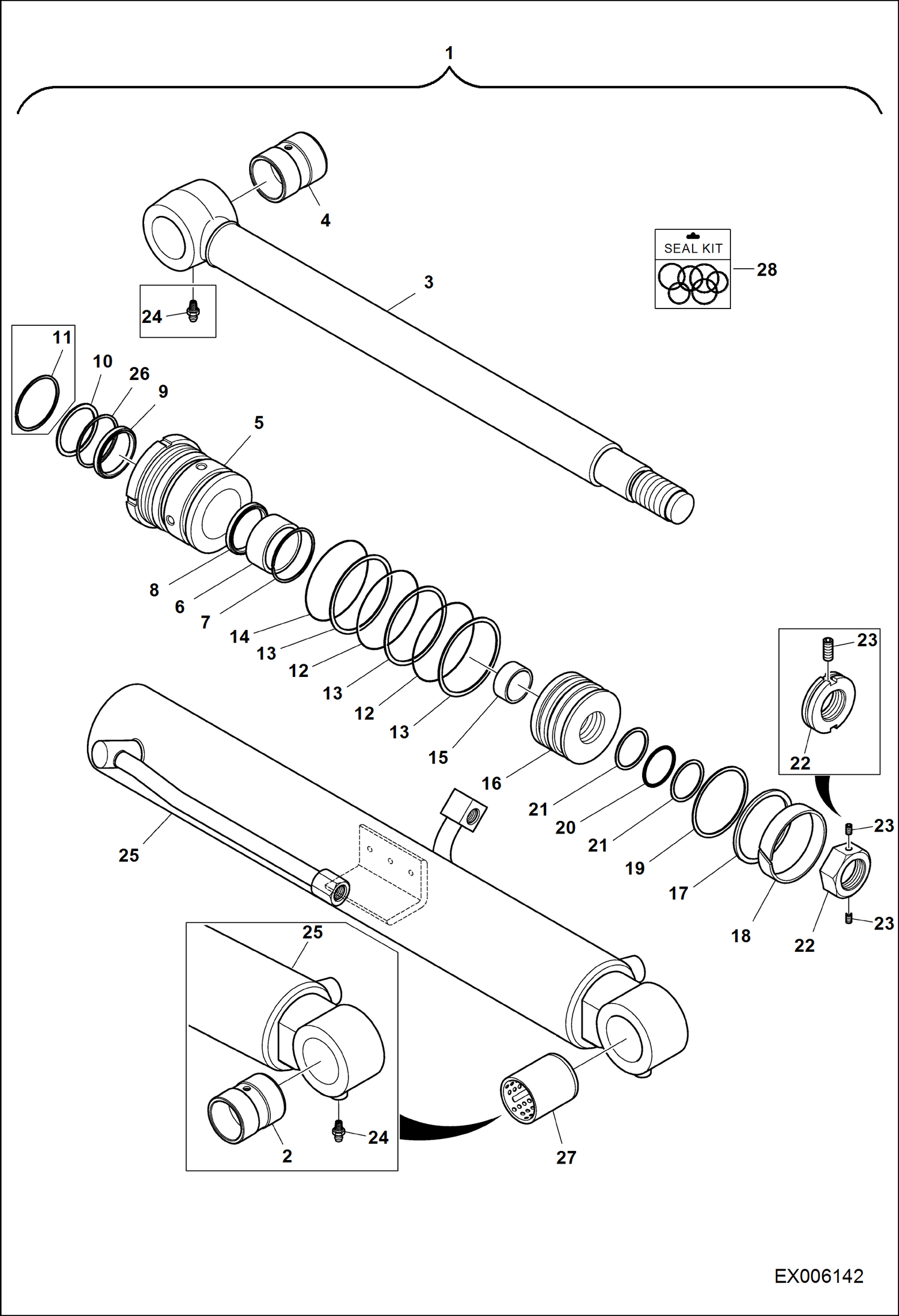

Запчасти Bobcat E55W BOOM CYLINDER (W/Lock Valve) HYDRAULIC SYSTEM

1

7019007

CYLINDER, BOOM W/Ref. 2-25 Was 7005867 - A

2

7007330

TUBELINE ASSY

3

7007275

ROD ASSY

4

7005750

BUSHING

5

7007276

COVER ROD

6

7003853

BUSHING DU

7

7003723

RING RETAINING

8

7003787

SEAL BUFFER

9

7003761

SEAL

10

7003865

WIPER DUST

11

7003864

RING RETAINING

12

7007947

O-RING

13

7003762

RING BACK-UP Was 7012803 - A

14

7007950

O-RING

15

7003727

RING CUSHION

16

7003847

PISTON

17

7003776

RING GLYD

18

7003796

RING WEAR

19

7023770

RING Was 7003795 - B

20

7007935

O-RING

21

7007970

RING BACK-UP

22

7003736

NUT

23

7007792

SCREW SET

24

6694227

FITTING, GREASE Was 7010247 - C

25

7005750

BUSHING

26

7007287

KIT SEAL Ref. 8-10, 12-14 & 17-21
