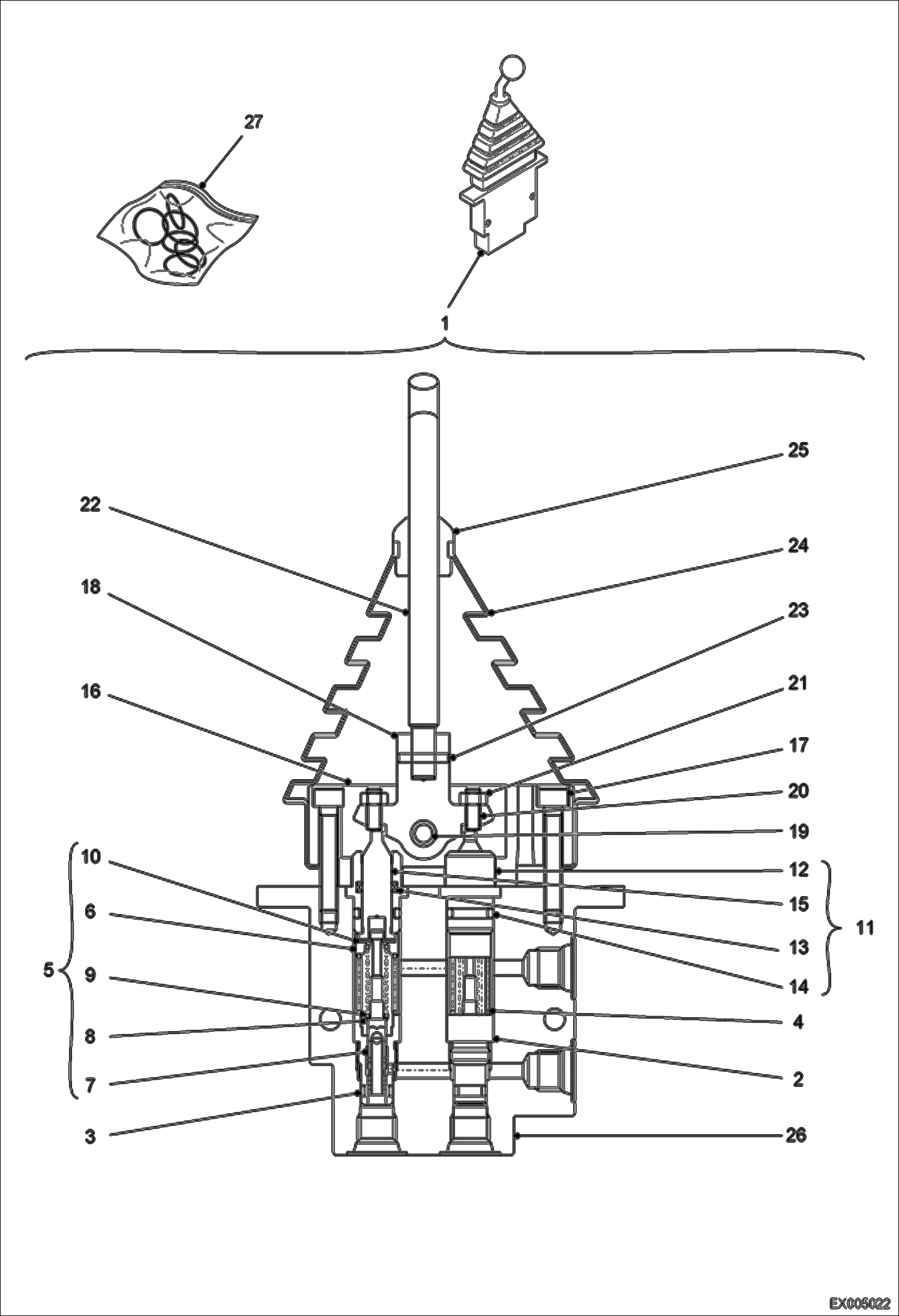

Запчасти Bobcat E55W JOYSTICK VALVE (Blade) HYDRAULIC SYSTEM

1

7006024

VALVE DOZER REMOCON W/Ref. 1-26

2

7003799

PLUG

3

7007903

O-RING

4

7006816

SPRING

5

7007043

KIT SPOOL Ref. 6-10

6

SEAT, SPRING NLA - Order Ref. 5

7

SPOOL NLA - Order Ref. 5

8

7008032

SEAT SPRING

9

7006817

SPRING

10

7004971

STOP

11

7007044

PLUG KIT Ref. 12-15

12

7003800

PLUG

13

7003794

SEAL ROD

14

7007909

O-RING

15

7003841

ROD PUSH

16

7006891

COVER

17

7007729

BOLT

18

7003842

GUIDE

19

7006892

PIN

20

7003731

BOLT

21

7007803

NUT

22

7003809

LEVER

23

7007856

PIN SPRING

24

7006825

BOOT

25

7003712

BUSHING

26

BODY NLA - Order Ref. 1

27

7006826

KIT, SEAL
