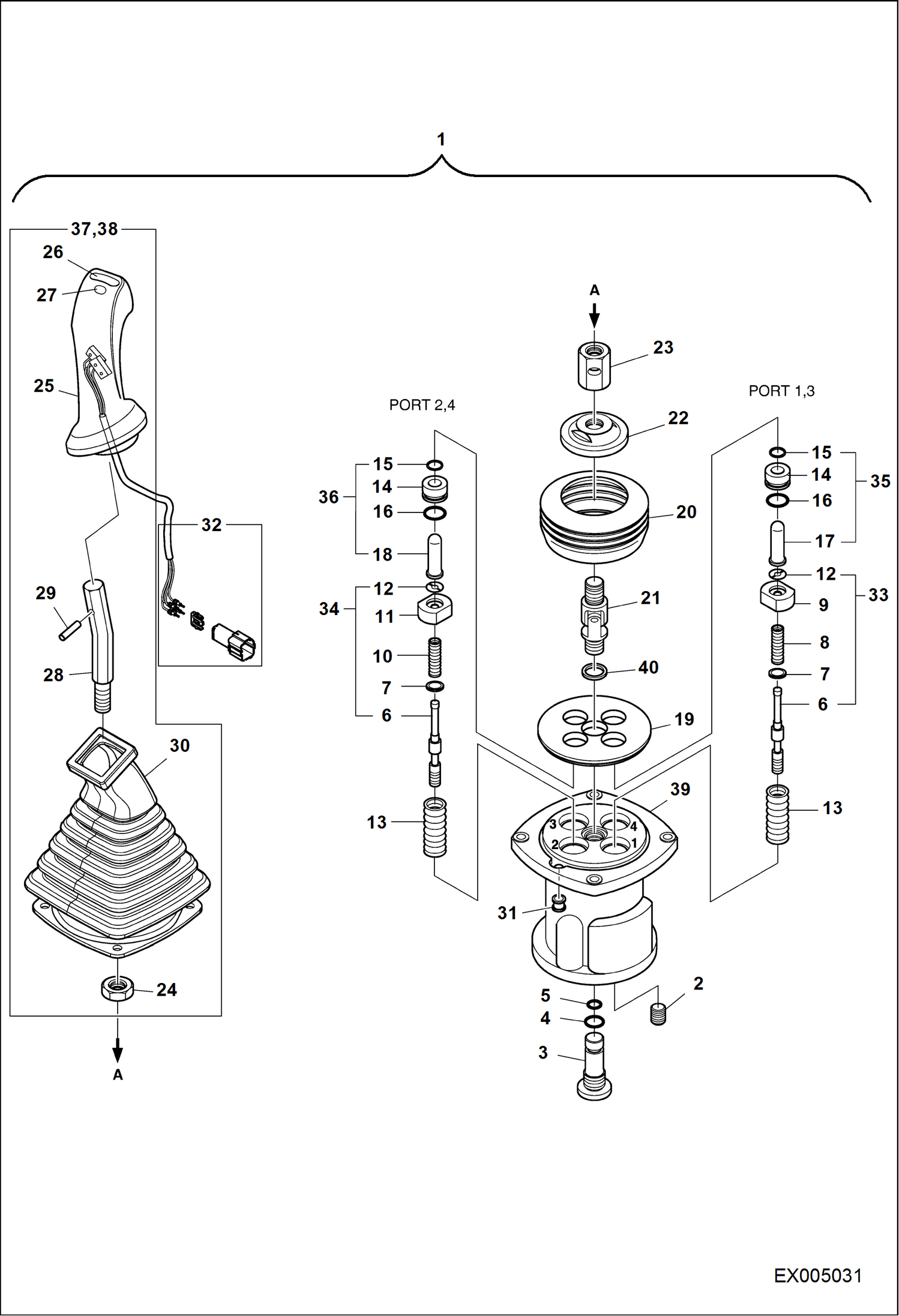

Запчасти Bobcat E55W JOYSTICK VALVES (RH) (LH) HYDRAULIC SYSTEM

1

7005919

VALVE REMOCON LH W/Ref. 2-39

1

7005918

VALVE REMOCON RH W/Ref. 2-39

2

7004671

PLUG PT 1/8

3

7006852

PLUG PF3/8

4

7007909

O-RING

5

7007931

ORING

6

SPOOL NLA - Order Ref. 33-34

7

7003716

SHIM

8

SPRING NLA - Order Ref. 33

9

7003837

SEAT SPRING

10

SPRING NLA - Order Ref. 34

11

SEAT, SPRING NLA - Order Ref. 34

12

7003927

STOP

13

7003743

SPRING

14

PLUG NLA - Order Ref. 35-36

15

7006819

SEAL ROD

16

7007913

O-RING

17

7003840

ROD PUSH

18

ROD, PUSH NLA - Order Ref. 36

19

7003819

PLATE

20

7003750

BOOT

21

7003749

COUPLER JOINT ASSY

22

7003822

PLATE SWASH

23

7003733

NUT HEX

24

7007800

NUT M14

25

7006820

HANDLE ASSY LH W/Ref. 26-27

25

7006821

HANDLE ASSY RH W/Ref. 26-27

26

7003752

CAP PEANUT

27

7003751

CAP ROUND

28

7003753

BAR HANDLE

29

7007859

PIN SPRING

30

7006822

BOOT

31

7003711

BUSHING

32

7006823

CONNECTOR ASSY

33

7007016

KIT SPOOL PORT 1 & 3 Ref. 6-9 & 12

34

7007017

KIT SPOOL PORT 2 & 4 Ref. 6-7 & 10-12

35

7007018

PLUG KIT PORT 1 & 3 Ref. 14-17

36

7007019

PLUG KIT PORT 2 & 4 Ref. 14-16 & 18

37

7007020

HANDLE KIT LH Ref. 24-30

38

7007021

HANDLE KIT RH Ref. 24-30

39

CASE NLA - Order Ref. 1
