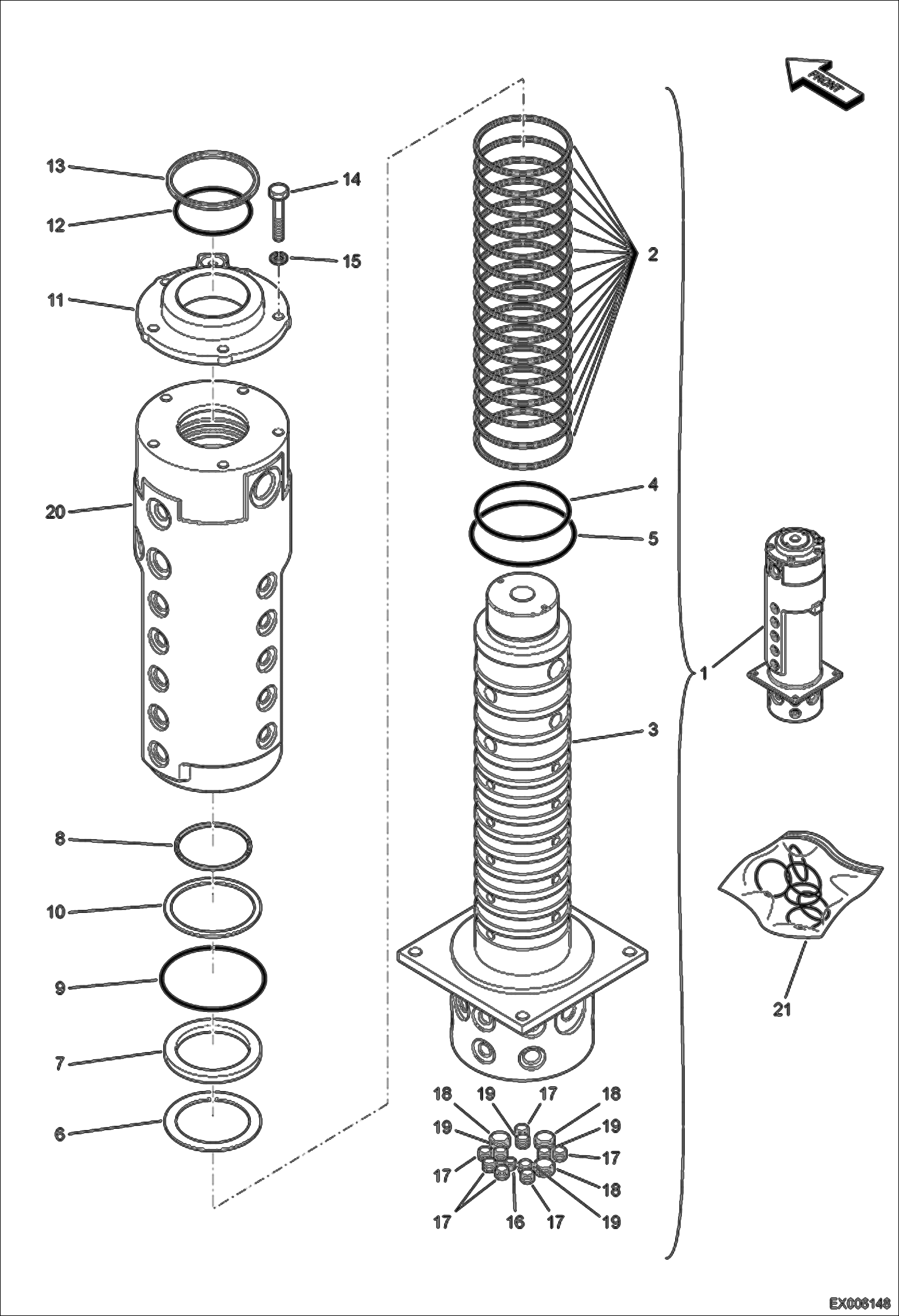

Запчасти Bobcat E55W SWIVEL JOINT HYDRAULIC SYSTEM

1

JOINT, SWIVEL NLA - W/Ref. 2-20 Was 7008052

1

7023672

JOINT, SWIVEL W/Ref. 2-20

2

7007316

SEAL ROTARY

3

7007317

SPINDLE

4

7007928

O-RING

5

7007929

O-RING

6

7007318

SHIM

7

7007319

PLATE THRUST

8

7007880

RING RETAINING

9

7007952

O-RING

10

7007320

SHIM

11

7007321

COVER

12

7007938

O-RING

13

7007322

WIPER DUST

14

7007656

BOLT

15

7007834

WASHER SPRING

16

7004671

PLUG PT 1/8

17

7004674

PLUG PT3/8

18

7004675

PLUG

19

7004673

PLUG

20

BODY, SWIVEL JOINT NLA - Order Ref. 1

21

7007323

KIT SEAL Ref. 2, 4-5, 9 & 12-13
