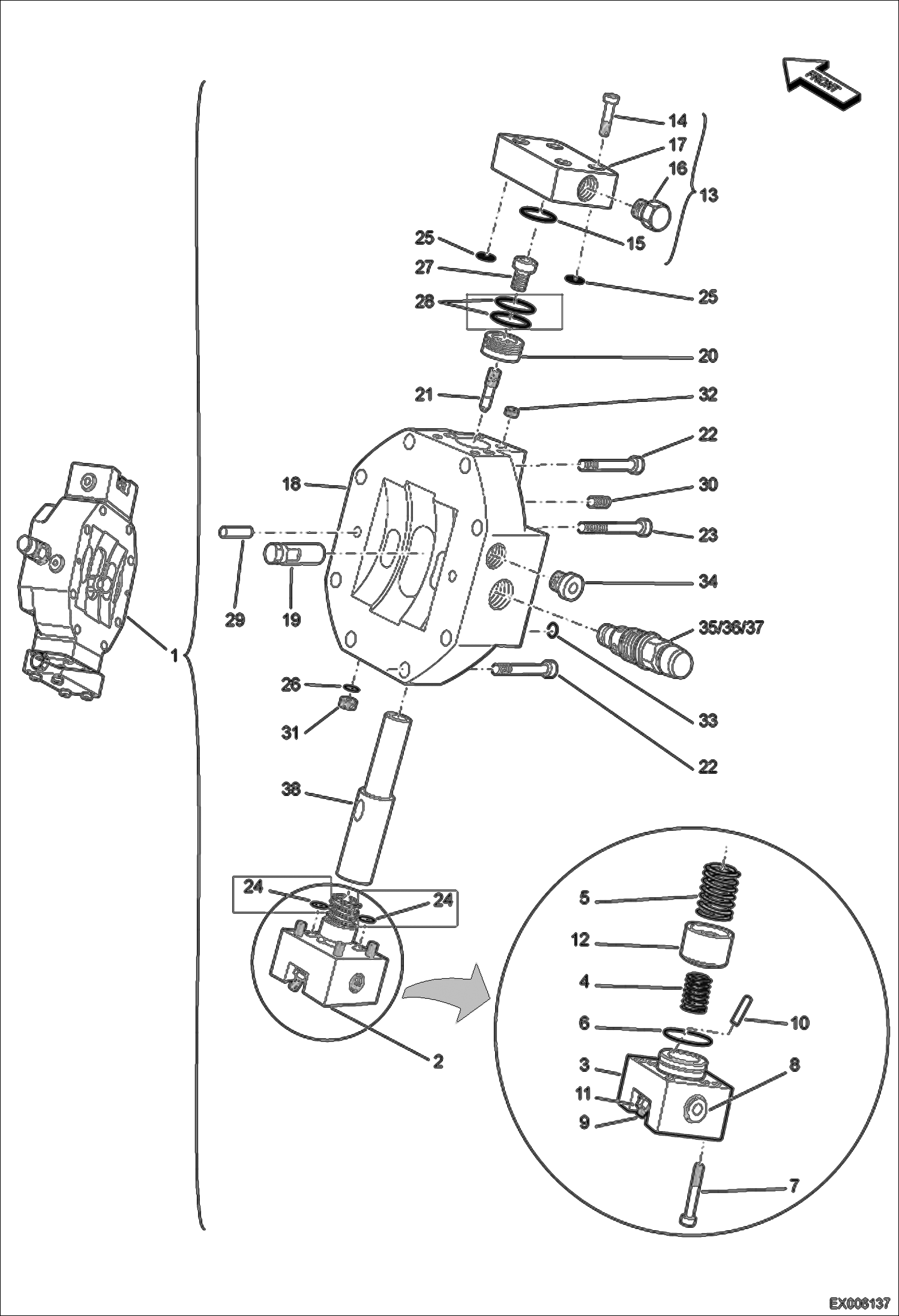

Запчасти Bobcat E55W DRIVE MOTOR (Cover Parts) HYDRAULIC SYSTEM

1

7004375

CONTROL W/Ref. 2-38

2

7004399

CONTROL W/Ref. 3-12

3

7004354

HOUSING CONTROL

4

7004199

SPRING PRESSURE

5

7004191

SPRING PRESSURE

6

7004269

O-RING

7

7004134

SCREW SOCKET HEAD

8

7004131

SCREW LOCKING

9

7004169

PIN THREADED

10

7004179

PIN CYLINDER

11

7004150

NUT SEAL LOCK

12

7003999

BUSHING ADJUSTING

13

7004437

COVER ASSY W/Ref. 14-17

14

7004139

SCREW SOCKET HEAD

15

7004263

O-RING

16

7004131

SCREW LOCKING

17

7004436

COVER

18

PLATE, PORT NLA - Order Ref. 1

19

7004415

TRUNNION POSITIONING

20

PISTON NLA Was 7004439 - A

20

7023675

PISTON

21

7004180

PIN THREADED

22

7004135

SCREW SOCKET HEAD

23

7004136

SCREW SOCKET HEAD

24

7006818

ORING

25

7004262

O-RING

26

7004264

O-RING

27

7007757

BOLT SOCKET Was 7004137 - A

28

7004272

RING SQUAR

29

7004165

PIN CYLINDER

30

7004283

PLUG

31

7004309

PLUG

32

7004284

PLUG

33

7004265

O-RING

34

7004133

SCREW LOCKING

35

VALVE, RELIEF NLA - W/Ref. 36-37 Was 7004346 - A

35

7023676

VALVE, RELIEF W/Ref. 36-37

36

7004273

KIT SEAL

37

7004420

CAP

38

7004440

PISTON POSITIONING
