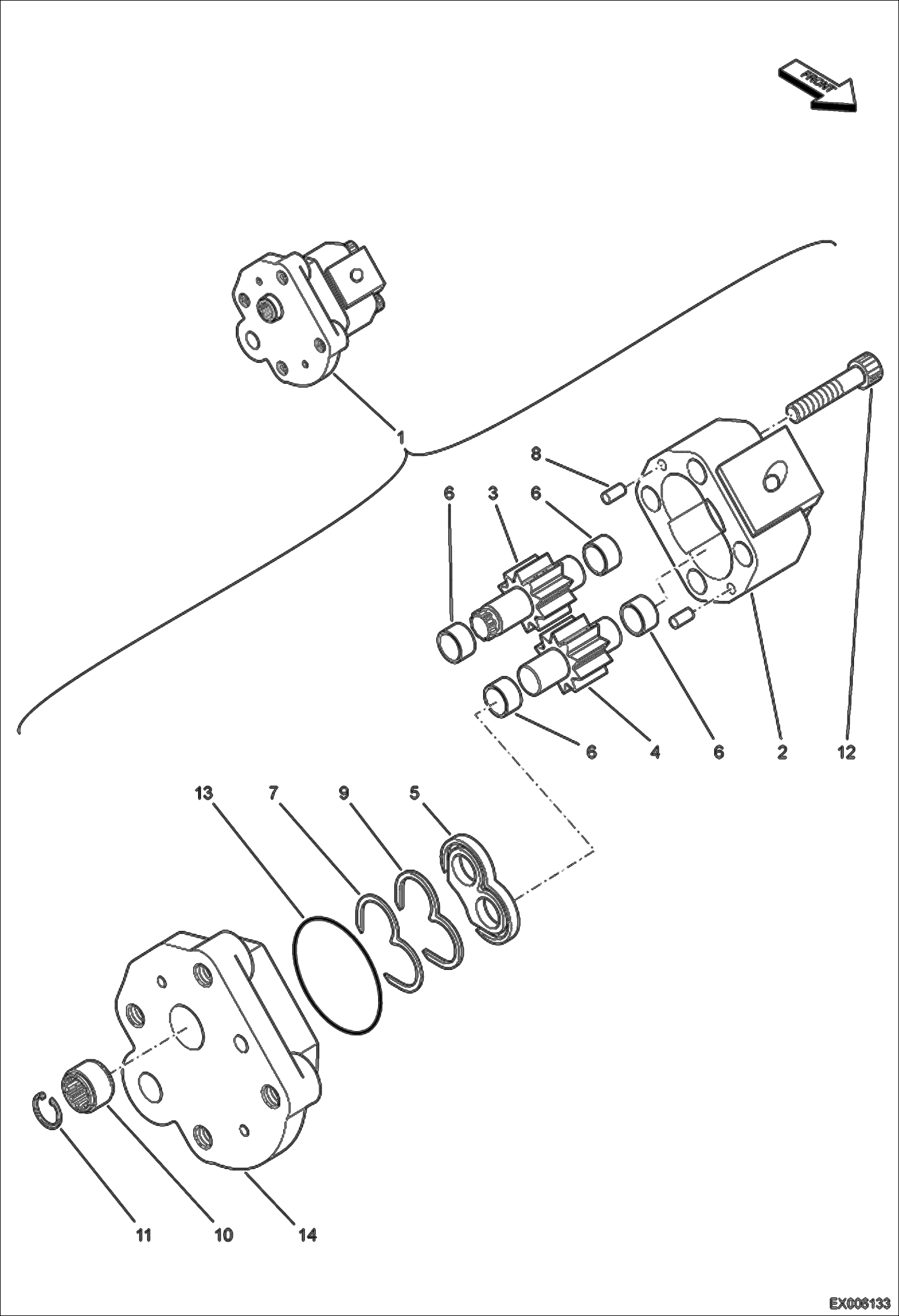

Запчасти Bobcat E55W GEAR PUMP (Small) HYDRAULIC SYSTEM

1

7003806

PUMP GEAR W/Ref. 2-14

2

7004350

HOUSING

3

7004360

GEAR DRIVE

4

7004361

GEAR IDLE

5

7004387

PLATE

6

7004213

BEARING

7

7004239

RING BACK-UP

8

7007849

PIN PARALLEL

9

7004242

RING SQUARE

10

7004393

COUPLER

11

7007881

RING RETAINING

12

7007741

BOLT SOCKET HEAD M8X45

13

7004651

O-RING

14

7004447

FRAME
