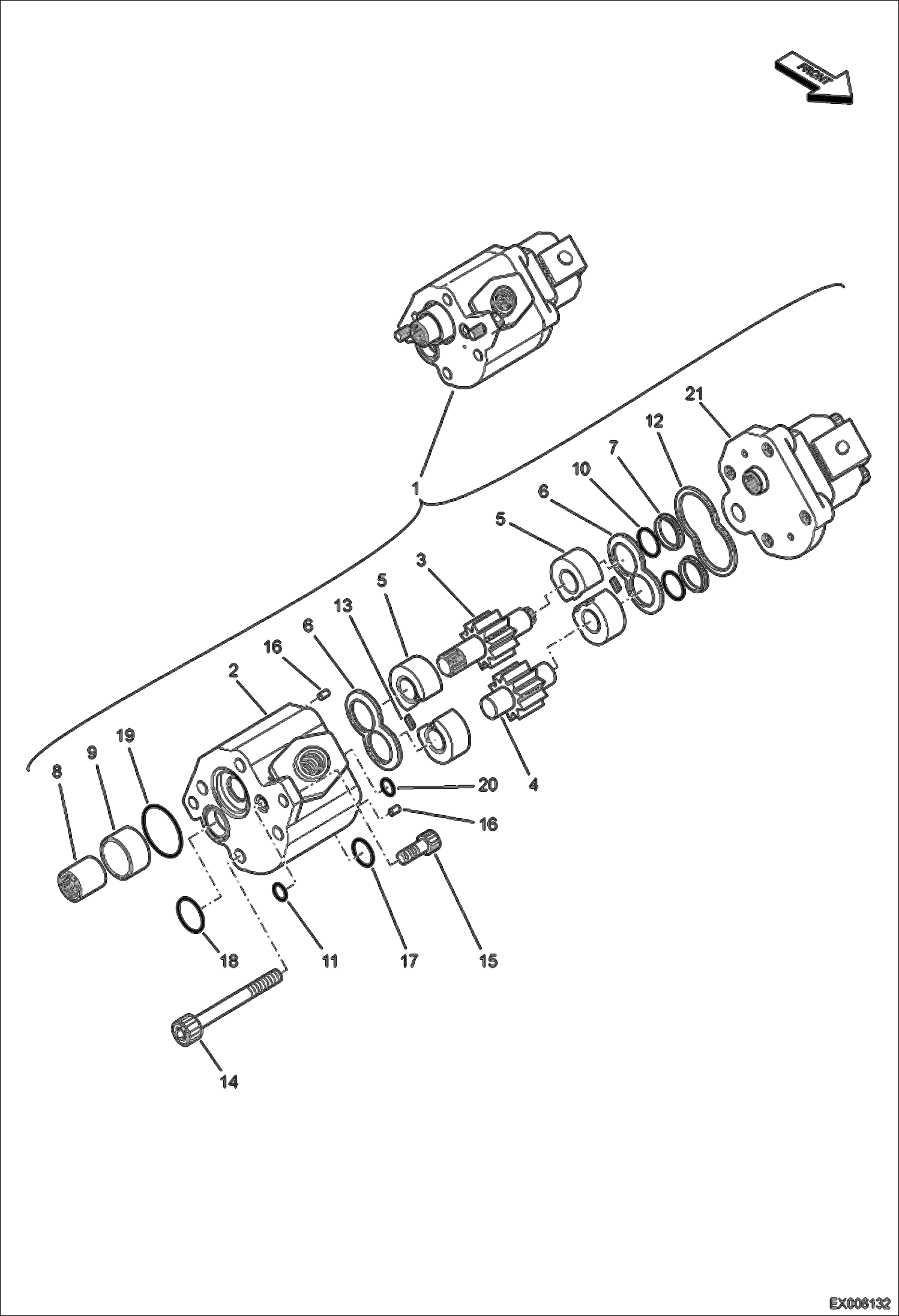

Запчасти Bobcat E55W GEAR PUMP HYDRAULIC SYSTEM

1

7007288

PUMP GEAR W/Ref. 2-21

2

7007281

HOUSING GEAR

3

7006955

GEAR DRIVING

4

7006954

GEAR IDLE

5

7006961

PLATE SIDE ASSY

6

7004391

PLATE

7

7004416

GUIDE

8

7004392

COUPLER

9

7004369

BUSHING

10

7004220

O-RING

11

7007905

O-RING

12

7004240

RING COUPLER

13

7004241

RING COUPLER

14

7007756

BOLT M10X90

15

7007746

BOLT HEX SOCKET M10X5L

16

7007849

PIN PARALLEL

17

7004647

O-RING

18

7004648

O-RING

19

7004650

O-RING

20

7004644

O-RING

21

7003806

PUMP GEAR See Illustration GEAR PUMP/ EX006133
