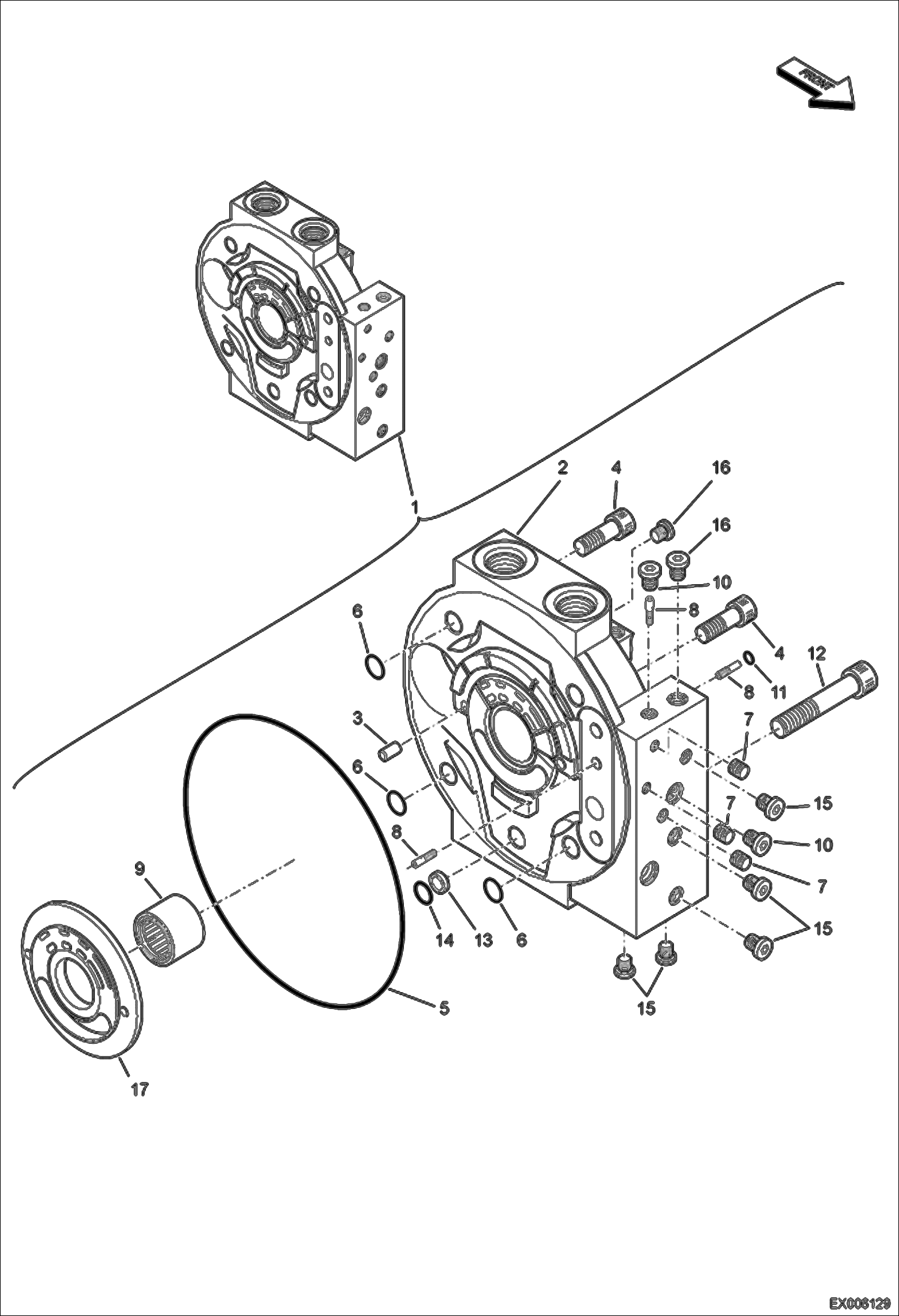

Запчасти Bobcat E55W HYDROSTATIC PUMP (Cover) HYDRAULIC SYSTEM

1

7004426

COVER ASSY W/Ref. 2-17

2

7004427

COVER

3

7007850

PIN PARALLEL

4

7007758

BOLT SOCKET HEAD M12X30L

5

7004225

O-RING

6

7004224

O-RING

7

7004283

PLUG

8

7004394

ORIFICE

9

7003984

BEARING

10

7004285

PLUG

11

7007903

O-RING

12

7007765

BOLT SOCKET HEAD M12X55

13

7004442

FILTER

14

7007873

RING SNAP

15

7004284

PLUG

16

7004297

PLUG ASSY PF1/4

17

7004381

PLATE CONTROL
