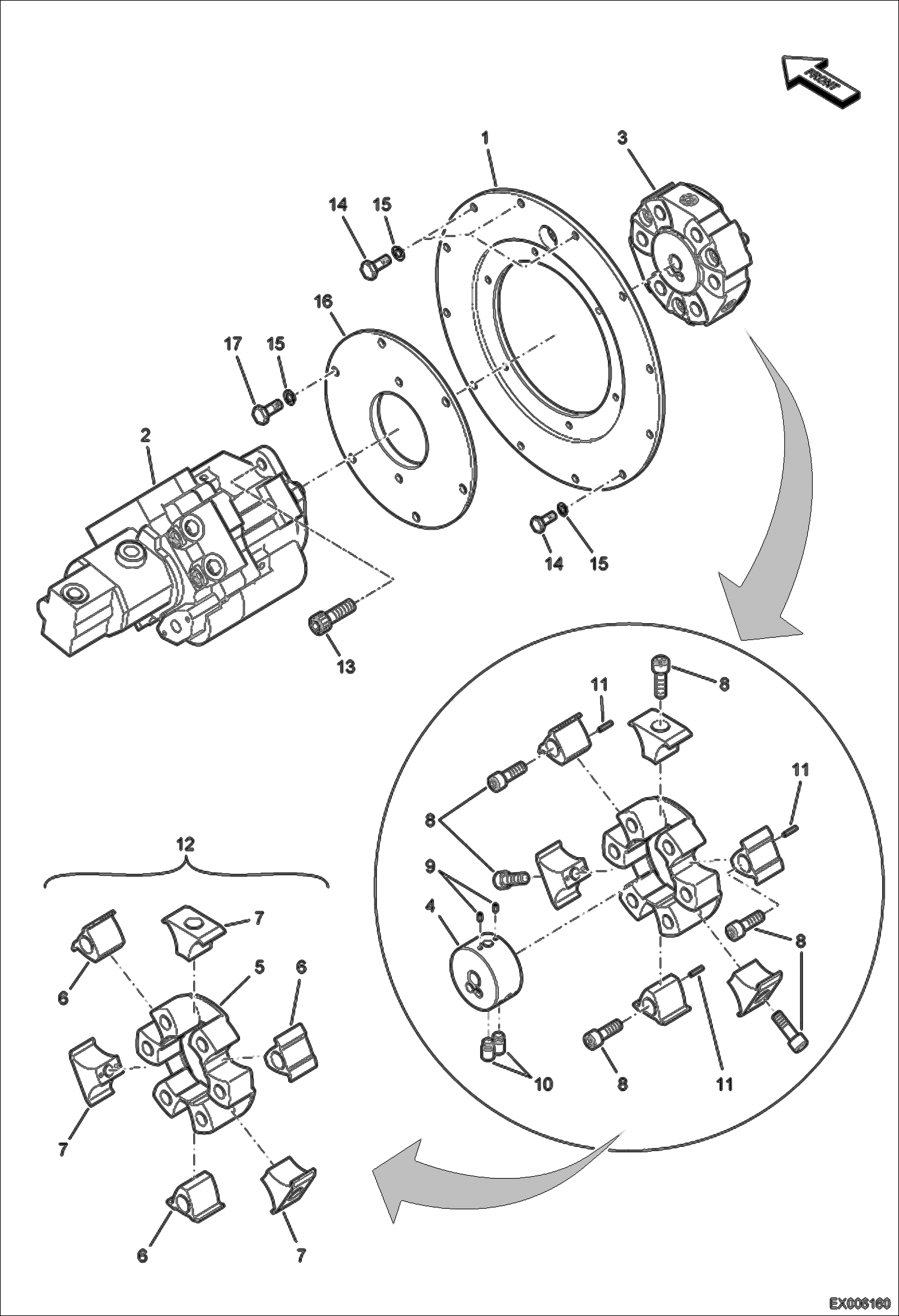

Запчасти Bobcat E55W HYDROSTATIC PUMP (Mounting) HYDRAULIC SYSTEM

1

7004854

COVER PUMP

2

7004964

PUMP ASSY See Illustration HYDROSTATIC PUMP/ EX006125

3

7004969

COUPLER ASSY W/Ref. 4-12

4

HUB NLA - Order Ref. 3

5

7006813

FILTER

6

INSERT NLA - Order Ref. 12

7

INSERT NLA - Order Ref. 12

8

7006815

KIT SOCKET BOLT 6EA

9

BOLT, CLAMPING NLA - Order Ref. 3

10

PIN, SPRING NLA - Order Ref. 3

11

PIN, SPRING NLA - Order Ref. 3

12

7006814

FILTER KIT Ref. 5-7

13

7007759

BOLT SOCKET M12X30

14

7007630

BOLT

15

7007835

WASHER SPRING

16

7004855

COVER

17

7007626

BOLT
