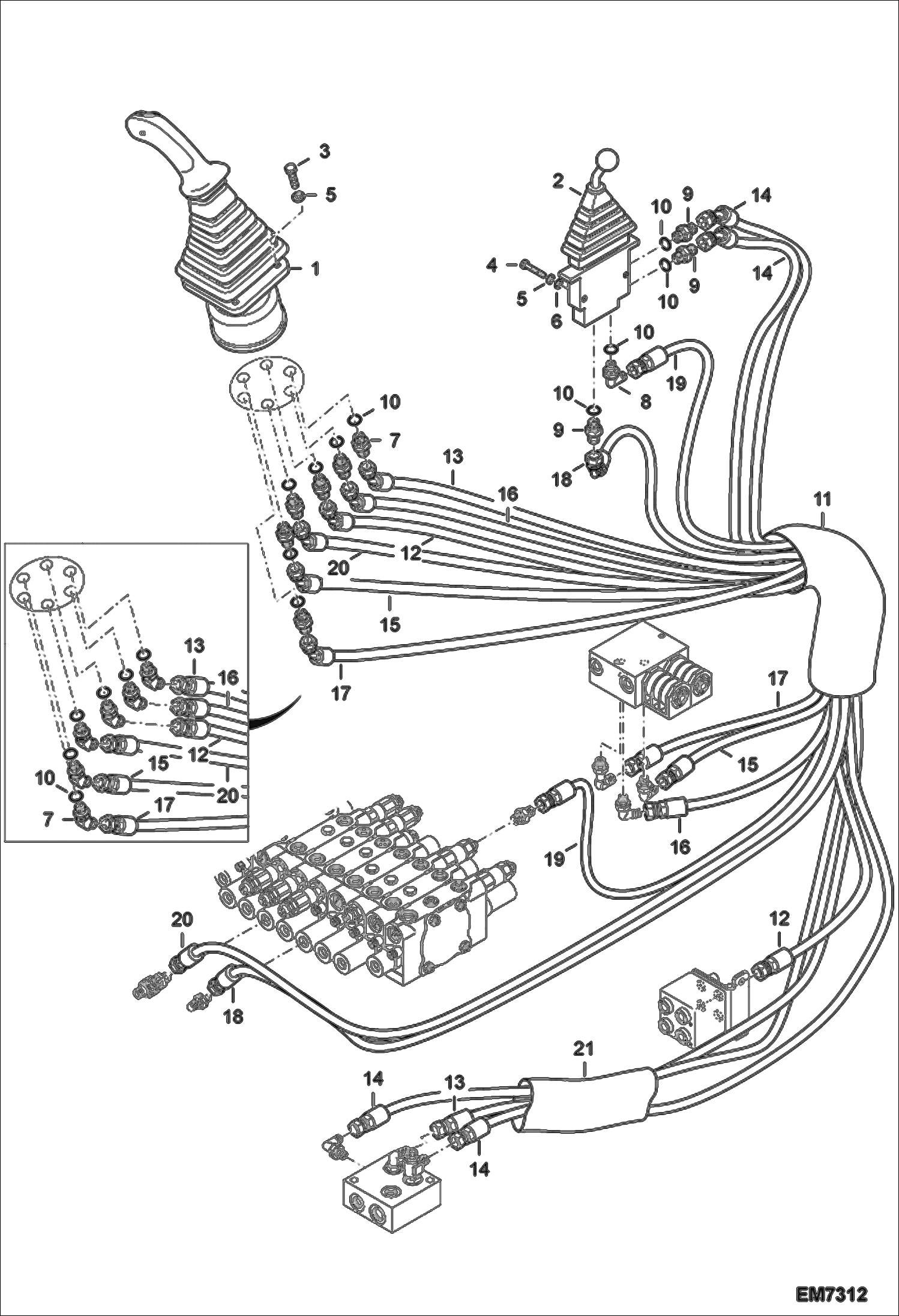

Запчасти Bobcat E55W HYDRAULIC PILOT CIRCUITRY (LH Joystick) (Blade Joystick) HYDRAULIC SYSTEM

1

7005919

VALVE REMOCON LH See Illustration JOYSTICK VALVES/ EX005031

2

7006024

VALVE DOZER REMOCON See Illustration JOYSTICK VALVE/ EX005022

3

7007609

BOLT

4

7007651

BOLT

5

7007833

WASHER, SPRING

6

7007814

WASHER

7

7004759

ELBOW

8

7004713

ELBOW

9

7004683

ADAPTER

9

7004683

ADAPTER

10

7007906

O-RING

11

7005639

GUARD

12

7005479

HOSE

12

7005292

HOSE

13

7005506

HOSE PF1/4-1800L

13

7018659

HOSE, HYD

14

7005277

HOSE

15

7005508

HOSE

15

7018660

HOSE, HYD

16

7005478

HOSE

16

7005274

HOSE PF1/4-1180L

17

7005489

HOSE PF1/4-1100L

17

7018660

HOSE, HYD

18

7005337

HOSE PF1/4-1880L

19

7005479

HOSE

20

7005505

HOSE

20

7018661

HOSE, HYD

21

7006523

GUARD PROTECTOR
