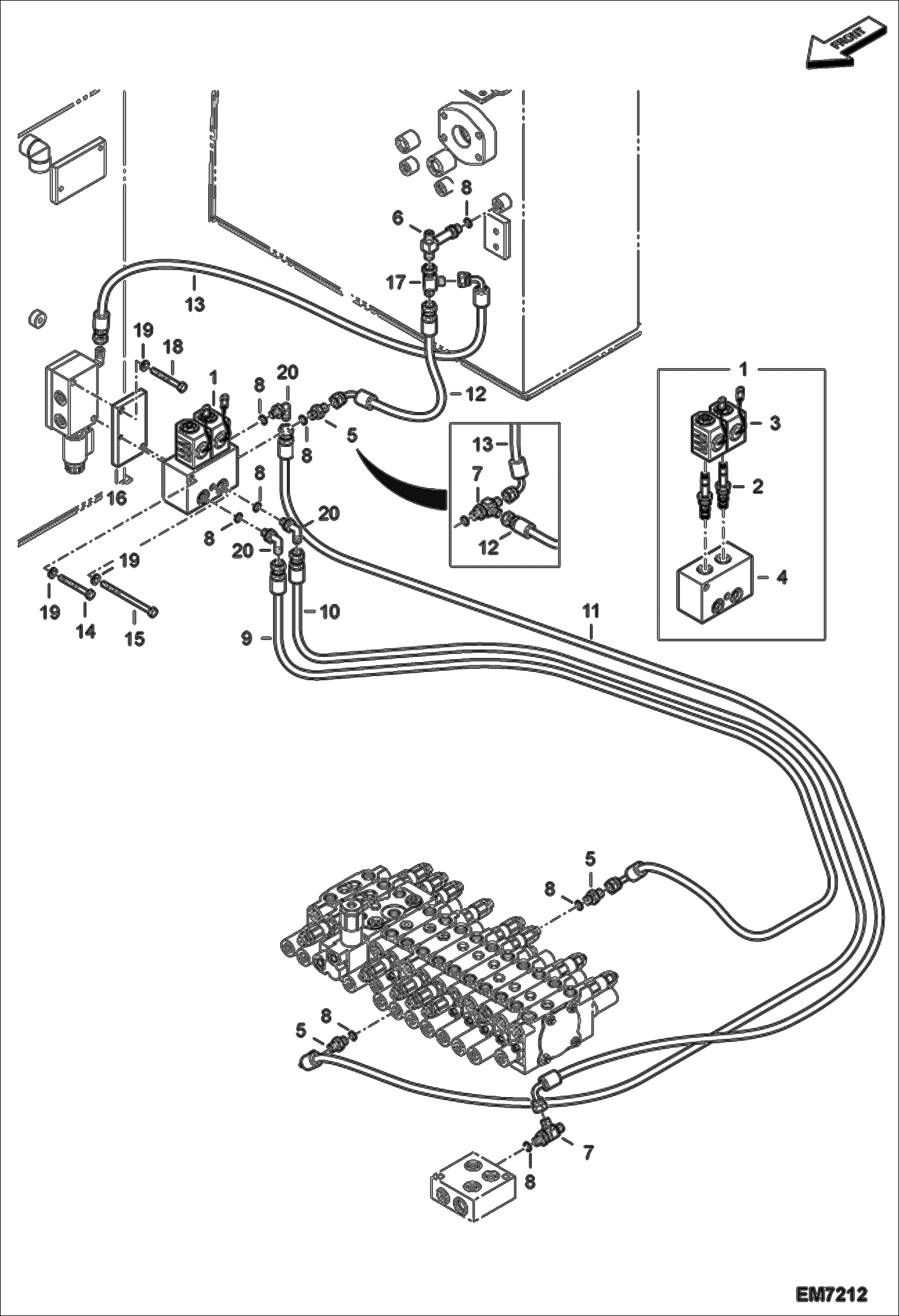

Запчасти Bobcat E55W HYDRAULIC PILOT CIRCUITRY (Two Way) HYDRAULIC SYSTEM

1

7004982

VALVE SOLENOID W/Ref. 2-4

2

7006824

SPOOL SOLENOID

3

7003849

COIL

4

BLOCK, SOLENOID VALVE NLA - Order Ref. 1

5

7004683

ADAPTER

5

7004683

ADAPTER

6

7004752

TEE

7

7004738

TEE

7

7004738

TEE

8

7007906

O-RING

9

7005337

HOSE PF1/4-1880L

10

7005345

HOSE PF1/4-2500L

11

7005318

HOSE, HYD

12

7005467

HOSE PF1/4-380L

12

7005349

HOSE 380L

13

7005336

HOSE 400L

13

7005344

HOSE

14

7007663

BOLT

15

7008296

BOLT, M8X1.25X120

16

7008279

PLATE

17

7003960

TEE UNION

18

7007662

BOLT

19

7007834

WASHER SPRING

20

7004713

ELBOW
