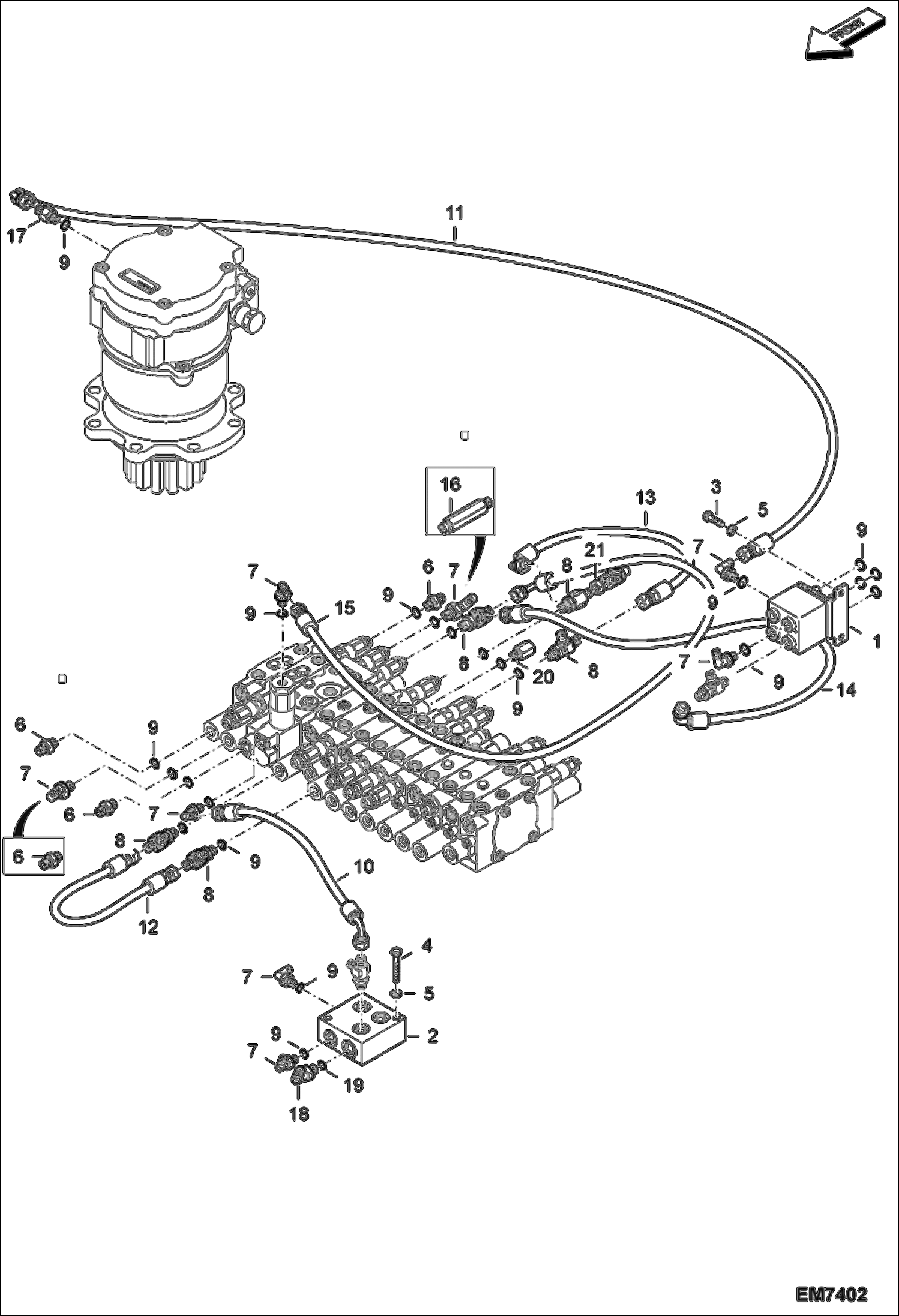

Запчасти Bobcat E55W HYDRAULIC PILOT CIRCUITRY (Slew Motor, Shuttle Valve) HYDRAULIC SYSTEM

1

7008274

VALVE, SHUTTLE

2

7005686

BLOCK

3

7007673

BOLT

4

7007658

BOLT

5

7007834

WASHER SPRING

6

7004683

ADAPTER

6

7004683

ADAPTER

6

7004683

ADAPTER

7

7004713

ELBOW

7

7004713

ELBOW

8

7004738

TEE

9

7007906

O-RING

10

7005308

HOSE

11

7005322

HOSE

12

7005492

HOSE

13

7008173

HOSE

14

7005377

HOSE

15

7005341

HOSE PF1/4-1200L

16

7004698

ADAPTER

17

7004678

ADAPTER

18

7004707

ELBOW

19

7007909

O-RING

20

7005554

REDUCER

21

7008275

VALVE, SHUTTLE
