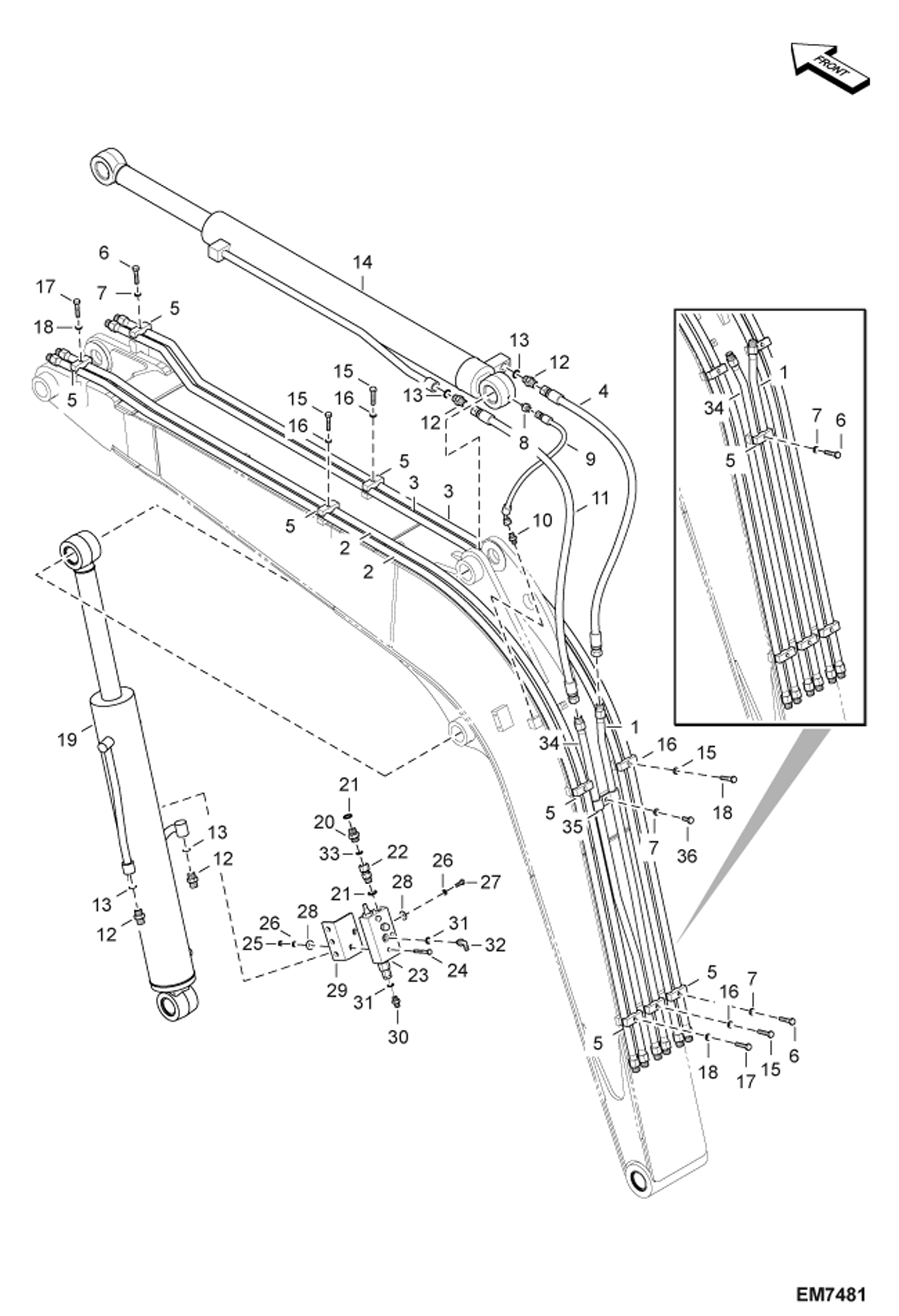

Запчасти Bobcat E55W HYDRAULIC CIRCUITRY (Boom) (Arm Cylinder) (Boom Cylinder) HYDRAULIC SYSTEM

1

TUBELINE NLA

1

7023681

TUBELINE

2

7005898

TUBELINE

3

7008053

TUBELINE

4

7005168

HOSE

5

7013257

CLAMP,PIPE Was 7005911 - A

5

7013257

CLAMP,PIPE

6

7007672

BOLT

6

7007672

BOLT

7

7007835

WASHER SPRING

8

7004669

ADAPTER

9

7005171

HOSE

9

7021827

HOSE, HYD

10

7004667

ADAPTER

11

7005164

HOSE

12

7004699

ADAPTER

13

7007911

O-RING

14

7019006

CYLINDER, ARM See Illustration ARM CYLINDER/ EX006143 Was 7005717 - A

15

7007672

BOLT

16

7007835

WASHER SPRING

17

7007672

BOLT

18

7007835

WASHER SPRING

19

7019007

CYLINDER, BOOM See Illustration BOOM CYLINDER/ EX006142 Was 7005867 - A

20

7004773

ADAPTER

21

7007911

O-RING

22

7005551

ADAPTER

23

7004987

VALVE LOCK

24

7007663

BOLT

25

7007796

NUT

26

7007834

WASHER SPRING

27

7007620

BOLT

28

7004470

WASHER PLAIN

29

7003969

BRACKET

30

7004683

ADAPTER

31

7007906

O-RING

32

7004713

ELBOW

33

7007959

O-RING

34

7023682

TUBELINE

35

7023683

CLAMP

36

7007627

BOLT M10X1.5X22
